989050 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) HYDRAULIC LIFT Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

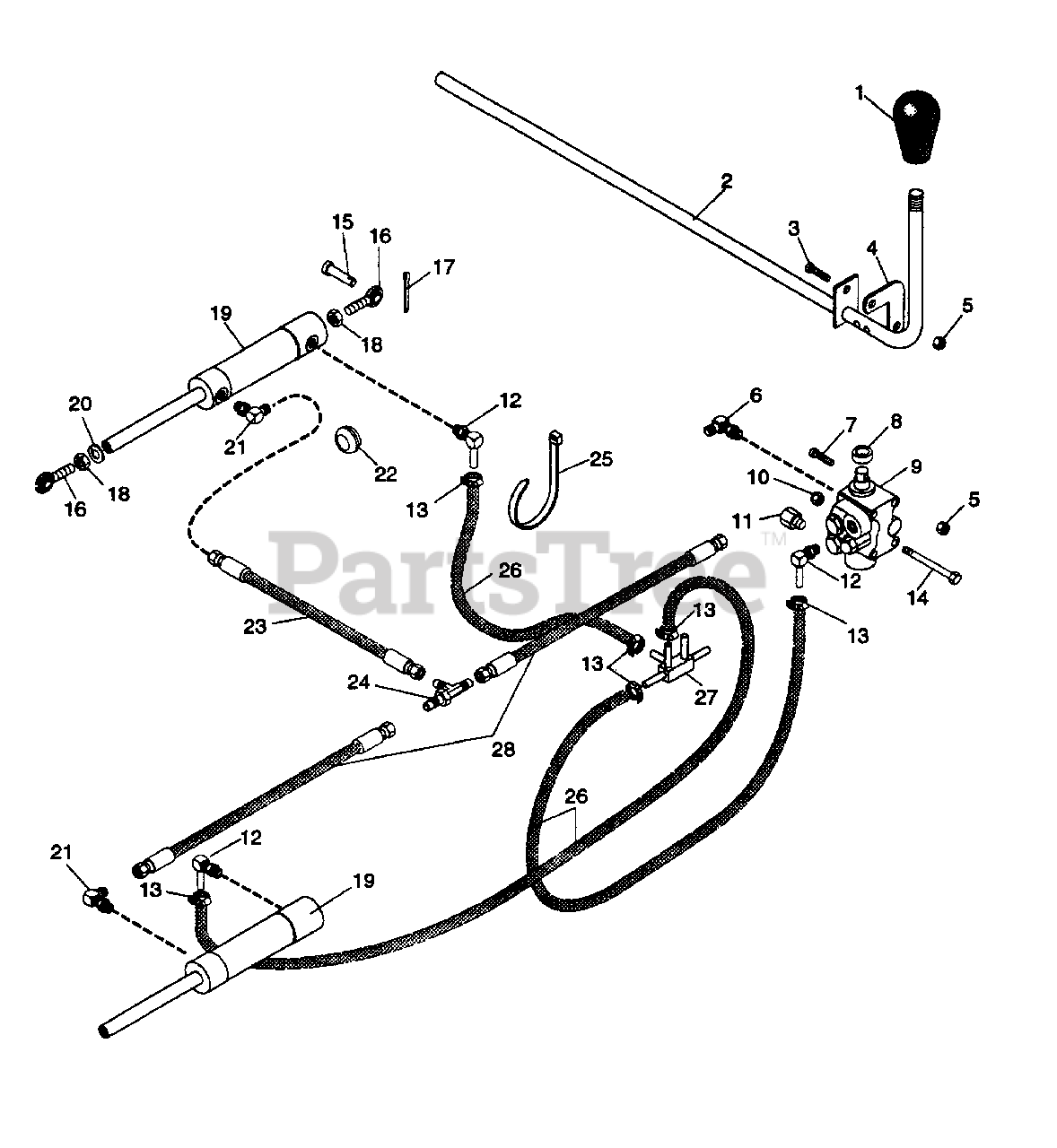

HYDRAULIC LIFT Parts Diagram

  • Title
1

Gravely 07522900

KNOB, PTO

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 08972600

WLDMT, LIFT LEVER

$

$

Not available

3

Gravely 06111100

SCR-MCH 10-24 X .625 P/HD

$0.99

$

In Stock, Qty 12

0

4

Gravely 08936900

ROD, HYD CONTROL
(Superseded to 09065000)

$7.99

$

Usually ships in 4-12 days

0

5

Gravely 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 08936400

ADPT 2503-6-4

$

$

Not available

7

Gravely 06113100

SCR-MCH 10-24 X 1.00 PHCR
(Superseded to 05901838)

$1.99

$

Usually ships in 4-12 days

0

8

Gravely 08984500

BUSH., S. 700 X 1.00 X .300 ST

$

$

Not available

9

Gravely 08901100

VLV, HYDRAULIC

$

$

Not available

10

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 07021600

PLUG .44-20

$

$

Not available

12

Gravely 07019700

FTG-ADPTR .562-18 ST THD

$6.99

$

Usually ships in 4-12 days

0

13

Gravely 06924300

HOSE CLAMP

$6.99

$

Usually ships in 4-12 days

0

14

Gravely 05934200

BLT-HEX .25-20 X 2.75
(Superseded to 05969900)

$

$

Not available

15

Gravely 06811300

PIN-CLEV .50 X 1.330
(Superseded to 06814700)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 08959600

ASM, ROD END RH

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 06701400

PIN-COTR .12 X 1.25 PL
(Superseded to 06712600)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 06504400

NUT-JAM .50-2-PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 08998900

CYL, LIFT

$

$

Not available

20

Gravely 06305100

WSHR-LOCK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 16

0

21

Gravely 08800800

ADPT 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

22

Gravely 07536800

GROMMET, 1.25

$12.99

$

Usually ships in 4-12 days

0

23

Gravely 08978300

ASM, HYDRAULIC HOSE

$

$

Not available

24

Gravely 07019200

ADPTR-BULKHEAD TEE .56-18

$24.99

$

Usually ships in 4-12 days

0

25

Gravely 07519900

TIE WRAP, BLACK

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 00921600

HOSE, HYDRAULIC

$11.99

$

Usually ships in 4-12 days

0

27

Gravely 07015700

FTG-MNFLD .38 X 1.50

$

$

Not available

28

Gravely 08978400

ASM, HYDRAULIC HOSE

$

$

Not available
