989050 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) HOOD ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

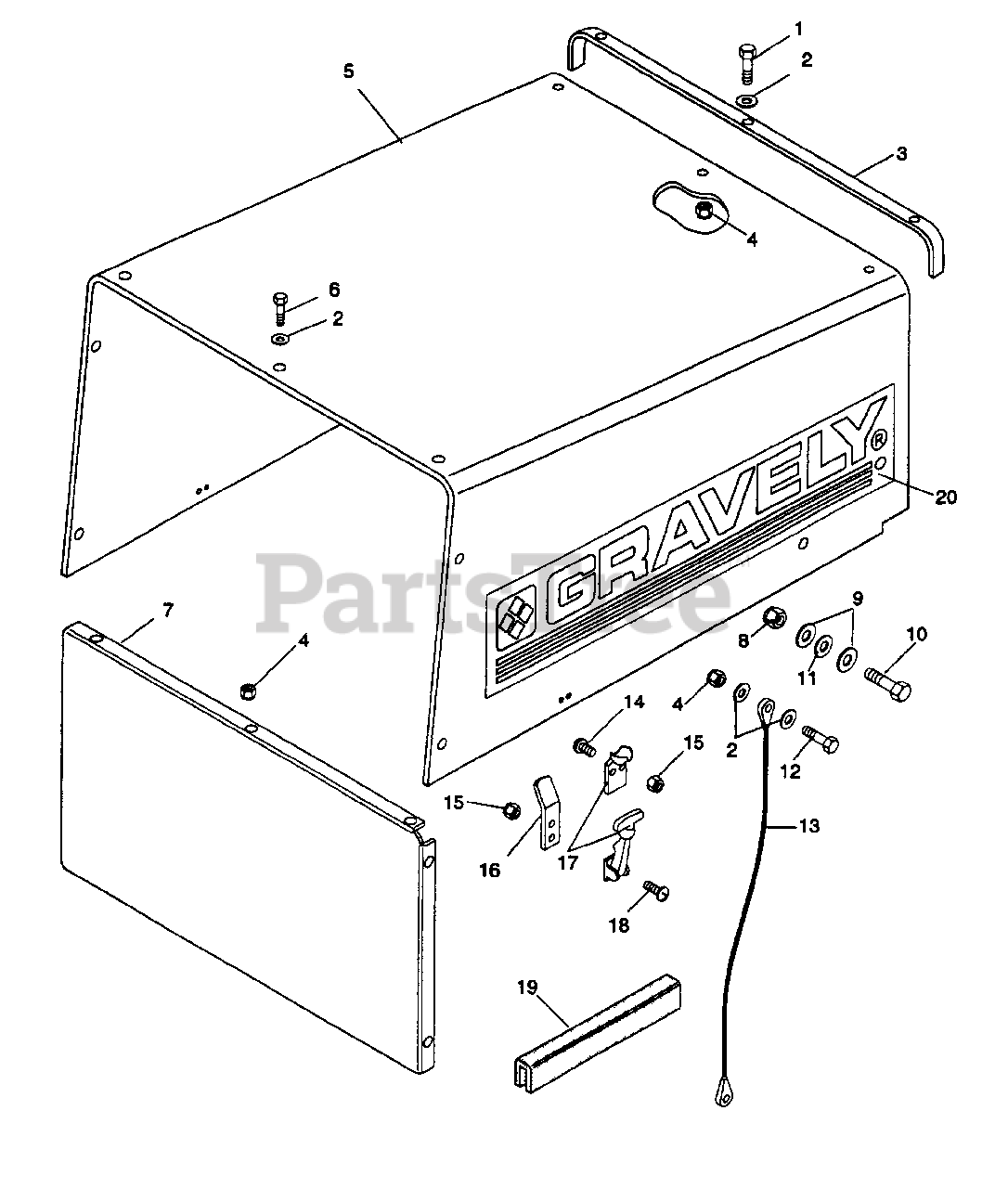

HOOD ASSEMBLY Parts Diagram

  • Title

1

Gravely 05908200

BLT-HEX .25-20 X .75 PL GR 5
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 06424900

WSHR-FL-STL .281 X .625 X .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 09013400

BR, HOOD

$

$

Not available

4

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

5

Gravely 09033200

HOOD

$

$

Not available

6

Gravely 05932000

BLT-HEX .25-20 X .63

$1.99

$

In Stock, only 1 left!

0

7

Gravely 09033300

PANEL, HOOD

$

$

Not available

8

Gravely 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

9

Gravely 06429300

WSHR-FL-STL .406 X .812 X .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 05932600

BLT-HEX .380-16 X .875

$2.49

$

In Stock, only 1 left!

0

11

Gravely 06433600

WSHR-FL-NY .375 X .75 X .060

$0.99

$

In Stock, Qty 11

0

12

Gravely 05934000

BLT-HEX .25-20 X .875

$1.99

$

Usually ships in 4-12 days

0

13

Gravely 06927100

CBL, HOOD

$14.99

$

In Stock, only 1 left!

0

14

Gravely 06113000

SCR-MCH 10-24 X .50 PHD

$1.99

$

In Stock, Qty 5

0

15

Gravely 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 08977300

PLT, GUIDE

$

$

Not available

17

Gravely 08969700

LATCH

$

$

Not available

18

Gravely 06111200

SCR-MCH 10-24 X .750 PHD

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 00918200

STRIP, COWL

$5.99

$

Usually ships in 4-12 days

0

20

Gravely 07703800

GRAVELY NAME/LOGO/STRIPE DECAL

$

$

Not available

NS

Gravely 05216700

DECAL, E-SYSTEM WARNING

$9.99

$

Usually ships in 4-12 days

0

NS

Gravely 05213500

DECAL, MAINTENANCE
(Superseded to 07716900)

$

$

Not available
