989050 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) FOUR WHEEL DRIVE KIT Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

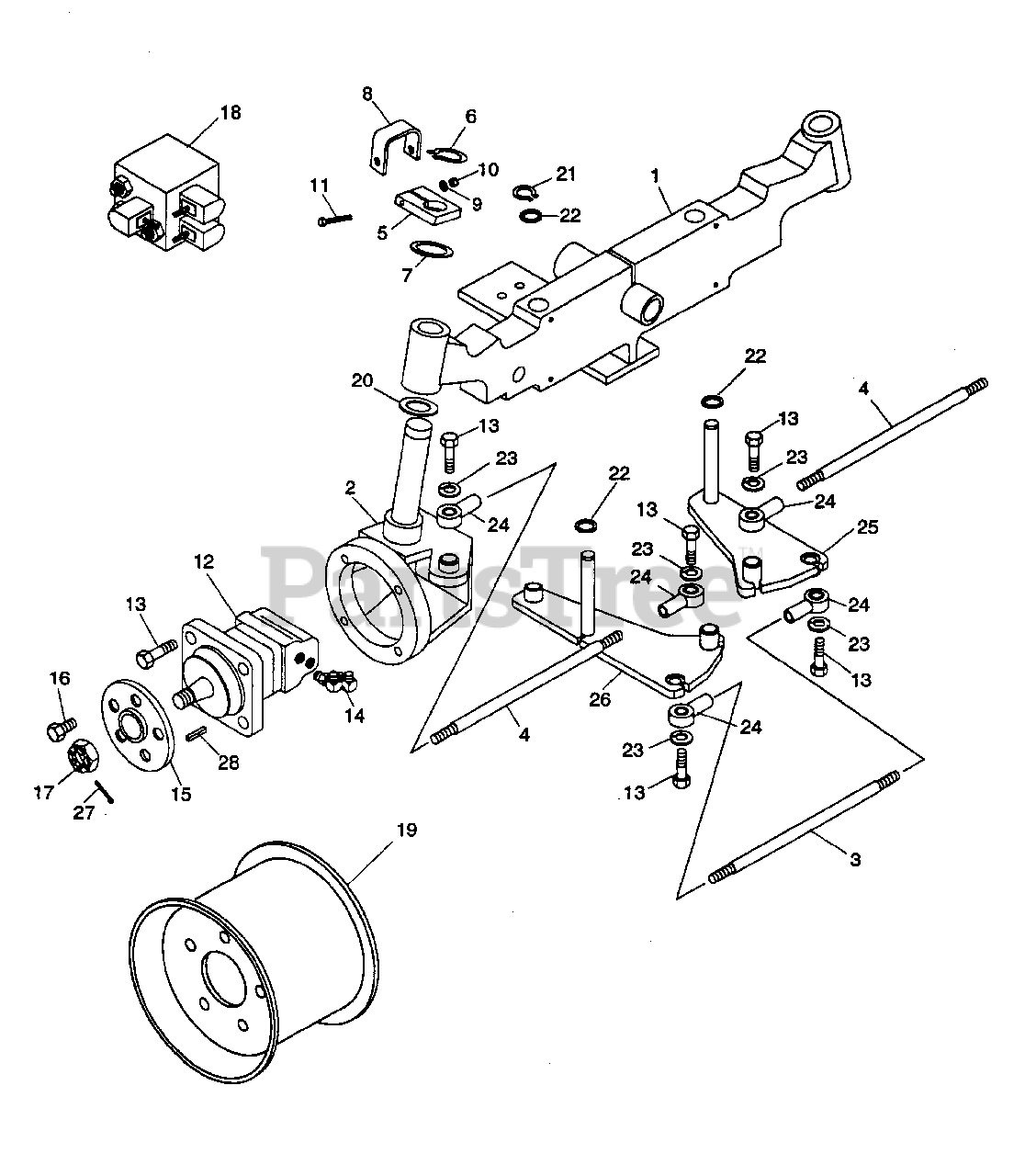

FOUR WHEEL DRIVE KIT Parts Diagram

  • Title

1

Gravely 08904000

Axle, Weldment

$

$

Not available

2

Gravely 08993200

Spindle Wldmt, R.H.

$

$

Not available

2

Gravely 09016800

Spindle Wldmt, L.H.

$

$

Not available

3

Gravely 09016900

Tie Rod

$75.99

$

Usually ships in 4-12 days

0

4

Gravely 09017200

Tie Rod

$

$

Not available

5

Gravely 09017300

Clamp Tube Support

$

$

Not available

6

Gravely 05702000

Rg-Rtng-Ext 1.250x.050

$

$

Not available

7

Gravely 06434600

Wshr-Thrst 1.27x2.25x18 Ga

$

$

Not available

8

Gravely 09017400

Bracket Hose Loop

$5.99

$

Usually ships in 4-12 days

0

9

Gravely 06422400

Wshr-Fl-Stl .250x.484x.047

$

$

Not available

10

Gravely 06506600

Nut-Lk-Nyl .250-20 Pl
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

11

Gravely 05934200

Blt-Hex .25-20x2.75
(Superseded to 05969900)

$

$

Not available

12

Gravely 09017500

Wheel Motor
(Superseded to 09045600)

$956.99

$

Usually ships in 4-12 days

0

13

Gravely 05920000

Blt-Hex .50-13x1.50 Pl Gr 5
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

14

Gravely 07018400

Fitting, Hydrostat Adapter
(Superseded to 07025800)

$13.99

$

In Stock, only 2 left!

0

15

Gravely 09017600

Hub

$

$

Not available

16

Gravely 09301200

Wheel Bolt Dexter 7-40
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

17

Gravely 06513100

Nut-Sl 1.0-14

$5.99

$

Usually ships in 4-12 days

0

18

Gravely 09017800

Slope Control Valve

$1876.99

$

Usually ships in 4-12 days

0

19

Gravely 07136400

Wheel

$

$

Not available

20

Gravely 06434700

Wshr-Thrst 1.27x2.25x.156

$

$

Not available

21

Gravely 05704900

Rg-Rtng-Ext .750x.078
(Superseded to 05714600)

$2.49

$

In Stock, Qty 5

0

22

Gravely 06434800

Wshr-Thrst 1.00x1.56x.125

$

$

Not available

23

Gravely 06305100

Wshr-Lock .50 Reg.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 16

0

24

Gravely 09034200

Rod End, L.H. 1/2-20
(Superseded to 08763800)

$

$

Not available

24

Gravely 09034300

Rod End, R.H. 1/2-20
(Superseded to 08763700)

$56.99

$

Usually ships in 4-12 days

0

25

Gravely 09017900

Steering Arm Weldment, R.H.

$

$

Not available

26

Gravely 09018000

Steering Arm Weldment, L.H.

$

$

Not available

27

Gravely 06704600

Pin-Cotr .12x2.0

$

$

Not available

28

Gravely 06609800

Key-Sq .313x1.00

$3.99

$

Usually ships in 4-12 days

0

NS

Gravely 09018100

Assembly, Hydraulic Hose

$

$

Not available

NS

Gravely 09018400

Assembly, Hydraulic Hose

$

$

Not available

NS

Gravely 09025600

Switch, Slope Control
(Superseded to 03110700)

$39.99

$

Usually ships in 4-12 days

0

NS

Gravely 09030800

Bracket, Switch

$5.99

$

Usually ships in 4-12 days

0

NS

Gravely 06908200

Clamp, Cushioned Steel

$5.99

$

Usually ships in 4-12 days

0

NS

Gravely 09032200

Nut, Hex Special

$

$

Not available

NS

Gravely 05900400

Blt-Hex .38-16x1.00 Pl
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

NS

Gravely 09034400

Wire Assembly

$

$

Not available

NS

Gravely 09034500

Wire Assembly

$

$

Not available

NS

Gravely 09034600

Wire Assembly

$

$

Not available

NS

Gravely 09034700

Wire Assembly

$

$

Not available

NS

Gravely 09034900

Wire Assembly

$

$

Not available

NS

Gravely 09035900

Power Switch, Four Wheel Drive

$26.99

$

Usually ships in 4-12 days

0

NS

Gravely 07020400

Fitting

$

$

Not available

NS

Gravely 58900800

Repair Kit, Eaton 2000 Motor

$

$

Not available
