989045 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) HYDRAULIC LIFT Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

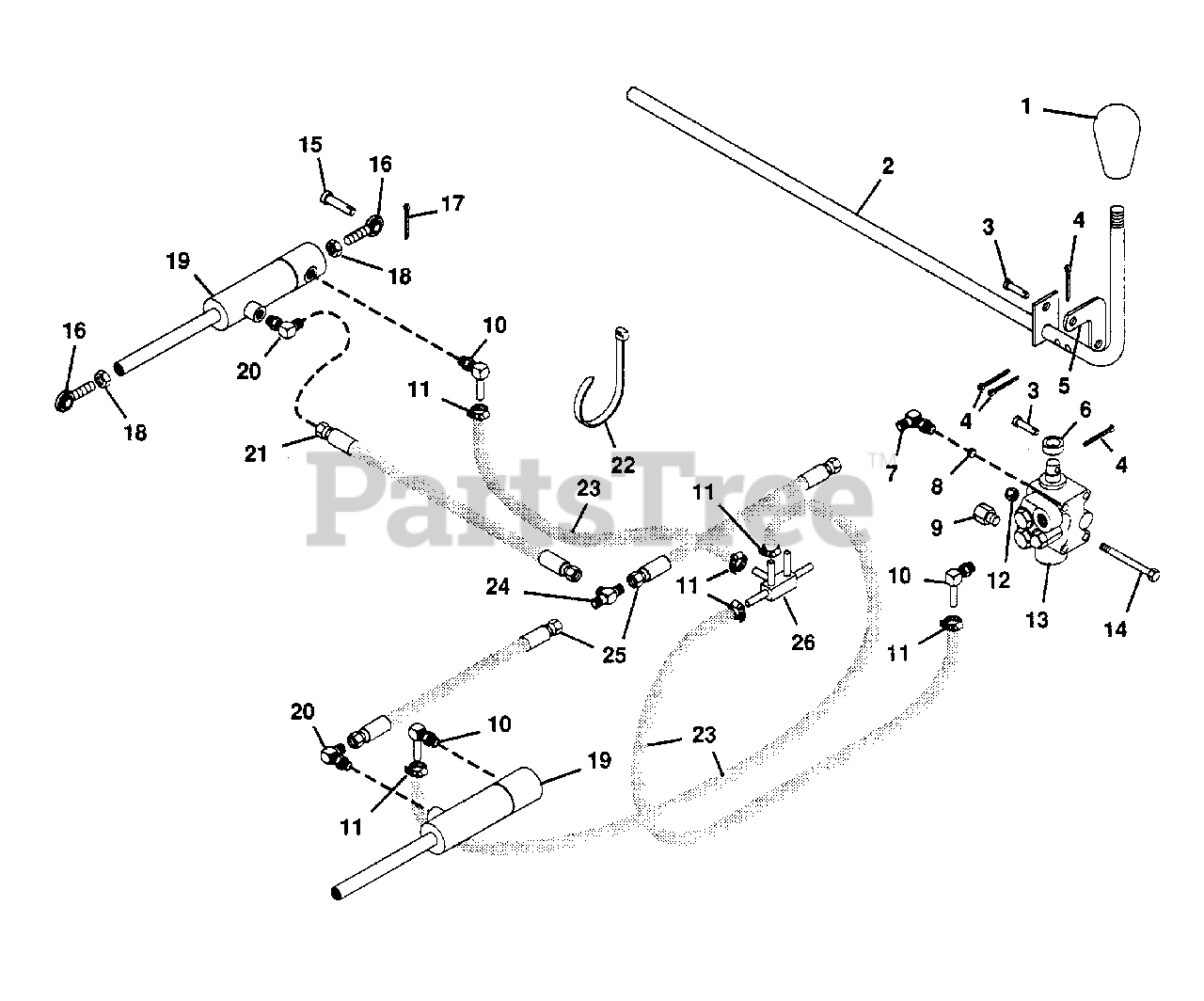

HYDRAULIC LIFT Parts Diagram

  • Title
1

Gravely 032659

Knob, PTO
(Superseded to 07522900)

$21.99

$

Usually ships in 4-12 days

0

2

Gravely 045940

Weldment, Lift Lever
(Superseded to 08972600)

$

$

Not available

3

Gravely 040970

Pin, Clevis
(Superseded to 06810100)

$2.99

$

Usually ships in 4-12 days

0

4

Gravely 121222

Pin, Cotter .094x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

5

Gravely 041237

Rod, Hydraulic Control
(Superseded to 09065000)

$7.99

$

Usually ships in 4-12 days

0

6

Gravely 048587

Bush., St. .700x1.00x.300 Stl.
(Superseded to 08984500)

$

$

Not available

7

Gravely 040723

Adapter
(Superseded to 08936400)

$

$

Not available

8

Gravely 048962

Plate, Flow Restriction
(Superseded to 20929700)

$

$

Not available

9

Gravely 021716

Plug, PH 05PO-4
(Superseded to 07021600)

$

$

Not available

10

Gravely 045144

Adapter, 4601-6-6
(Superseded to 07019700)

$6.99

$

Usually ships in 4-12 days

0

11

Gravely 032045

Clamp, Hose
(Superseded to 06924300)

$6.99

$

Usually ships in 4-12 days

0

12

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

13

Gravely 018825

Valve, Hydraulic
(Superseded to 08901100)

$

$

Not available

14

Gravely 180050

Bolt, Hex 1/4-20x2.75
(Superseded to 05969900)

$

$

Not available

15

Gravely 023682

Pin, Clevis .50x1.330
(Superseded to 06814700)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 044950

Assembly, Rod End R.H.
(Superseded to 08959600)

$38.99

$

Usually ships in 4-12 days

0

17

Gravely 120123

Pin, Cotter .125x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 124934

Nut, Jam 1/2-20
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

19

Gravely 044583

Cylinder, Steering
(Superseded to 04935800)

$559.99

$

In Stock, only 1 left!

0

20

Gravely 018828

Adapter, PH 2503-6-6
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

21

Gravely 046385

Assembly, Hydraulic Hose
(Superseded to 08978300)

$

$

Not available

22

Gravely 041634

Tie Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

23

Gravely 035636

Hose, Hydraulic
(Superseded to 00921600)

$11.99

$

Usually ships in 4-12 days

0

24

Gravely 021799

Adapter Tee
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

25

Gravely 046386

Assembly, Hydraulic Hose
(Superseded to 08978400)

$

$

Not available

26

Gravely 045291

Manifold
(Superseded to 07015700)

$

$

Not available
