989037 - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler, Gear (SN: 000101 & Above) WHEELS Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler, Gear

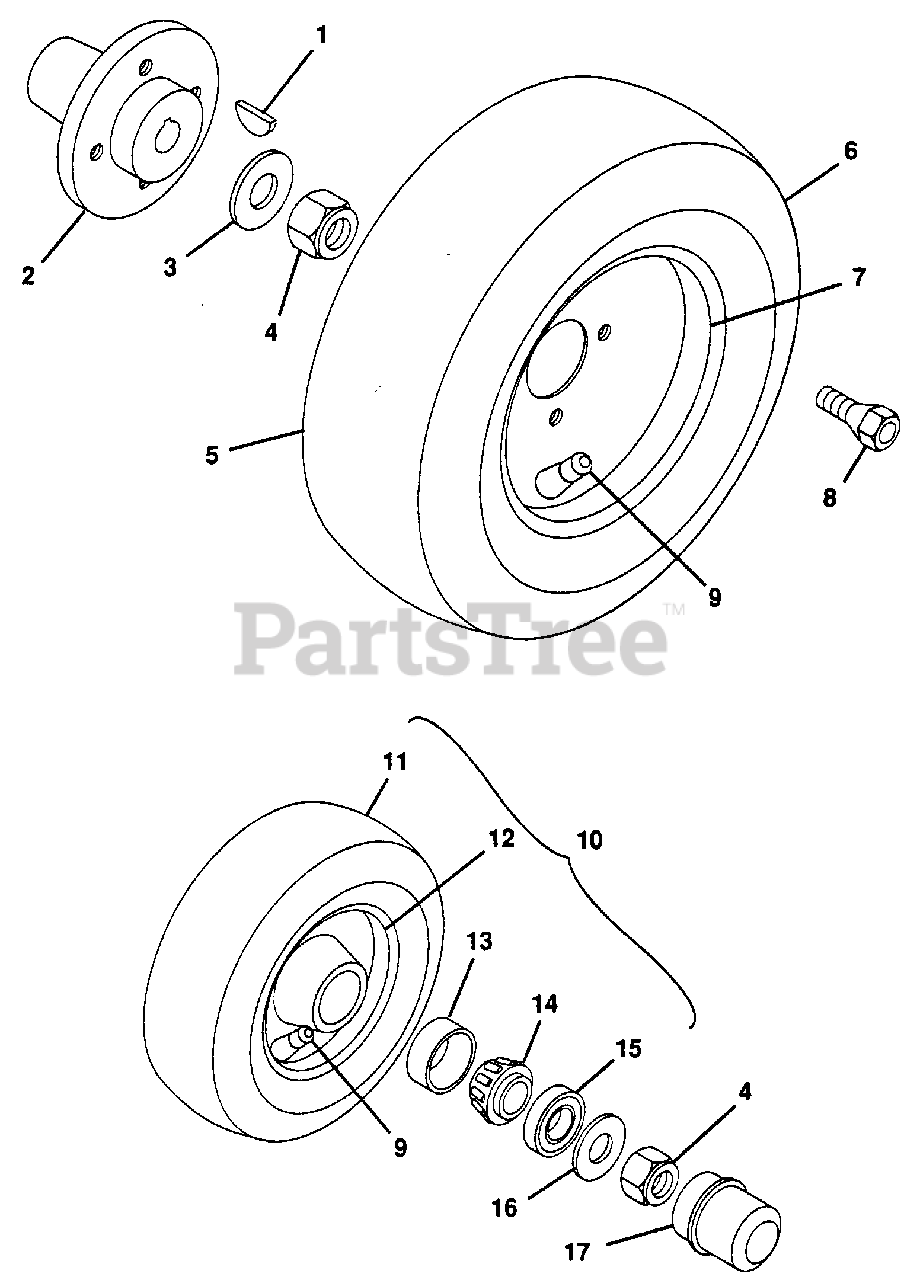

WHEELS Parts Diagram

  • Title

1

Gravely 187184

Key, Woodruff .250x2.125 Soft
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

2

Gravely 035625

Hub, OFC
(Superseded to 08922200)

$

$

Not available

3

Gravely 131000

Washer, Flat .813x2.0x.148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 456007

Nut, Lock 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

5

Gravely 035957

Wheel, Front Pro Master
(Superseded to 53508300)

$

$

Not available

6

Gravely 034958

Tire, 20x10.00-10
(Superseded to 07134600)

$

$

Not available

7

Gravely 034486

Rim, Pro Master
(Superseded to 07129000)

$

$

Not available

8

Gravely 034597

Stud, Wheel
(Superseded to 07000143)

$3.49

$

In Stock, Qty 9

0

9

Gravely 011191

Assembly, Valve Stem
(Superseded to 07520000)

$2.49

$

In Stock, Qty 5

0

10

Gravely 038118

Wheel, Pro Master Rear
(Superseded to 07129500)

$

$

Not available

11

Gravely 038917

Tire, 16x4.80-8
(Superseded to 07132700)

$

$

Not available

12

Gravely 038918

Wheel
(Superseded to 20655300)

$

$

Not available

13

Gravely 038922

Bearing, Cup
(Superseded to 05407000)

$17.99

$

In Stock, Qty 20+

0

14

Gravely 038921

Bearing, Cone
(Superseded to 05406900)

$18.99

$

In Stock, Qty 20+

0

15

Gravely 038920

Seal, Wheel
(Superseded to 20655500)

$11.99

$

Usually ships in 4-12 days

0

16

Gravely 131017

Washer, Flat .812x1.496x.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 038919

Cap
(Superseded to 20655400)

$10.99

$

In Stock, Qty 20+

0

Gravely 046063

Wheel, Optional Rear 16x7.50-8
(Superseded to 07119600)

$216.99

$

Usually ships in 4-12 days

0
