989037 - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler, Gear (SN: 000101 & Above) NUMBER ONE SHAFT - FORWARD CLUTCH Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler, Gear

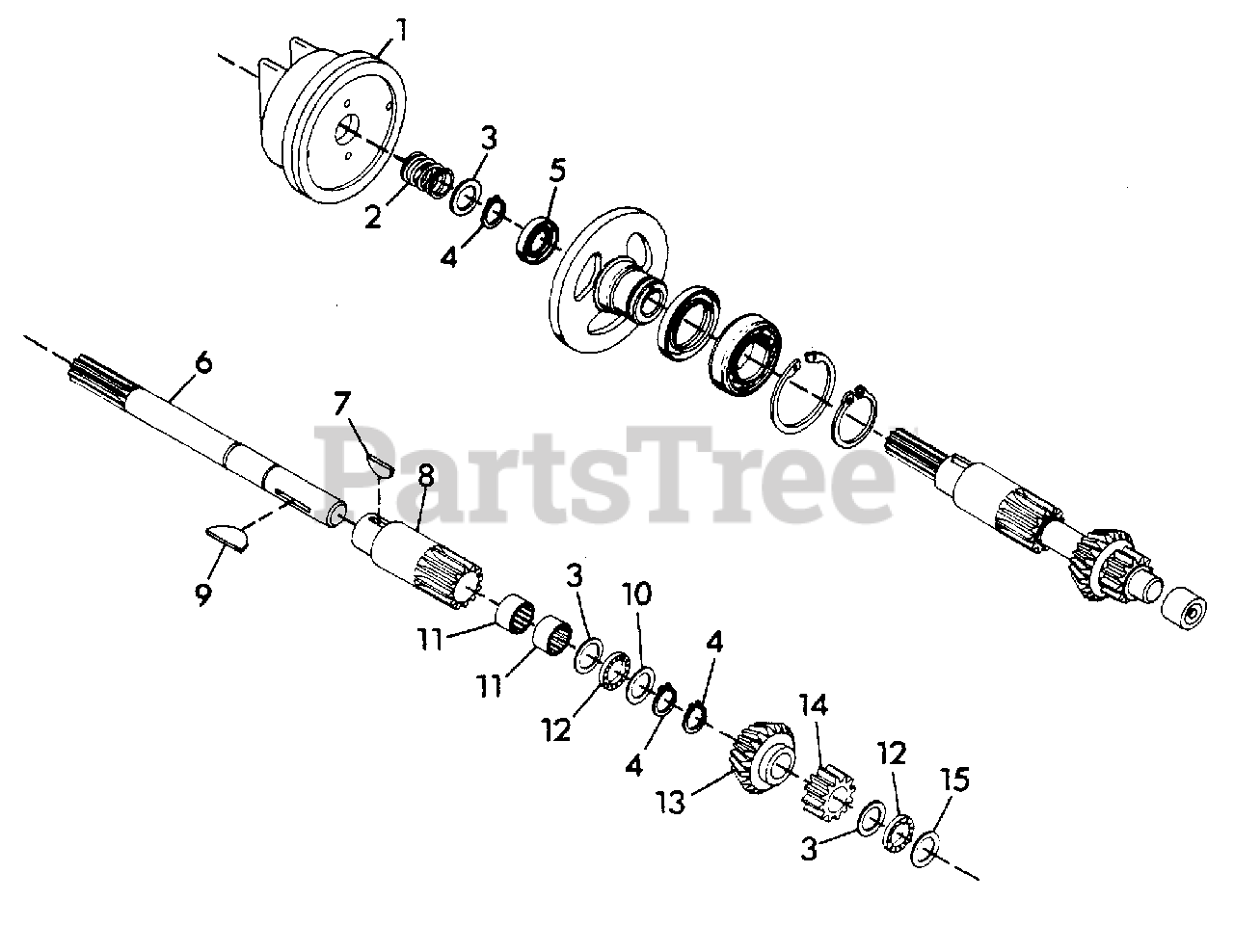

NUMBER ONE SHAFT - FORWARD CLUTCH Parts Diagram

  • Title

1

NUMBER 11 - FWD-REV CLUTCH ASSEMBLY

$

$

Not available

2

Gravely 020444

SPRING, COMP. TYPE 1.0X.80X36 LB/IN
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

3

Gravely 011223

RACE, BEARING THRUST .752X1.240X.03
(Superseded to 06413400)

$3.49

$

In Stock, only 2 left!

0

4

Gravely 011135

RING, RETAINING .750 SHAFT
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

5

Gravely 018035

SEAL, OIL .750X1.625X.250
(Superseded to 05614600)

$12.99

$

Usually ships in 4-12 days

0

6

Gravely 034731

SHAFT, SPLINED FORWARD CLUTCH
(Superseded to 21233300)

$

$

Not available

7

Gravely 431787

KEY, WOODRUFF .187X.625 HARD #61
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

8

Gravely 035439

GEAR
(Superseded to 08915500)

$

$

Not available

9

Gravely 117989

KEY, WOODRUFF .187X1.25 HARD #19
(Superseded to 06608100)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 006742

RACE, BEARING THRUST .060
(Superseded to 06431900)

$9.49

$

Usually ships in 4-12 days

0

11

Gravely 017949

BEARING, NEEDLE .75X1.00X.50
(Superseded to 05420400)

$20.99

$

Usually ships in 4-12 days

0

12

Gravely 006741

BEARING, NEEDLE THRUST
(Superseded to 05410400)

$12.99

$

In Stock, Qty 7

0

13

Gravely 045585

GEAR, BEVEL
(Superseded to 08790100)

$

$

Not available

14

Gravely 018003

GEAR, 10 DP 16 TEETH X .750
(Superseded to 08705100)

$6.99

$

Usually ships in 4-12 days

0

15

Gravely 014998

RACE, BEARING THRUST .095
(Superseded to 06413300)

$5.99

$

In Stock, only 2 left!

0
