989037 - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler, Gear (SN: 000101 & Above) NUMBER EIGHT SHAFT - DIFFERENTIAL ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler, Gear

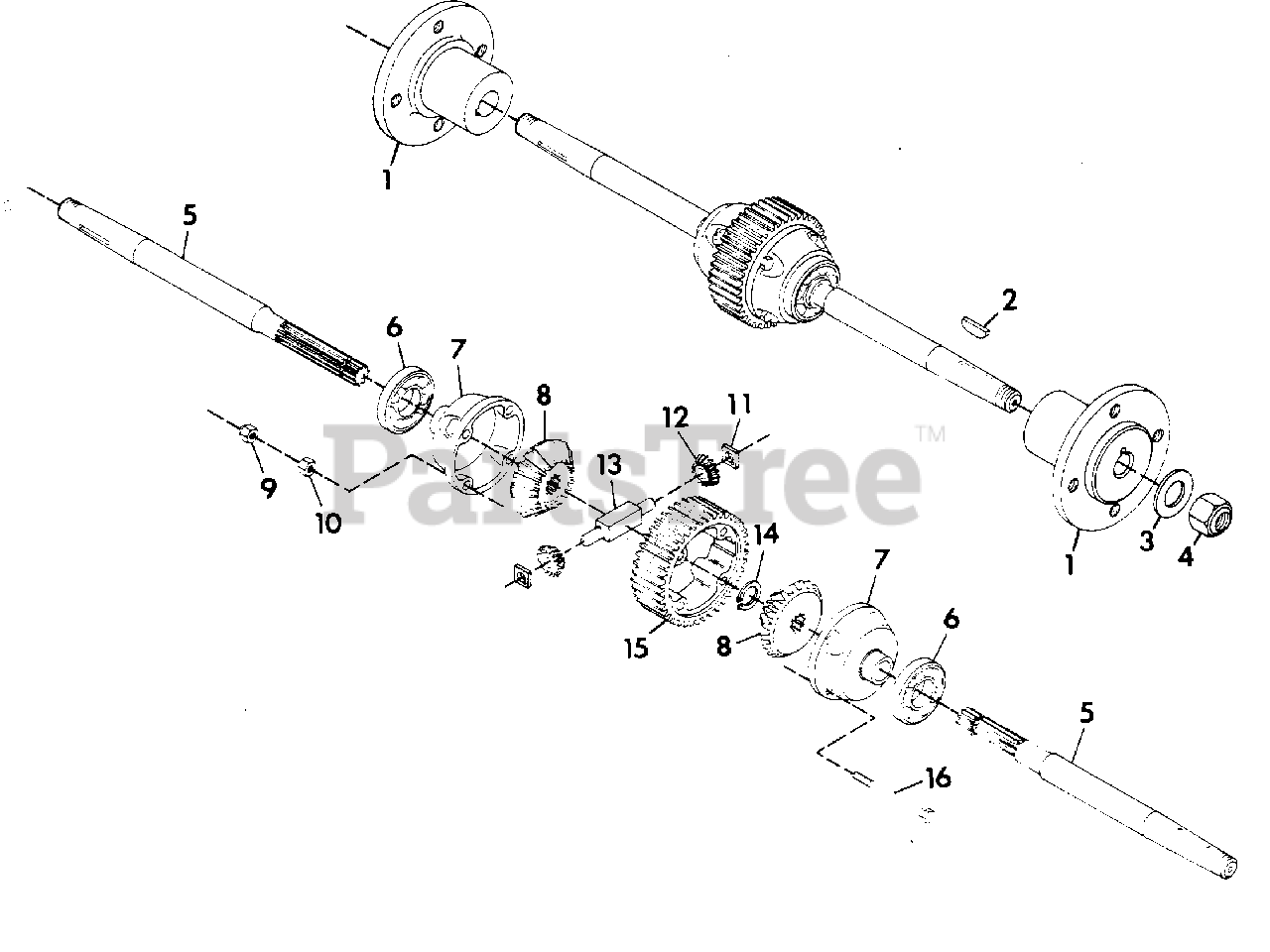

NUMBER EIGHT SHAFT - DIFFERENTIAL ASSEMBLY Parts Diagram

  • Title

1

Gravely 035625

HUB, OFC 60"
(Superseded to 08922200)

$

$

Not available

2

Gravely 187184

KEY, WOODRUFF .250X2.125 SOFT
(Superseded to 06609000)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 131000

WASHER, FLAT .813X2.0X.148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

4

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

5

Gravely 035410

AXLE
(Superseded to 21239300)

$

$

Not available

6

Gravely 017984

BEARING, BALL 1.378X2.834X.669
(Superseded to 05420800)

$

$

Not available

7

Gravely 019956

CAP, DIFFERENTIAL END
(Superseded to 21129000)

$

$

Not available

8

Gravely 019953

GEAR, BEVEL
(Superseded to 21128900)

$

$

Not available

9

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

10

Gravely 020514

NUT, HEX 5/16-18 GR. 8
(Superseded to 06521400)

$3.49

$

Usually ships in 4-12 days

0

11

Gravely 012667

BLOCK, DRIVE
(Superseded to 08779000)

$10.99

$

Usually ships in 4-12 days

0

12

Gravely 019952

PINION, BEVEL
(Superseded to 08717100)

$

$

Not available

13

Gravely 019954

PIN, SPIDER PINION
(Superseded to 08717200)

$5.99

$

Usually ships in 4-12 days

0

14

Gravely 017980

RING, RETAINING
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

15

Gravely 023531

GEAR, FINAL DRIVE
(Superseded to 08725400)

$

$

Not available

16

Gravely 023712

BOLT, HEX 5/16-18X2.75 GR. 8
(Superseded to 05941700)

$3.99

$

Usually ships in 4-12 days

0
