989031 - Gravely Pro-Master Zero-Turn Mower, 18hp Kohler, Gear (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 18hp Kohler, Gear

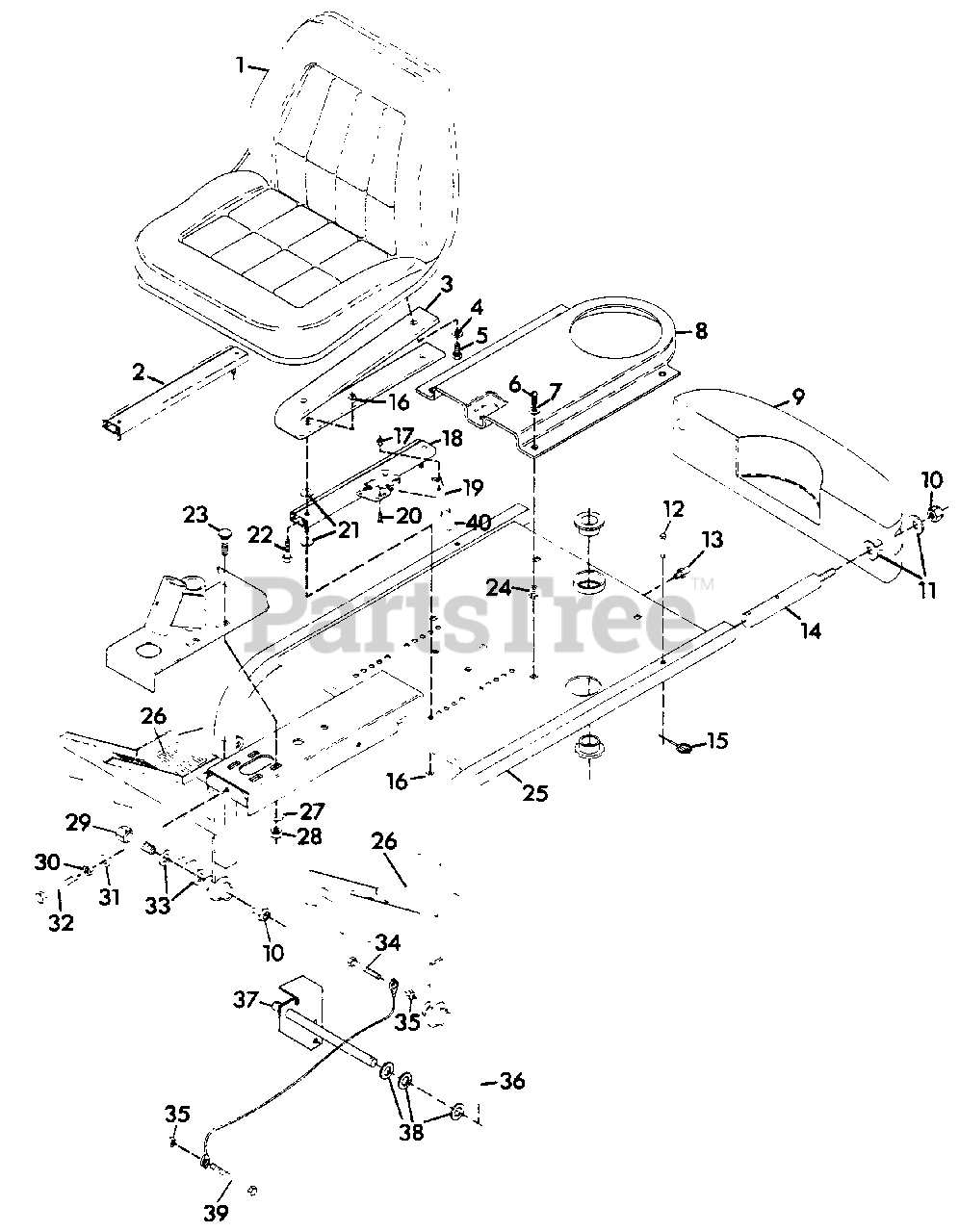

MAIN FRAME Parts Diagram

  • Title
1

Gravely 046220

SEAT, DELUXE
(Superseded to 08975800)

$283.99

$

Usually ships in 4-12 days

0

2

Gravely 035642

ADJUSTER, SEAT
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

3

Gravely 042175

SPRING, SEAT
(Superseded to 21263051)

$103.99

$

In Stock, only 1 left!

0

4

Gravely 120214

WASHER, LOCK 5/16
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 167260

SCREW, TAPPING 1/4-20X.625 P/HD
(Superseded to 07410400)

$2.49

$

In Stock, Qty 5

0

7

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 041949

COVER, CHAIN
(Superseded to 09032000)

$

$

Not available

9

Gravely 042021

WEIGHT, PRO MASTER-60
(Superseded to 08940253)

$

$

Not available

10

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

11

Gravely 131000

WASHER, FLAT .813X2.0X.148
(Superseded to 06401201)

$3.99

$

In Stock, only 3 left!

0

12

Gravely 022113

PIN, CLEVIS 3/8X2.62
(Superseded to 06811100)

$

$

Not available

13

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

14

Gravely 042077

SHAFT, WEIGHT
(Superseded to 08940300)

$

$

Not available

15

Gravely 023468

PIN, KLIK
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

18

Gravely 035641

ADJUSTER, SEAT W/LATCH
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

19

Gravely 035643

HANDLE, SEAT ADJUSTER
(Superseded to 08650800)

$

$

Not available

20

Gravely 159929

SCREW, MACHINE 10-24X.625 P/HD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

21

Gravely 035670

SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

22

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 12

0

23

Gravely 120915

BOLT, 3/8-16X1.00 RD HD SQ NK

$

$

Not available

24

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 041955

WELDMENT, FRAME
(Superseded to 08940100)

$387.99

$

Usually ships in 4-12 days

0

26

Gravely 041936

COVER, FOOTBOARD
(Superseded to 09035100)

$

$

Not available

27

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

29

Gravely 271778

BOLT, HEX 3/4-10X3.75
(Superseded to 05939700)

$

$

Not available

30

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 014718

BOLT, HEX SPECIAL 3/8-16X3.00
(Superseded to 05901815)

$3.49

$

In Stock, only 1 left!

0

33

Gravely 035640

WASHER, FLAT .812X1.469X.130
(Superseded to 06427600)

$5.99

$

In Stock, only 1 left!

0

34

Gravely 181621

BOLT, HEX 5/16-24X2.25
(Superseded to 05937100)

$

$

Not available

35

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

36

Gravely 120123

PIN, COTTER .125X1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 037042

WELDMENT, LIFT BRACKET
(Superseded to 08924900)

$

$

Not available

38

Gravely 421879

WASHER, FLAT .656X1.250X.100
(Superseded to 06430300)

$3.99

$

Usually ships in 4-12 days

0

39

Gravely 189323

BOLT, HEX 5/16-24X3.50
(Superseded to 05938700)

$

$

Not available

40

Gravely 043192

TIP, LEVER
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

NS

Gravely 035478

DECAL, PRO MASTER-60
(Superseded to 05209400)

$

$

Not available

NS

Gravely 042088

DECALS, PRO MASTER 18 HP
(Superseded to 05210400)

$

$

Not available

NS

Gravely 042066

DECALS, PRO MASTER 20 HP
(Superseded to 05210300)

$

$

Not available

NS

Gravely 024588

DECAL, GRAVELY LOGO
(Superseded to 05201500)

$22.99

$

Usually ships in 4-12 days

0

NS

Gravely 040046

DECAL, AMERICA
(Superseded to 03327700)

$

$

Not available

NS

Gravely 044289

DECAL, HI-SPEED
(Superseded to 05212100)

$

$

Not available
