989027 - Gravely Pro-Master Zero-Turn Mower, 19hp Kohler, Gear (SN: 000101 & Above) HYDRAULIC SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 19hp Kohler, Gear

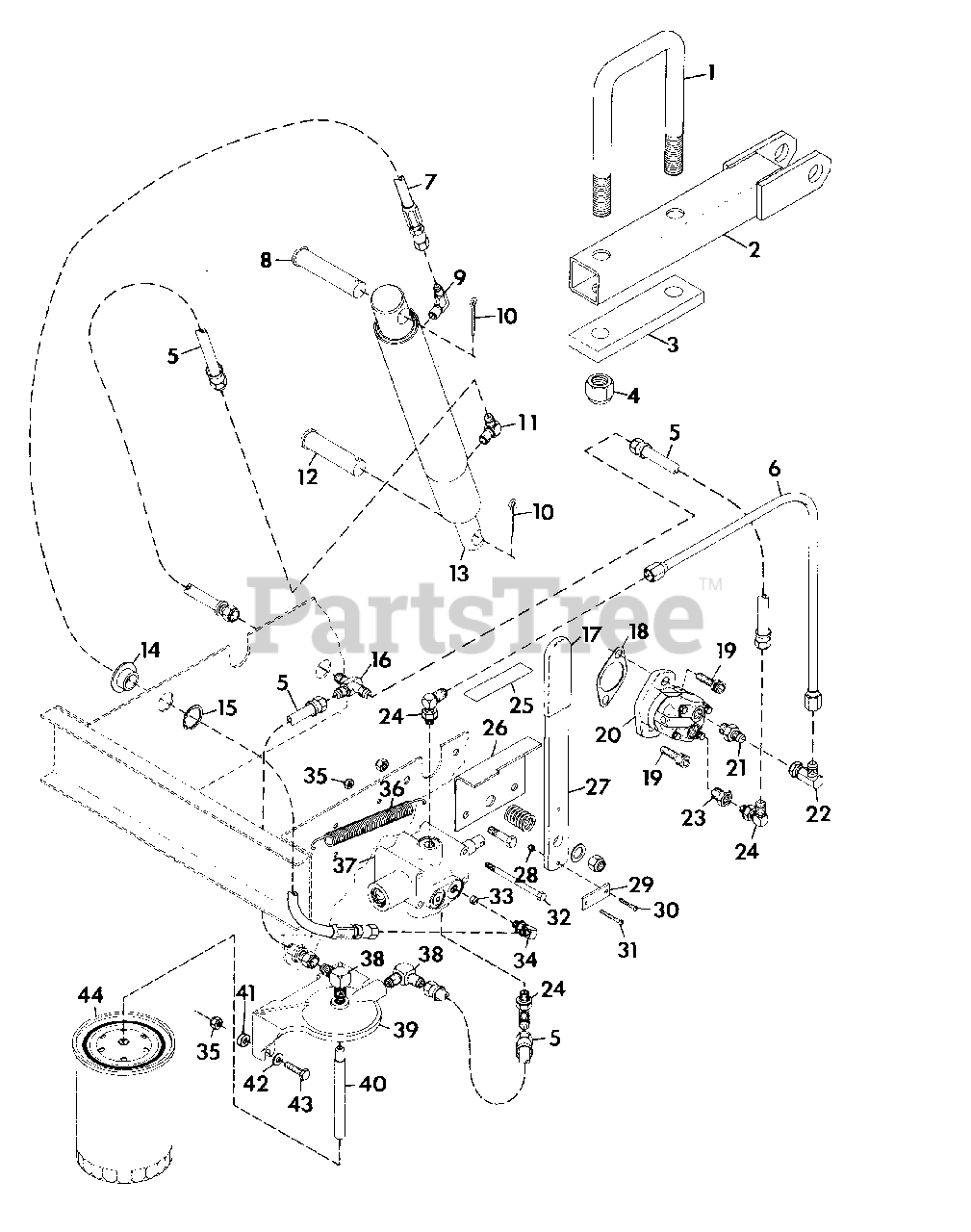

HYDRAULIC SYSTEM Parts Diagram

  • Title

1

Gravely 035516

U-Bolt
(Superseded to 09027700)

$

$

Not available

2

Gravely 038758

Arm, Lift
(Superseded to 08929000)

$

$

Not available

3

Gravely 035632

Plate, Axle
(Superseded to 08922600)

$

$

Not available

4

Gravely 272739

Nut, Lock 5/8-18
(Superseded to 06528000)

$

$

Not available

5

Gravely 038210

Hose, Hydraulic
(Superseded to 08927700)

$

$

Not available

6

Gravely 035552

Line, Hydraulic Pump to Valve
(Superseded to 08921300)

$

$

Not available

7

Gravely 035549

Hose, Hydraulic
(Superseded to 08921200)

$

$

Not available

8

Gravely 035525

Pin, Clevis
(Superseded to 06810600)

$

$

Not available

9

Gravely 018832

Adaptor
(Superseded to 08901300)

$

$

Not available

10

Gravely 120123

Pin, Cotter .125x1.25
(Superseded to 06700212)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 035645

Adaptor, Hydraulic
(Superseded to 07021900)

$

$

Not available

12

Gravely 035524

Pin, Clevis
(Superseded to 06810400)

$

$

Not available

13

Gravely 035453

Cylinder, Hydraulic
(Superseded to 08916251)

$

$

Not available

14

Gravely 010174

Bushing, Nylon .76x1x.6 Flange
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

15

Gravely 020273

Ring, Retaining Internal Tooth
(Superseded to 05717300)

$

$

Not available

16

Gravely 021799

Adaptor, Tee
(Superseded to 07021500)

$30.99

$

Usually ships in 4-12 days

0

17

Gravely 027158

Grip, Handle
(Superseded to 07522100)

$

$

Not available

18

Gravely 018422

Gasket, Cover Plate
(Superseded to 08702700)

$15.99

$

In Stock, only 1 left!

0

19

Gravely 426370

Screw, Cap 3/8-16 Hex Socket Head
(Superseded to 05933300)

$

$

Not available

20

Gravely 018813

Pump, Hydraulic
(Superseded to 08900900)

$

$

Not available

21

Gravely 023206

Adaptor
(Superseded to 07021400)

$28.99

$

Usually ships in 4-12 days

0

22

Gravely 018818

Adaptor
(Superseded to 08901000)

$20.99

$

Usually ships in 4-12 days

0

23

Gravely 035510

Bushing
(Superseded to 07015000)

$

$

Not available

24

Gravely 018828

Adaptor
(Superseded to 00313270)

$9.49

$

Usually ships in 4-12 days

0

25

Gravely 035654

Decal, Hydraulic Lift
(Superseded to 05209500)

$

$

Not available

26

Gravely 035606

Bracket, Lift
(Superseded to 08921500)

$

$

Not available

27

Gravely 035509

Lever, Lift
(Superseded to 08919300)

$

$

Not available

28

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 035512

Strap, Valve
(Superseded to 08919500)

$

$

Not available

30

Gravely 120910

Screw, Machine 10-24x.75 Rd Hd
(Superseded to 06112500)

$

$

Not available

31

Gravely 132848

Screw, Machine 10-24x1.00 Rd Hd
(Superseded to 06112700)

$

$

Not available

32

Gravely 180050

Bolt, Hex 1/4-20x2.75
(Superseded to 05969900)

$

$

Not available

33

Gravely 023485

Plate, Flow Restriction
(Superseded to 08904100)

$

$

Not available

34

Gravely 018826

Adaptor
(Superseded to 08800700)

$22.99

$

Usually ships in 4-12 days

0

35

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

36

Gravely 015255

Spring, Extension 5.5x.5x20 Rate
(Superseded to 08327500)

$

$

Not available

37

Gravely 035511

Valve, Control
(Superseded to 20624900)

$

$

Not available

38

Gravely 040723

Adaptor
(Superseded to 08936400)

$

$

Not available

39

Gravely 040259

Bracket, Oil Filter
(Superseded to 21252800)

$

$

Not available

40

Gravely 040260

Tube, Oil Pickup
(Superseded to 08934500)

$

$

Not available

41

Gravely 034383

Spacer
(Superseded to 08905800)

$

$

Not available

42

Gravely 120386

Washer, Flat .312x.734x.065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

43

Gravely 180024

Bolt, Hex 1/4-20x1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

44

Gravely 040172

Filter, Spin-On
(Superseded to 08933300)

$

$

Not available
