989026 - Gravely Pro-Master Zero-Turn Mower, 17hp Kohler, Gear (SN: 000101 & Above) MANUAL LIFT Parts Diagram

Pro-Master Zero-Turn Mower, 17hp Kohler, Gear

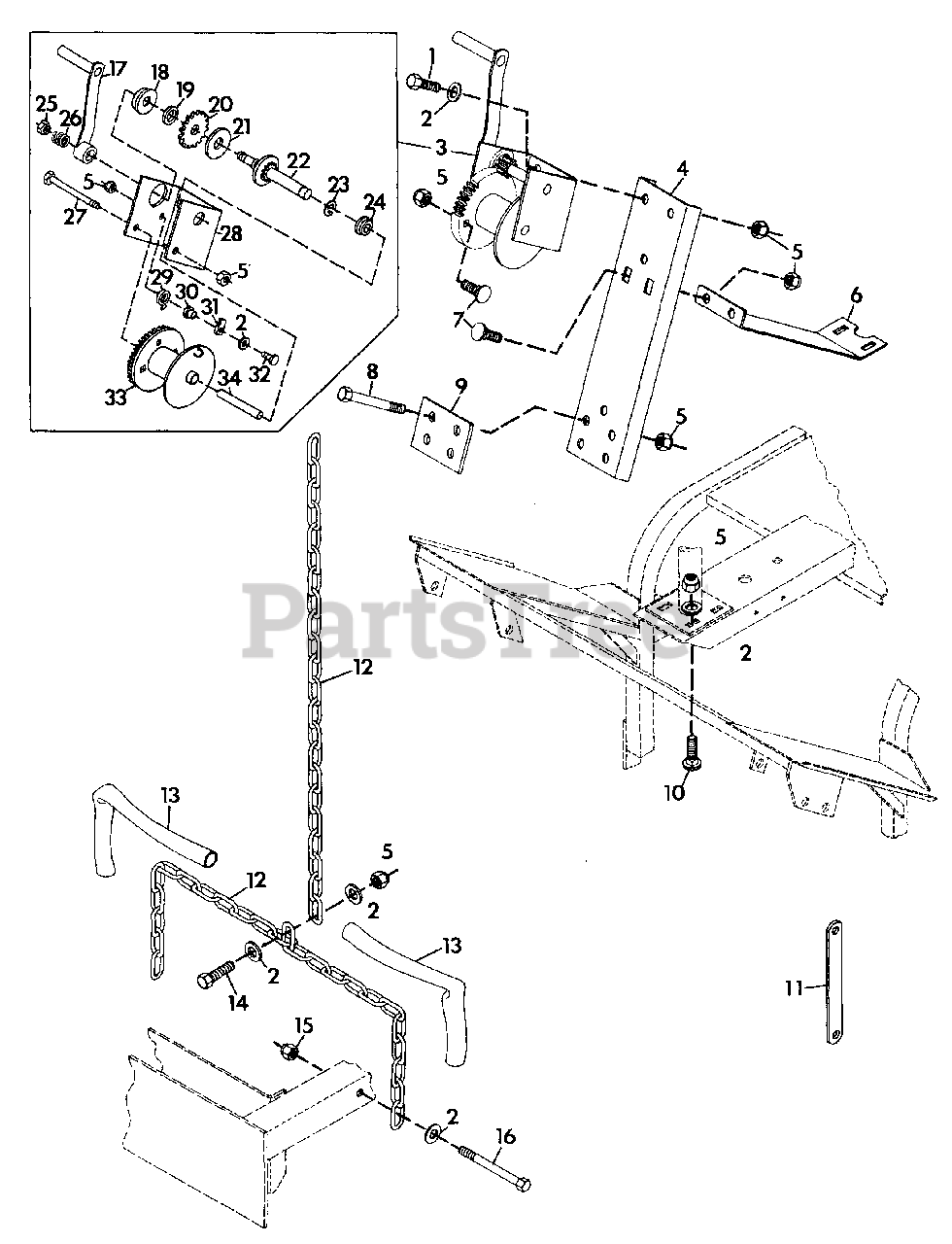

MANUAL LIFT Parts Diagram

  • Title

1

Gravely 180122

BOLT, HEX 3/8-16X1
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

2

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 038759

WINCH
(Superseded to 08929153)

$

$

Not available

4

Gravely 038765

CHANNEL, WINCH LIFT
(Superseded to 08929400)

$

$

Not available

5

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

6

Gravely 038764

BRACE, WINCH CHANNEL
(Superseded to 08929300)

$

$

Not available

7

Gravely 126390

BOLT, 3/8-16X.875 RD HD SQ NK
(Superseded to 06215800)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 180134

BOLT, HEX 3/8-16X2.5
(Superseded to 05901812)

$2.49

$

In Stock, Qty 20+

0

9

Gravely 038766

PLATE, CHANNEL CLAMP
(Superseded to 08929500)

$

$

Not available

10

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

11

Gravely 035659

BAR, DECK LIFT
(Superseded to 08923200)

$

$

Not available

12

Gravely 038767

CHAIN, MOWER LIFT
(Superseded to 09031700)

$

$

Not available

13

Gravely 038768

TUBING
(Superseded to 07524900)

$

$

Not available

14

Gravely 180123

BOLT, HEX 3/8-16X1.125

$

$

Not available

15

Gravely 190139

NUT, LOCK 5/16-24
(Superseded to 06526500)

$1.99

$

Usually ships in 4-12 days

0

16

Gravely 181623

BOLT, HEX 5/16-24X2.75
(Superseded to 05937200)

$3.49

$

Usually ships in 4-12 days

0

17

Gravely 040856

HANDLE, WINCH
(Superseded to 20680900)

$20.99

$

Usually ships in 4-12 days

0

18

Gravely 040861

BUSHING, SHAFT
(Superseded to 20681400)

$5.99

$

Usually ships in 4-12 days

0

19

Gravely 040860

WASHER, PRESSURE
(Superseded to 20681300)

$

$

Not available

20

Gravely 040859

WHEEL, RATCHET
(Superseded to 20681200)

$

$

Not available

21

Gravely 040858

PLATE, PRESSURE
(Superseded to 20681100)

$5.99

$

Usually ships in 4-12 days

0

22

Gravely 040854

SHAFT, DRIVE
(Superseded to 20680700)

$

$

Not available

23

Gravely 021396

E-RING, .625 SHAFT
(Superseded to 05708300)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 040853

BUSHING, SHAFT
(Superseded to 20680600)

$3.49

$

Usually ships in 4-12 days

0

25

Gravely 040857

NUT, HANDLE
(Superseded to 20681000)

$3.49

$

Usually ships in 4-12 days

0

26

Gravely 040855

SPRING, HANDLE
(Superseded to 20680800)

$

$

Not available

27

Gravely 189295

BOLT, HEX 3/8-16X4.50
(Superseded to 05970400)

$4.99

$

In Stock, only 2 left!

0

28

Gravely 040852

BASE, WINCH

$

$

Not available

29

Gravely 040866

SPRING, RATCHET
(Superseded to 20681900)

$

$

Not available

30

Gravely 040865

SPACER, RATCHET
(Superseded to 20681800)

$

$

Not available

31

Gravely 040864

PAWL, RATCHET
(Superseded to 20681700)

$

$

Not available

32

Gravely 040863

BOLT, RATCHET

$

$

Not available

33

Gravely 040862

REEL, WINCH
(Superseded to 20681500)

$

$

Not available

34

Gravely 040867

SPACER, TUBING

$

$

Not available
