989025 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 2 Speed (SN: 000101 & Above) RANGE CONTROL Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 2 Speed

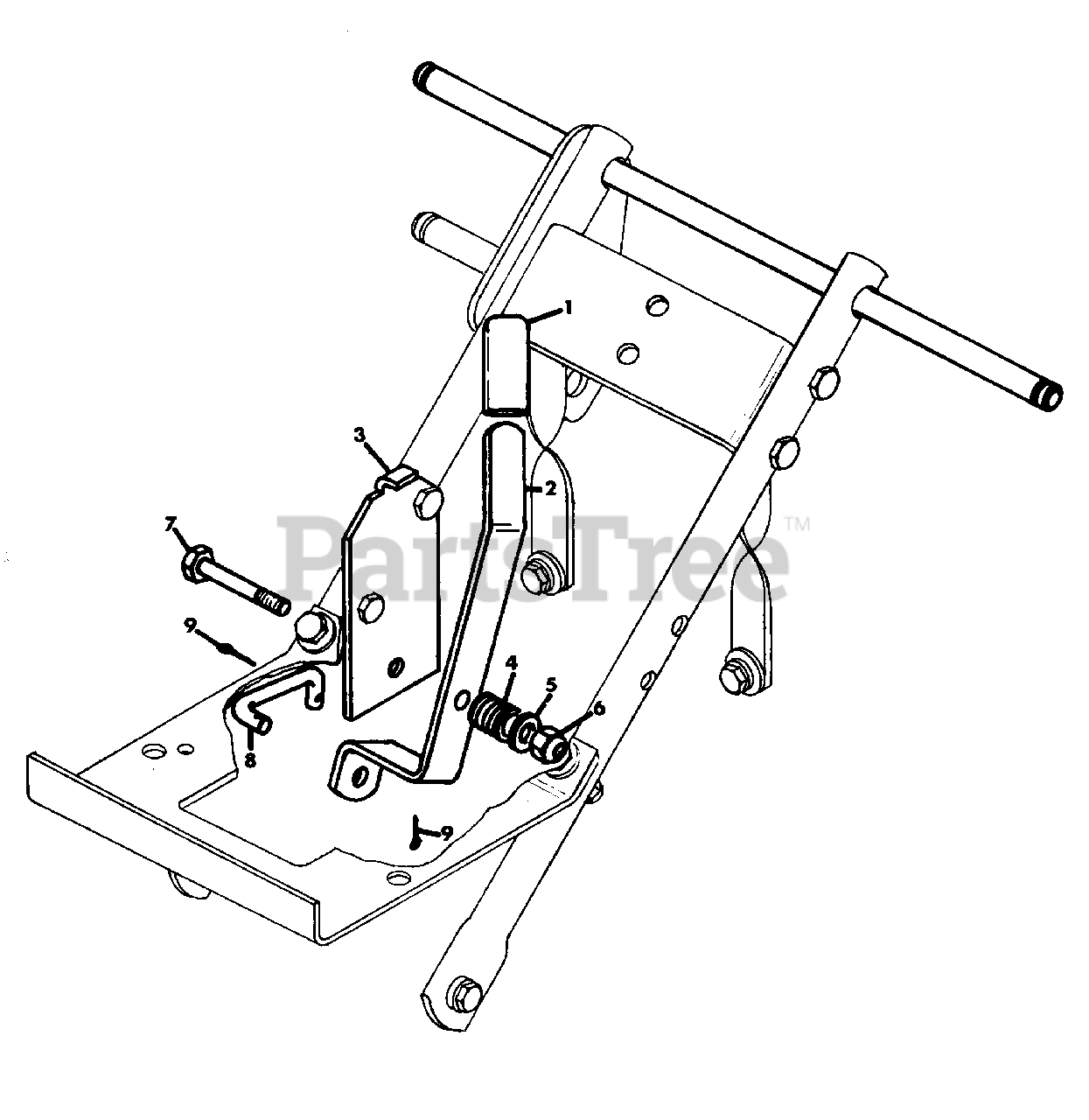

RANGE CONTROL Parts Diagram

  • Title
1

Gravely 027158

GRIP, HANDLE
(Superseded to 07522100)

$

$

Not available

2

Gravely 034513

LEVER, HI-LO
(Superseded to 21229500)

$

$

Not available

3

Gravely 034547

BRACKET, HI-LO
(Superseded to 21230200)

$

$

Not available

4

Gravely 011779

SPRING, COMP. 1X.78
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

7

Gravely 180128

BOLT, HEX 3/8-16X1.75
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 034457

ROD, HI-LO
(Superseded to 09026900)

$

$

Not available

9

Gravely 121224

PIN, COTTER .09X1.00

$0.99

$

Usually ships in 4-12 days

0
