989024 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) STEERING COLUMN Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

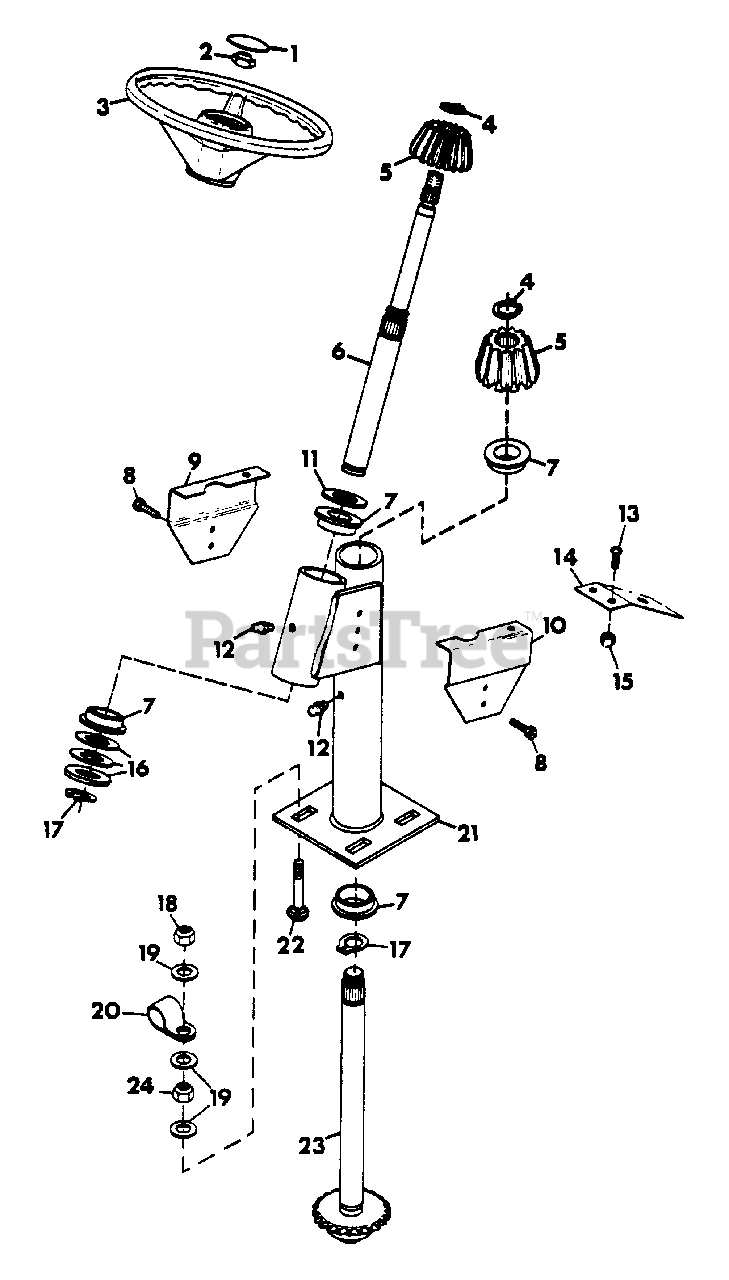

STEERING COLUMN Parts Diagram

  • Title
1

Gravely 031426

CAP, STEERING WHEEL
(Superseded to 03489800)

$

$

Not available

2

Gravely 124847

NUT, JAM 5/8-11
(Superseded to 06539300)

$

$

Not available

3

Gravely 031281

WHEEL, STEERING
(Superseded to 03066600)

$

$

Not available

4

Gravely 022080

RING, RETAINING
(Superseded to 05713900)

$3.49

$

Usually ships in 4-12 days

0

5

Gravely 022227

PINION, BEVEL
(Superseded to 08903700)

$

$

Not available

6

Gravely 034573

SHAFT, STEERING WHEEL
(Superseded to 08909900)

$

$

Not available

7

Gravely 022098

BEARING, FLANGED
(Superseded to 05422400)

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 448423

SCREW, TAPPING 10-24X.50
(Superseded to 07410700)

$

$

Not available

9

Gravely 038811

GUARD, STEERING R.H.
(Superseded to 08930053)

$

$

Not available

10

Gravely 038812

GUARD, STEERING L.H.
(Superseded to 08930153)

$

$

Not available

11

Gravely 017959

BEARING, THRUST RACE .030
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

12

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

13

Gravely 160536

SCREW, MACHINE 1/4-20X.625
(Superseded to 06113400)

$

$

Not available

14

Gravely 038810

BRACKET, IGNITION
(Superseded to 08929900)

$

$

Not available

15

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

16

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

17

Gravely 017980

RING, RETAINING
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

18

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

21

Gravely 034515

TUBE, STEERING
(Superseded to 08908200)

$

$

Not available

22

Gravely 126411

BOLT, 3/8-16X1.50 RD HD SQ NK
(Superseded to 06200416)

$3.99

$

In Stock, only 2 left!

0

23

Gravely 035533

WELDMENT, STEERING SHAFT
(Superseded to 08920500)

$

$

Not available

24

Gravely 120377

NUT, HEX 3/8-16
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0
