989024 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) DIRECTION CONTROL Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

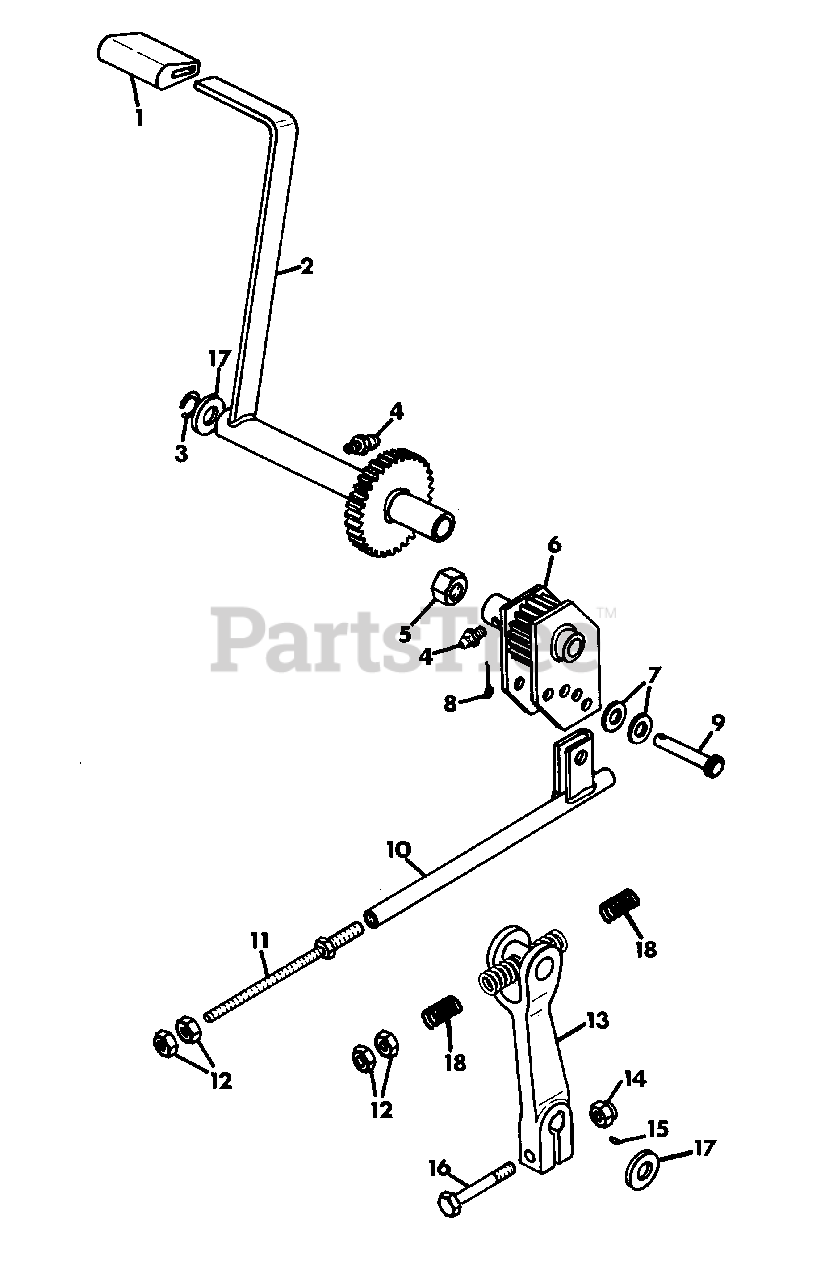

DIRECTION CONTROL Parts Diagram

  • Title

1

Gravely 032652

GRIP, HANDLE
(Superseded to 07522800)

$

$

Not available

2

Gravely 034565

LEVER, FWD-REV
(Superseded to 21230600)

$

$

Not available

3

Gravely 011135

RING, RETAINING .750 SHAFT
(Superseded to 05700135)

$2.49

$

In Stock, only 4 left!

0

4

Gravely 411027

FITTING, LUB 1/4-28
(Superseded to 07012600)

$

$

Not available

5

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

6

Gravely 034581

WELDMENT, ARM FWD-REV
(Superseded to 21231400)

$

$

Not available

7

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

9

Gravely 415571

PIN, CLEVIS .375X1.531
(Superseded to 21067000)

$

$

Not available

10

Gravely 034585

WELDMENT, FWD-REV ROD
(Superseded to 21362500)

$

$

Not available

11

Gravely 020269

ROD, CONTROL EXTENSION
(Superseded to 58501400)

$284.99

$

Usually ships in 4-12 days

0

12

Gravely 124829

NUT, JAM 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 034568

LEVER, CONTROL
(Superseded to 21230800)

$

$

Not available

14

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 124545

KEY, WOODRUFF .125X.625 HARD
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

16

Gravely 180087

BOLT, HEX 5/16-18X2.00
(Superseded to 05901805)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 038809

SPRING
(Superseded to 20652800)

$

$

Not available
