989021 - Gravely Pro-Master Zero-Turn Mower, 19hp Kohler, Gear (SN: 000101 & Above) STEERING Parts Diagram

Pro-Master Zero-Turn Mower, 19hp Kohler, Gear

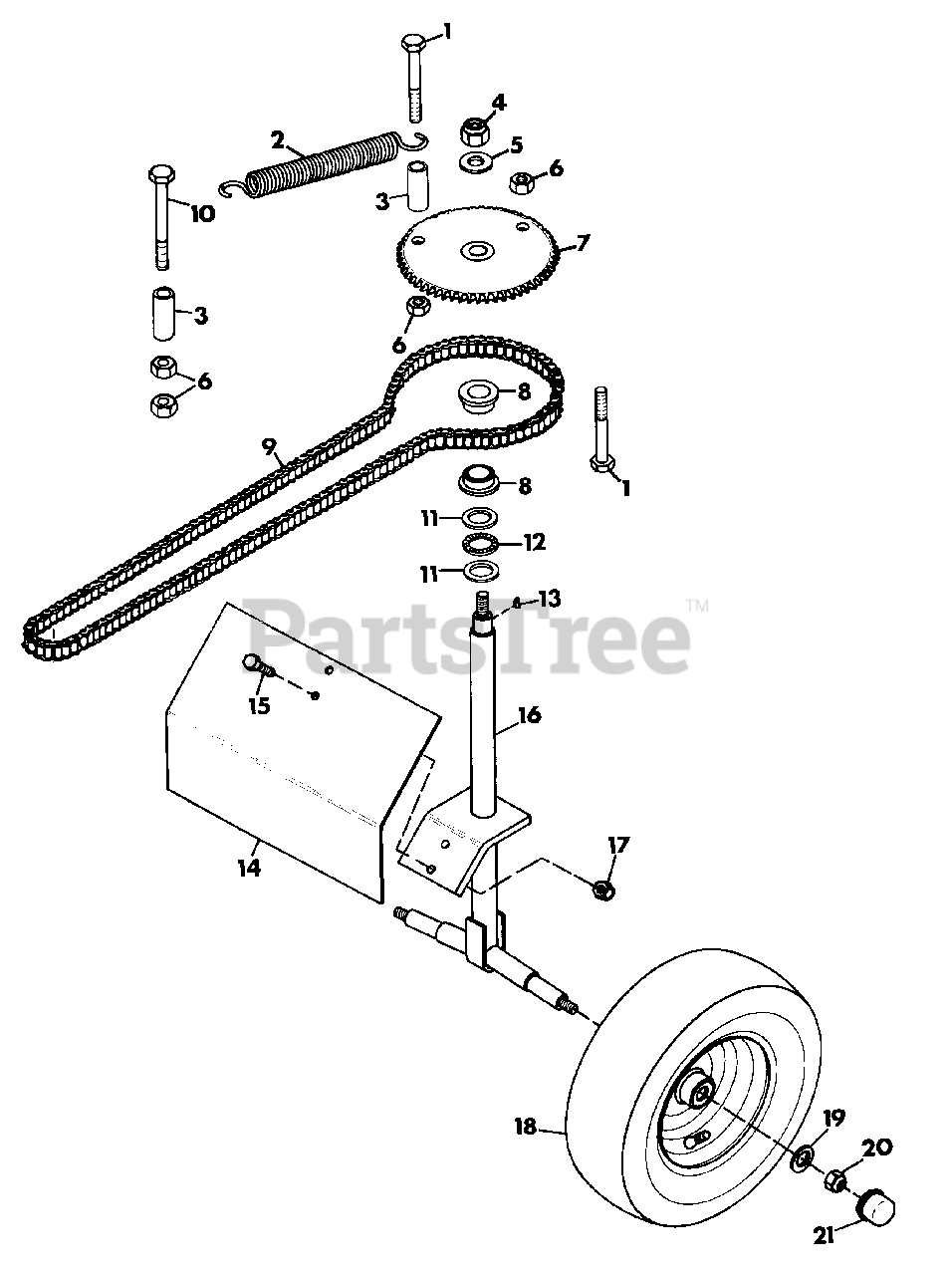

STEERING Parts Diagram

  • Title
1

Gravely 180191

BOLT, HEX 1/2-13X3.25
(Superseded to 05901634)

$3.99

$

Usually ships in 4-12 days

0

2

Gravely 031689

SPRING
(Superseded to 08330800)

$

$

Not available

3

Gravely 022414

BUSHING, MOWER PIVOT
(Superseded to 08522700)

$21.99

$

Usually ships in 4-12 days

0

4

Gravely 273670

NUT, LOCK 7/8-9
(Superseded to 06528100)

$

$

Not available

5

Gravely 131001

WASHER, FLAT .969X2.250X.165
(Superseded to 06429700)

$3.99

$

Usually ships in 4-12 days

0

6

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 035626

SPROCKET, 60T #40
(Superseded to 21241551)

$

$

Not available

8

Gravely 035170

BEARING, FLANGED
(Superseded to 05525500)

$

$

Not available

9

Gravely 034489

CHAIN, OFC
(Superseded to 00920900)

$

$

Not available

10

Gravely 180193

BOLT, HEX 1/2-13X3.75
(Superseded to 05901703)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 018954

BEARING, THRUST RACE
(Superseded to 06432200)

$13.99

$

In Stock, only 1 left!

0

12

Gravely 035639

BEARING, NEEDLE THRUST
(Superseded to 05424700)

$20.99

$

Usually ships in 4-12 days

0

13

Gravely 124551

KEY, WOODRUFF .250X.875 HARD #A
(Superseded to 06608800)

$3.99

$

Usually ships in 4-12 days

0

14

Gravely 038114

FENDER, PRO MASTER
(Superseded to 08927400)

$

$

Not available

15

Gravely 180175

BOLT, 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

16

Gravely 038115

WELDMENT, PRO MASTER AXLE
(Superseded to 08927500)

$

$

Not available

17

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

18

Gravely 038118

WHEEL, REAR PRO MASTER
(Superseded to 07129500)

$

$

Not available

19

Gravely 131018

WASHER, FLAT .938X1.750X.134
(Superseded to 21053300)

$

$

Not available

20

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

21

Gravely 038919

CAP
(Superseded to 20655400)

$10.99

$

In Stock, Qty 20+

0
