989019 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) TRANSMISSION Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

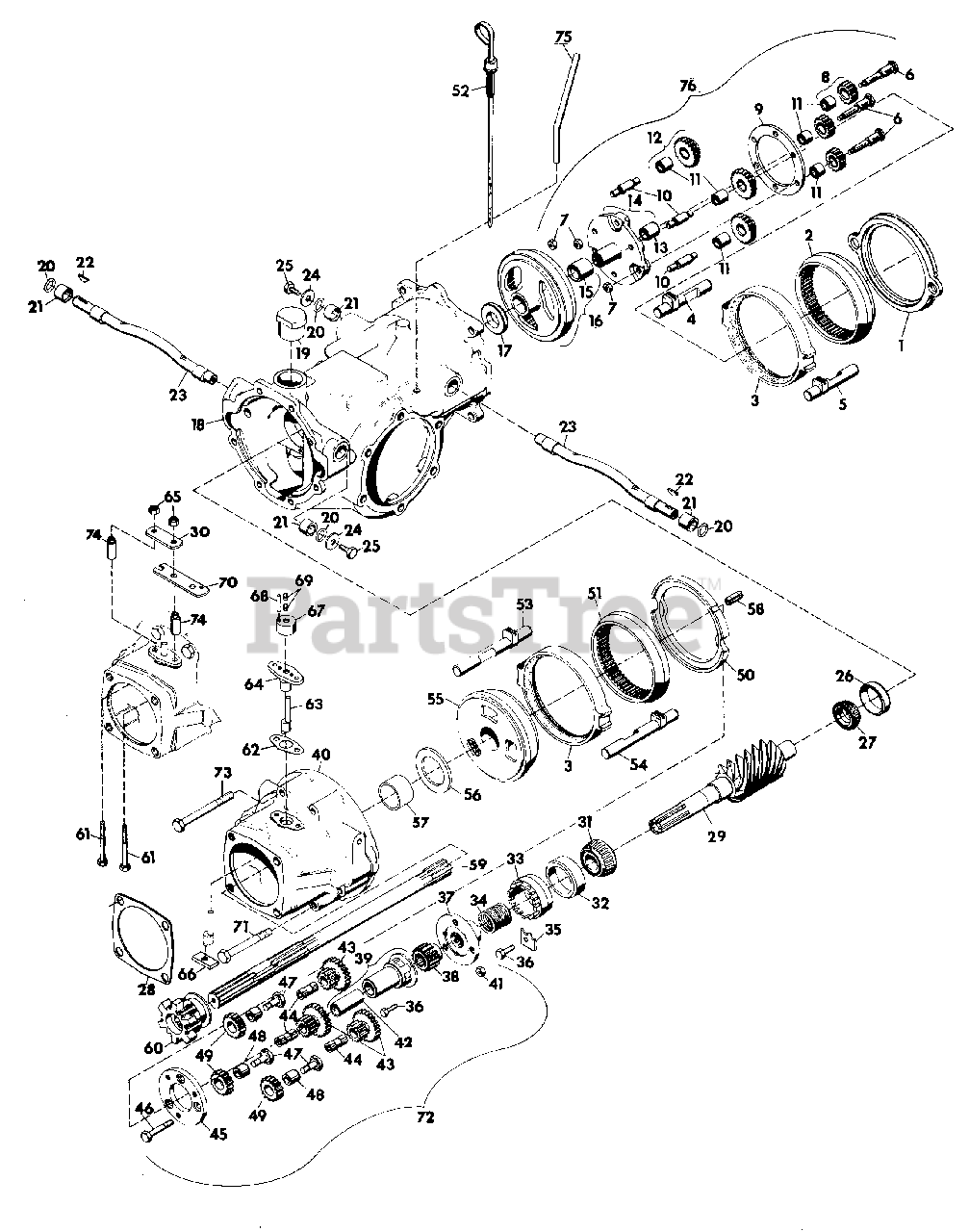

TRANSMISSION Parts Diagram

  • Title

1

Gravely 011183

SPACER, REAR
(Superseded to 08583800)

$159.99

$

In Stock, only 1 left!

0

2

Gravely 011182

GEAR, REAR RING
(Superseded to 08583700)

$257.99

$

Usually ships in 4-12 days

0

3

Gravely 012644

ASSEMBLY, CLUTCH CUP
(Superseded to 08590200)

$

$

Not available

4

Gravely 011184

ROD, REAR CLUTCH SLIDE L.H.
(Superseded to 08550800)

$

$

Not available

5

Gravely 011185

ROD, REAR CLUTCH SLIDE R.H.
(Superseded to 08550900)

$

$

Not available

6

Gravely 011181

BOLT, ORBIT GEAR
(Superseded to 08583600)

$42.99

$

Usually ships in 4-12 days

0

7

Gravely 011342

NUT, LOCK 5/16-18 L.H. THD.
(Superseded to 07051500)

$11.99

$

Usually ships in 4-12 days

0

8

Gravely 011179

ASSEMBLY, EXTERNAL ORBIT GEAR
(Superseded to 08583400)

$

$

Not available

9

Gravely 011178

SPACER, PIN
(Superseded to 08583300)

$42.99

$

Usually ships in 4-12 days

0

10

Gravely 011174

PIN, HI-LO ORBIT GEAR
(Superseded to 08582900)

$

$

Not available

11

Gravely 011177

BUSHING .501X.627X.495
(Superseded to 05519400)

$17.99

$

Usually ships in 4-12 days

0

12

Gravely 011175

ASSEMBLY, INTERNAL ORBIT GEAR
(Superseded to 08583000)

$

$

Not available

13

Gravely 011172

BUSHING, .737X.877X.682
(Superseded to 05520300)

$28.99

$

Usually ships in 4-12 days

0

14

Gravely 011171

ASSEMBLY, PLANET GEAR CARRIER
(Superseded to 08582600)

$

$

Not available

15

Gravely 011169

BUSHING, 1.231X1.502X1.312
(Superseded to 05519200)

$

$

Not available

16

Gravely 011168

ASSEMBLY, RING GEAR AND BUSHING
(Superseded to 08582400)

$

$

Not available

17

Gravely 012645

PLATE, REAR THRUST
(Superseded to 08590300)

$

$

Not available

18

Gravely 010628

CHASSIS
(Superseded to 08581600)

$

$

Not available

19

Gravely 010617

PLUG, OIL FILLER
(Superseded to 08581200)

$

$

Not available

20

Gravely 010663

O-RING, .750X1.00
(Superseded to 05619700)

$

$

Not available

21

Gravely 010618

BUSHING, .750X1.002X.625
(Superseded to 08581300)

$

$

Not available

22

Gravely 124545

KEY, WOODRUFF .125X.625 HARD
(Superseded to 06608400)

$2.99

$

In Stock, only 3 left!

0

23

Gravely 010625

SHAFT, ACTUATING
(Superseded to 08581500)

$

$

Not available

24

Gravely 012694

WASHER, FLAT .265X1.250X.063
(Superseded to 06403700)

$1.49

$

Usually ships in 4-12 days

0

25

Gravely 180016

BOLT, HEX 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

26

Gravely 010390

CUP, ROLLER BEARING
(Superseded to 05404600)

$13.99

$

In Stock, only 2 left!

0

27

Gravely 010389

CONE, ROLLER BEARING
(Superseded to 05404700)

$20.99

$

In Stock, Qty 20+

0

28

Gravely 005056

GASKET, ATTACHMENT
(Superseded to 08584900)

$3.99

$

In Stock, Qty 8

0

29

Gravely 023046

WELDMENT, WORM SHAFT ASM 8 LEAD
(Superseded to 68501300)

$

$

Not available

30

Gravely 020822

SPACER, STRAP
(Superseded to 08513400)

$25.99

$

Usually ships in 4-12 days

0

31

Gravely 012332

CONE, ROLLER BEARING
(Superseded to 05428400)

$

$

Not available

32

Gravely 012333

CUP, ROLLER BEARING
(Superseded to 05428500)

$

$

Not available

33

Gravely 012635

NUT, BEARING ADJUSTMENT
(Superseded to 07016500)

$

$

Not available

34

Gravely 012663

SPACER, SPRING PIN PLATE
(Superseded to 08327400)

$

$

Not available

35

Gravely 012648

NUT, ADJUSTMENT
(Superseded to 08590400)

$

$

Not available

36

Gravely 180018

BOLT, HEX 1/4-20X.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

37

Gravely 012633

PLATE, FRONT PIN
(Superseded to 08589600)

$

$

Not available

38

Gravely 012637

GEAR, SUN PINION
(Superseded to 08589900)

$

$

Not available

39

Gravely 014923

ASSEMBLY, QUILL AND BUSHING
(Superseded to 08503100)

$

$

Not available

40

Gravely 037821

ASSEMBLY, ADVANCE CASTING
(Superseded to 21244800)

$

$

Not available

41

Gravely 120375

NUT, HEX 1/4-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

42

Gravely 012662

BUSHING, .875X1.000X2
(Superseded to 05523300)

$

$

Not available

43

Gravely 012639

GEAR, ORBIT
(Superseded to 08590000)

$

$

Not available

44

Gravely 012640

PIN, FWD-REV ORBIT GEAR
(Superseded to 08590100)

$

$

Not available

45

Gravely 012655

SPACER, FRONT PIN
(Superseded to 08590600)

$

$

Not available

46

Gravely 012643

BOLT, SPACER
(Superseded to 07013700)

$

$

Not available

47

Gravely 012658

BOLT, REVERSE IDLER
(Superseded to 07016200)

$

$

Not available

48

Gravely 012657

BUSHING, REVERSE IDLER
(Superseded to 08536300)

$

$

Not available

49

Gravely 012656

GEAR, REVERSE IDLER
(Superseded to 08590700)

$

$

Not available

50

Gravely 012636

CUP, GEAR
(Superseded to 08589800)

$351.99

$

Usually ships in 4-12 days

0

51

Gravely 012632

GEAR, INTERNAL
(Superseded to 08589500)

$

$

Not available

52

Gravely 010622

ASSEMBLY, DIP STICK
(Superseded to 08581400)

$

$

Not available

53

Gravely 012677

ROD, CLUTCH SLIDE L.H.
(Superseded to 08550600)

$

$

Not available

54

Gravely 012678

ROD, CLUTCH SLIDE R.H.
(Superseded to 08550700)

$

$

Not available

55

Gravely 012654

CONE, REVERSE GEAR
(Superseded to 08590500)

$

$

Not available

56

Gravely 037820

DISC, FRICTION
(Superseded to 08539600)

$

$

Not available

57

Gravely 037819

BEARING
(Superseded to 05525600)

$

$

Not available

58

Gravely 013456

PIN, ROLL
(Superseded to 05807500)

$

$

Not available

59

Gravely 011298

SHAFT, PINION
(Superseded to 09023100)

$

$

Not available

60

Gravely 012660

DOG, ATTACHMENT
(Superseded to 09023900)

$

$

Not available

61

Gravely 180089

BOLT, HEX 5/16-18X2.25
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

62

Gravely 018318

GASKET, SHIPPER SHAFT
(Superseded to 08502300)

$5.49

$

In Stock, only 2 left!

0

63

Gravely 010686

SHAFT, SHIPPER
(Superseded to 09022000)

$85.99

$

Usually ships in 4-12 days

0

64

Gravely 010687

GUIDE, SHIPPER SHAFT
(Superseded to 08559900)

$

$

Not available

65

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

66

Gravely 012601

BLOCK TRUNNION
(Superseded to 09023800)

$18.99

$

In Stock, only 1 left!

0

67

Gravely 010688

BODY, SHIPPER SHAFT
(Superseded to 08581900)

$71.99

$

Usually ships in 4-12 days

0

68

Gravely 456390

PIN, SPRING .25X.75
(Superseded to 05803600)

$2.99

$

In Stock, only 3 left!

0

69

Gravely 102591

SCREW, SET 3/8-16X.25
(Superseded to 06004700)

$2.49

$

Usually ships in 4-12 days

0

70

Gravely 012122

ARM, SHIFTER
(Superseded to 09023700)

$34.99

$

Usually ships in 4-12 days

0

71

Gravely 037817

BOLT, HEX 5/16-18X3.50 GR. 8
(Superseded to 05942300)

$

$

Not available

72

Gravely 014922

ASSEMBLY, FWD-REV PLANETARY
(Superseded to 58500100)

$

$

Not available

73

Gravely 037818

BOLT, HEX 5/16-18X3.25 GR. 8
(Superseded to 05967900)

$

$

Not available

74

Gravely 012123

SPACER, SHIPPER SHAFT GUIDE
(Superseded to 08588200)

$77.99

$

In Stock, only 2 left!

0

75

Gravely 010586

GUIDE, DIPSTICK
(Superseded to 09021800)

$

$

Not available

76

Gravely 014615

ASSEMBLY, HI-LO PLANETARY
(Superseded to 68500400)

$

$

Not available
