989018 - Gravely Pro-Master Zero-Turn Mower, 19hp Kohler, Gear (SN: 000101 & Above) TRANSMISSION CONTROLS Parts Diagram

Pro-Master Zero-Turn Mower, 19hp Kohler, Gear

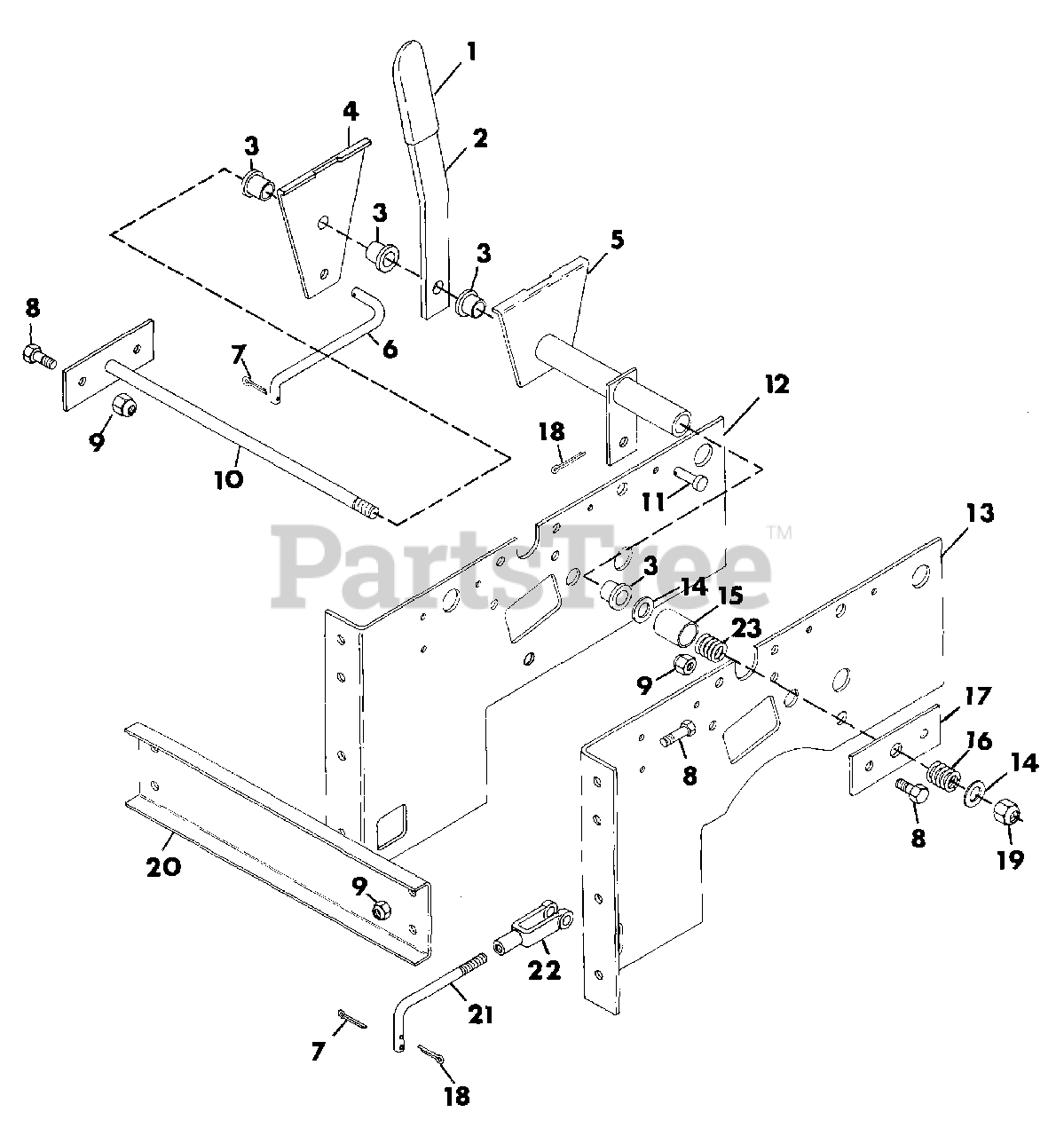

TRANSMISSION CONTROLS Parts Diagram

  • Title
1

Gravely 027158

GRIP, HANDLE
(Superseded to 07522100)

$

$

Not available

2

Gravely 035456

LEVER, SHIFTER
(Superseded to 21240700)

$

$

Not available

3

Gravely 021504

BUSHING, CABLE GUIDE PULLEY
(Superseded to 05519600)

$5.99

$

Usually ships in 4-12 days

0

4

Gravely 035461

WELDMENT, SHIFT LEVER R.H.
(Superseded to 08916600)

$

$

Not available

5

Gravely 035460

WELDMENT, SHIFT LEVER L.H.
(Superseded to 08916500)

$

$

Not available

6

Gravely 035457

ROD, GEAR SHIFT
(Superseded to 20624500)

$5.99

$

Usually ships in 4-12 days

0

7

Gravely 011860

PIN, COTTER HAIR
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 180121

BOLT, HEX 3/8-16X.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

10

Gravely 035462

WELDMENT, CROSS SHAFT
(Superseded to 08916700)

$

$

Not available

11

Gravely 138078

PIN, CLEVIS .375X.948
(Superseded to 06811900)

$4.99

$

In Stock, Qty 5

0

12

Gravely 035430

BRACKET, CONTROL MOUNT R.H.
(Superseded to 08915000)

$

$

Not available

13

Gravely 035431

BRACKET, CONTROL MOUNT L.H.
(Superseded to 21240000)

$

$

Not available

14

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 035489

SPACER, #2 SHAFT
(Superseded to 08911900)

$

$

Not available

16

Gravely 011779

SPRING, COMPRESSION 1.00X.78X338 LB/IN
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

17

Gravely 035502

PLATE, CROSS SHAFT
(Superseded to 08918800)

$

$

Not available

18

Gravely 121222

PIN, COTTER .09X.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

19

Gravely 455507

NUT, LOCK 1/2-13

$

$

Not available

20

Gravely 035469

BRACKET, HYDRAULIC TANK
(Superseded to 08917200)

$

$

Not available

21

Gravely 035477

ROD, GEAR SHIFT
(Superseded to 20624600)

$3.49

$

Usually ships in 4-12 days

0

22

Gravely 018380

CLEVIS, 3/8-24 ADJUSTABLE
(Superseded to 08800400)

$11.99

$

Usually ships in 4-12 days

0

23

Gravely 018372

SPRING, COMPRESSION 2.75X.625X34 RATE
(Superseded to 08328000)

$

$

Not available
