989018 - Gravely Pro-Master Zero-Turn Mower, 19hp Kohler, Gear (SN: 000101 & Above) PTO CONTROLS Parts Diagram

Pro-Master Zero-Turn Mower, 19hp Kohler, Gear

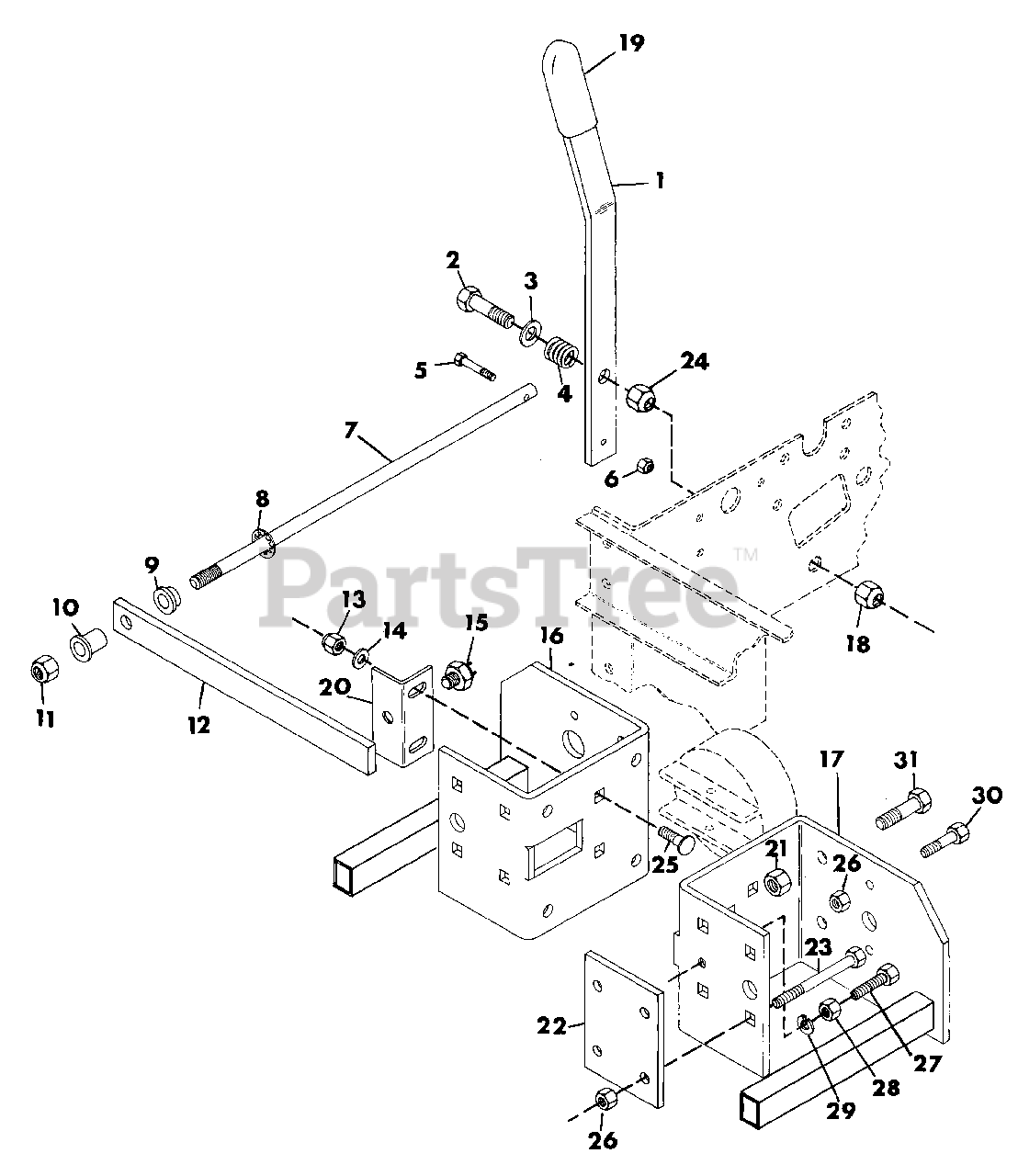

PTO CONTROLS Parts Diagram

  • Title
1

Gravely 035465

LEVER, PTO
(Superseded to 21240800)

$

$

Not available

2

Gravely 180185

BOLT, HEX 1/2-13X2.500
(Superseded to 05901712)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 011779

SPRING, COMPRESSION 1.00X.78X338 LB/IN
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

5

Gravely 180024

BOLT, HEX 1/4-20X1.25
(Superseded to 05901738)

$1.99

$

In Stock, Qty 5

0

6

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 035499

ROD, PTO
(Superseded to 09027500)

$

$

Not available

8

Gravely 034737

RING, RETAINING
(Superseded to 05715100)

$

$

Not available

9

Gravely 034738

BUSHING, .513X.750X.375
(Superseded to 05521100)

$2.49

$

In Stock, only 3 left!

0

10

Gravely 035129

BUSHING, FWD-REV SLIDE ROD
(Superseded to 08926900)

$77.99

$

In Stock, only 1 left!

0

11

Gravely 011835

NUT, LOCK 1/2-20
(Superseded to 06544000)

$5.99

$

Usually ships in 4-12 days

0

12

Gravely 034715

SPRING, FWD-REV CLUTCH
(Superseded to 08736253)

$

$

Not available

13

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 034640

SWITCH, NEUTRAL START
(Superseded to 08803700)

$34.99

$

In Stock, only 1 left!

0

16

Gravely 035631

WELDMENT, R.H. MOWER BRACKET
(Superseded to 08922500)

$

$

Not available

17

Gravely 035630

WELDMENT, L.H. MOWER BRACKET
(Superseded to 08922400)

$

$

Not available

18

Gravely 120378

NUT, HEX 1/2-13
(Superseded to 06500814)

$3.99

$

In Stock, only 1 left!

0

19

Gravely 027158

GRIP, HANDLE
(Superseded to 07522100)

$

$

Not available

20

Gravely 035455

BRACKET, INTERLOCK SWITCH
(Superseded to 08916400)

$5.99

$

Usually ships in 4-12 days

0

21

Gravely 011058

NUT, RIM
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 035628

PLATE, ATTACHMENT CLAMP
(Superseded to 08737953)

$

$

Not available

23

Gravely 189304

BOLT, HEX 3/8-16X3.25
(Superseded to 05901817)

$3.99

$

In Stock, Qty 20+

0

24

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 126353

BOLT 5/16-18X.875 RD HD SQ NK
(Superseded to 06209200)

$

$

Not available

26

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

27

Gravely 034402

BOLT, HEX 3/8-16X2.00
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

28

Gravely 124829

NUT, JAM 3/8-16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

29

Gravely 120382

WASHER, LOCK 3/8 REG.
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

31

Gravely 181700

BOLT, HEX 1/2-20X1.50
(Superseded to 05968600)

$3.99

$

Usually ships in 4-12 days

0
