989018 - Gravely Pro-Master Zero-Turn Mower, 19hp Kohler, Gear (SN: 000101 & Above) FUEL AND EXHAUST SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 19hp Kohler, Gear

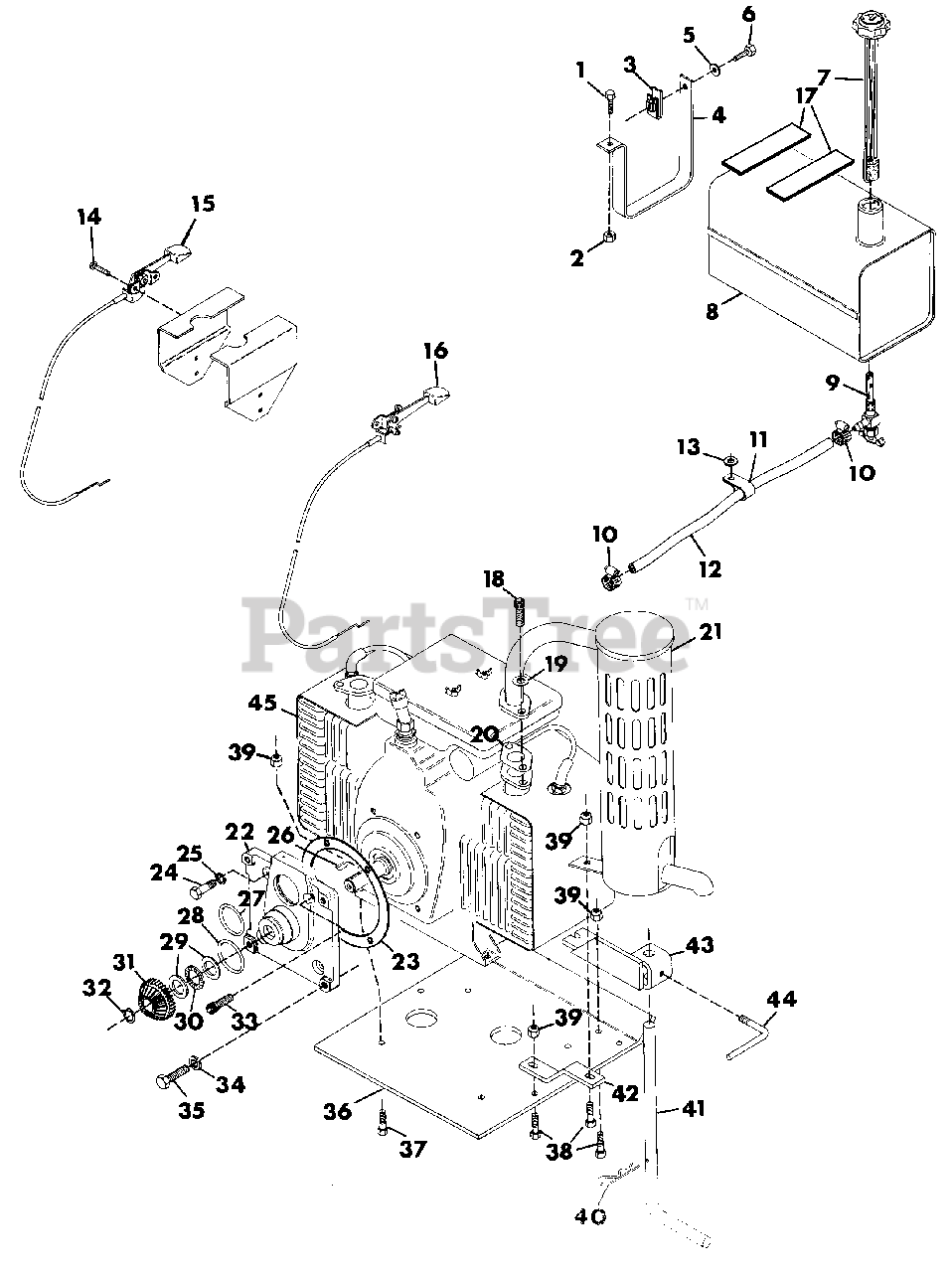

FUEL AND EXHAUST SYSTEM Parts Diagram

  • Title
1

Gravely 180081

BOLT, HEX 5/16-18X1.25
(Superseded to 05901803)

$2.49

$

In Stock, Qty 11

0

2

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 023665

NUT, RETAINER
(Superseded to 06521500)

$

$

Not available

4

Gravely 035476

STRAP, GAS TANK
(Superseded to 08917551)

$

$

Not available

5

Gravely 120386

WASHER,FLAT .312 X .734 X .065
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 034555

GAUGE, FUEL
(Superseded to 08909800)

$75.99

$

Usually ships in 4-12 days

0

8

Gravely 035308

TANK, FUEL
(Superseded to 08913800)

$

$

Not available

9

Gravely 007354

VALVE AND STRAINER
(Superseded to 08860200)

$17.99

$

In Stock, only 1 left!

0

10

Gravely 007216

CLAMP, FUEL HOSE

$

$

Not available

11

Gravely 035313

CLAMP, NYLON
(Superseded to 03334000)

$

$

Not available

12

Gravely 021134

LINE, FUEL
(Superseded to 03278100)

$1.49

$

In Stock, Qty 20+

0

13

Gravely 120393

WASHER, FLAT .344X.688X.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 448423

SCREW, TAPPING 10-24X.50 HHD SF
(Superseded to 07410700)

$

$

Not available

15

Gravely 035483

LEVER, CONTROL
(Superseded to 20624800)

$

$

Not available

16

Gravely 035482

LEVER, CONTROL
(Superseded to 20624700)

$

$

Not available

17

Gravely 031884

PAD, GAS TANK
(Superseded to 03301900)

$

$

Not available

18

Gravely 421705

SCREW, CAP 5/16-18X.75
(Superseded to 05901827)

$2.49

$

In Stock, only 3 left!

0

19

Gravely 120214

WASHER, LOCK 5/16 REG.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 011202

GASKET, EXHAUST
(Superseded to 08824700)

$10.99

$

In Stock, only 2 left!

0

21

Gravely 035425

MUFFLER, PRO MASTER-60 KT 17
(Superseded to 08914800)

$

$

Not available

22

Gravely 032164

ADAPTOR, ENGINE
(Superseded to 21215200)

$

$

Not available

23

Gravely 032809

GASKET, ENGINE
(Superseded to 20585100)

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 180146

BOLT, HEX 7/16-14X1.125
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

25

Gravely 131100

WASHER, LOCK 7/16 SP HEAVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

26

Gravely 018345

KEY, SQUARE .250X1.250
(Superseded to 06606900)

$2.99

$

Usually ships in 4-12 days

0

27

Gravely 018347

O-RING, 2.50X2.750X.125
(Superseded to 20256400)

$5.99

$

In Stock, Qty 11

0

28

Gravely 018346

O-RING, 3.000X3.188X.094
(Superseded to 05614900)

$3.49

$

In Stock, Qty 11

0

29

Gravely 018342

RACE, BEARING THRUST
(Superseded to 20256200)

$16.99

$

In Stock, only 2 left!

0

30

Gravely 018341

BEARING, THRUST
(Superseded to 05421000)

$10.99

$

In Stock, only 4 left!

0

31

Gravely 018343

GEAR, SPUR AND BEVEL INPUT
(Superseded to 08790200)

$323.99

$

Usually ships in 4-12 days

0

32

Gravely 018344

RING, RETAINING 1.125 SHAFT
(Superseded to 05712600)

$1.99

$

Usually ships in 4-12 days

0

33

Gravely 421648

SCREW, CAP 7/16-14X1.00
(Superseded to 05933000)

$

$

Not available

34

Gravely 120396

WASHER, FLAT .531X1.062X.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

35

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

36

Gravely 035432

PLATE, SKID
(Superseded to 08915100)

$

$

Not available

37

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 180123

BOLT, HEX 3/8-16X1.12

$

$

Not available

39

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

40

Gravely 010405

PIN, HAIR
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

41

Gravely 034062

STAND, KICK
(Superseded to 08536500)

$51.99

$

Usually ships in 4-12 days

0

42

Gravely 035454

BRACKET, MUFFLER
(Superseded to 08916300)

$

$

Not available

43

Gravely 034531

STAND, SUPPORT
(Superseded to 08909100)

$

$

Not available

44

Gravely 013457

HANDLE, ADJUSTING
(Superseded to 08597900)

$102.99

$

In Stock, only 1 left!

0

45

Gravely 037512

ENGINE, 17 HP KOHLER

$

$

Not available

45

Gravely 037513

ENGINE, 19 HP KOHLER

$

$

Not available
