989016 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) STEERING COLUMN Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

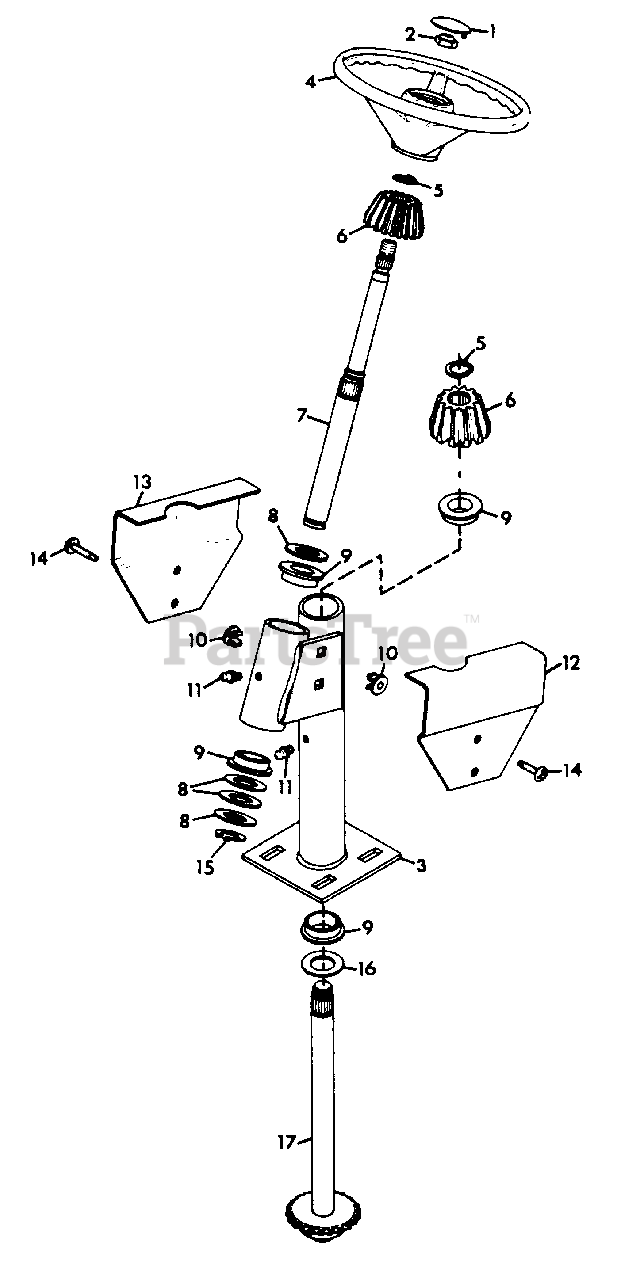

STEERING COLUMN Parts Diagram

  • Title

1

Gravely 031426

CAP, STEERING WHEEL
(Superseded to 03489800)

$

$

Not available

2

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

3

Gravely 034515

TUBE, STEERING
(Superseded to 08908200)

$

$

Not available

4

Gravely 031281

WHEEL, STEERING
(Superseded to 03066600)

$

$

Not available

5

Gravely 022080

RING, RETAINING
(Superseded to 05713900)

$3.49

$

Usually ships in 4-12 days

0

6

Gravely 022227

PINION, BEVEL
(Superseded to 08903700)

$

$

Not available

7

Gravely 034573

SHAFT, STEERING WHEEL
(Superseded to 08909900)

$

$

Not available

8

Gravely 019340

RACE, BEARING THRUST
(Superseded to 06435300)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 022098

BEARING, FLANGED
(Superseded to 05422400)

$14.99

$

Usually ships in 4-12 days

0

10

Gravely 011777

GROMMET, PLASTIC
(Superseded to 07538100)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

12

Gravely 034571

GUARD, STEERING L.H.
(Superseded to 21231053)

$

$

Not available

13

Gravely 034572

GUARD, STEERING R.H.
(Superseded to 21231153)

$

$

Not available

14

Gravely 160515

SCREW, 1/4-20X.50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 017980

RING, RETAINING
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

16

Gravely 017959

RACE, BEARING THRUST
(Superseded to 06426500)

$18.99

$

In Stock, only 2 left!

0

17

Gravely 034510

SHAFT, STEERING
(Superseded to 21229300)

$

$

Not available
