989016 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) MOWER FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

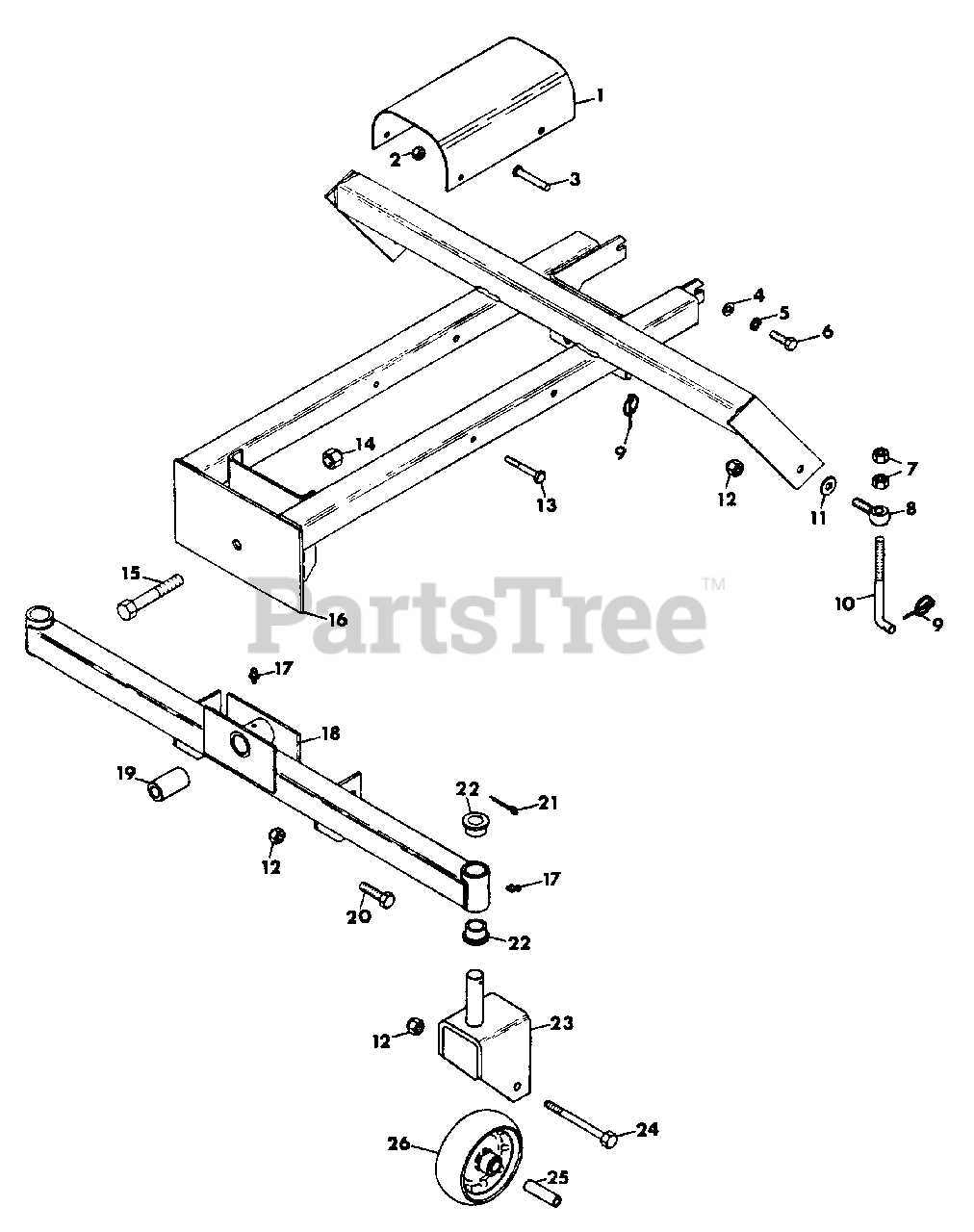

MOWER FRAME Parts Diagram

  • Title
1

Gravely 035012

GUARD, PTO SHAFT
(Superseded to 08537700)

$

$

Not available

2

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 022113

PIN, CLEVIS
(Superseded to 06811100)

$

$

Not available

4

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 120382

WASHER, LOCK 3/8
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 120238

NUT, JAM 1/2-13 HEX
(Superseded to 06500911)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 035165

BOLT, EYE
(Superseded to 07015300)

$32.99

$

In Stock, only 1 left!

0

9

Gravely 023468

PIN, KLIK
(Superseded to 07014500)

$5.99

$

Usually ships in 4-12 days

0

10

Gravely 031921

ROD, HEIGHT ADJUSTMENT
(Superseded to 08654300)

$

$

Not available

11

Gravely 120389

WASHER, FLAT .500X1.250X.083
(Superseded to 06441000)

$2.99

$

In Stock, Qty 6

0

12

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 180091

BOLT, HEX 5/16-18X2.5
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

14

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

15

Gravely 271781

BOLT, HEX 3/4-10X4.5
(Superseded to 05968800)

$9.49

$

In Stock, only 1 left!

0

16

Gravely 034913

FRAME, MOWER
(Superseded to 21235700)

$

$

Not available

17

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

18

Gravely 034908

AXLE
(Superseded to 21235600)

$

$

Not available

19

Gravely 034920

TUBE, PIVOT
(Superseded to 08911800)

$

$

Not available

20

Gravely 180176

BOLT, HEX 1/2-13X1.375
(Superseded to 05935800)

$

$

Not available

21

Gravely 137253

PIN, COTTER 3/16X1.625
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

22

Gravely 022098

BEARING, FLANGED
(Superseded to 05422400)

$14.99

$

Usually ships in 4-12 days

0

23

Gravely 034923

FORK, CASTER
(Superseded to 21236100)

$

$

Not available

24

Gravely 433163

BOLT, HEX 1/2-13X5.00
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

25

Gravely 011950

BUSHING, WHEEL .520X.750X3.312
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

26

Gravely 031386

WHEEL, GAUGE
(Superseded to 21211900)

$

$

Not available
