989016 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp, 4 Speed (SN: 000101 & Above) ELECTRICAL Parts Diagram

Pro-Master Zero-Turn Mower, 16hp, 4 Speed

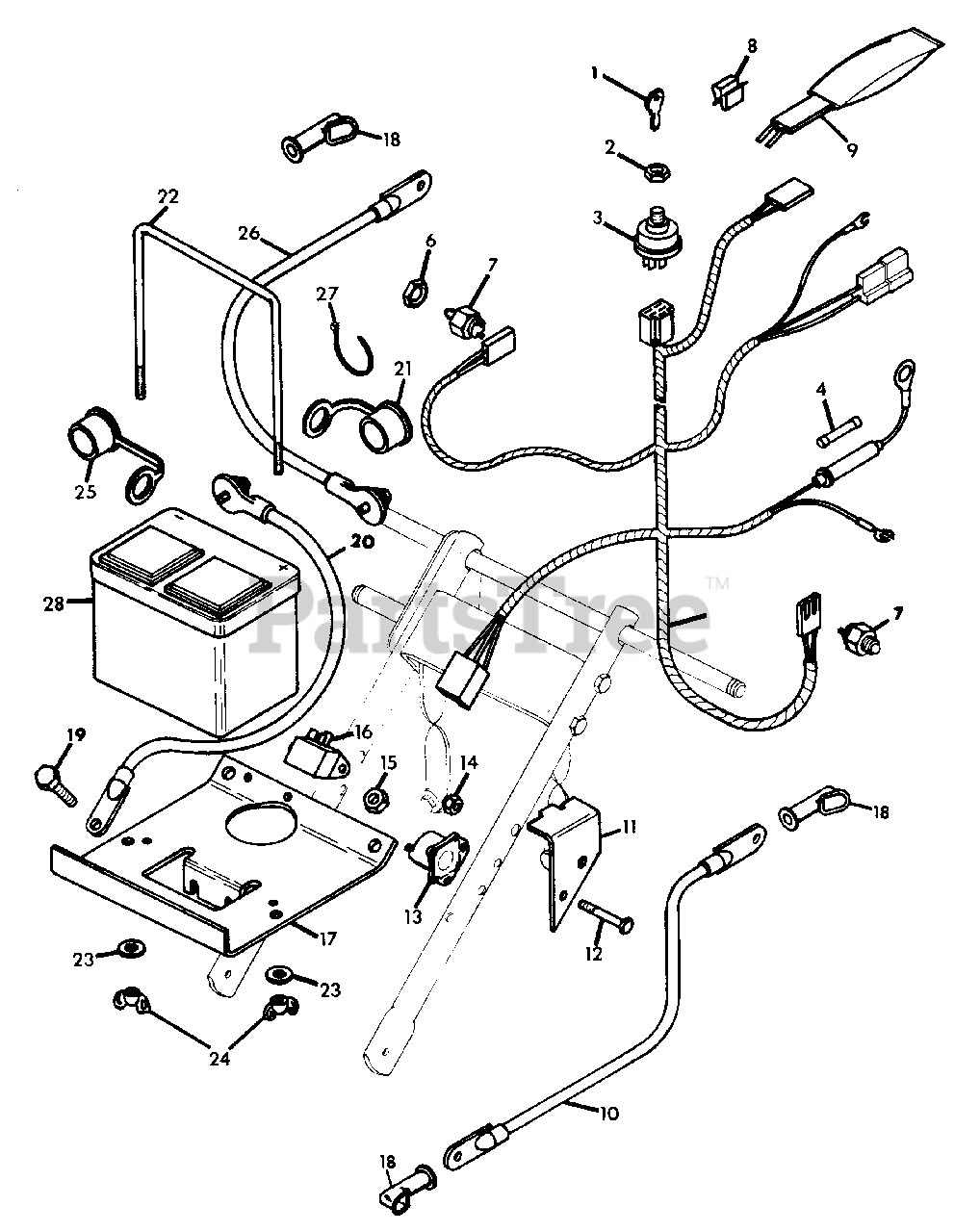

ELECTRICAL Parts Diagram

  • Title
1

Gravely 018570

KEY, IGNITION
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

2

Gravely 019666

NUT, JAM 9/16-24
(Superseded to 20287700)

$3.99

$

In Stock, only 1 left!

0

3

Gravely 019223

SWITCH, IGNITION
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

4

Gravely 024858

FUSE, 30 AMP
(Superseded to 20420300)

$

$

Not available

5

Gravely 034558

HARNESS, WIRING
(Superseded to 20603700)

$

$

Not available

6

Gravely 107354

NUT, STAMPED
(Superseded to 07015100)

$3.99

$

Usually ships in 4-12 days

0

7

Gravely 020916

SWITCH, INTERLOCK
(Superseded to 02913100)

$45.99

$

In Stock, Qty 7

0

8

Gravely 011286

CLIP, WIRE
(Superseded to 20070500)

$

$

Not available

9

Gravely 035062

SWITCH, SEAT
(Superseded to 08538400)

$

$

Not available

10

Gravely 034475

CABLE
(Superseded to 20603400)

$

$

Not available

11

Gravely 034575

BRACKET, PTO
(Superseded to 08910000)

$

$

Not available

12

Gravely 180044

BOLT, HEX 1/4-20X2.00
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

13

Gravely 007277

SWITCH, MAG
(Superseded to 20031900)

$51.99

$

In Stock, only 1 left!

0

14

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

15

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

16

Gravely 018009

REGULATOR, RECTIFIER
(Superseded to 08505600)

$143.99

$

Usually ships in 4-12 days

0

17

Gravely 034548

BOX, BATTERY
(Superseded to 08925300)

$

$

Not available

18

Gravely 033847

BOOT, BATTERY CABLE
(Superseded to 03384700)

$

$

Not available

19

Gravely 180132

BOLT, HEX 3/8-16X2.25
(Superseded to 05901640)

$3.99

$

In Stock, Qty 20+

0

20

Gravely 034954

CABLE, NEGATIVE BATTERY
(Superseded to 08912100)

$

$

Not available

21

Gravely 034953

COVER, BATTERY POS.
(Superseded to 07523300)

$

$

Not available

22

Gravely 034956

ROD, BATTERY
(Superseded to 09027200)

$

$

Not available

23

Gravely 120392

WASHER, FLAT .281X.625X.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

24

Gravely 010413

NUT, WING 1/4-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 19

0

25

Gravely 034952

COVER, BATTERY NEG.
(Superseded to 07520200)

$

$

Not available

26

Gravely 034955

CABLE, POSITIVE BATTERY
(Superseded to 08912200)

$

$

Not available

27

Gravely 010629

TIE, CABLE
(Superseded to 07517300)

$

$

Not available

28

Gravely 035072

BATTERY, DELCO MAINTENANCE-FREE #101 -REPLACEMENT BATTERY #83-50
(Superseded to 78904500)

$

$

Not available
