989015 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) TRANSAXLE ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

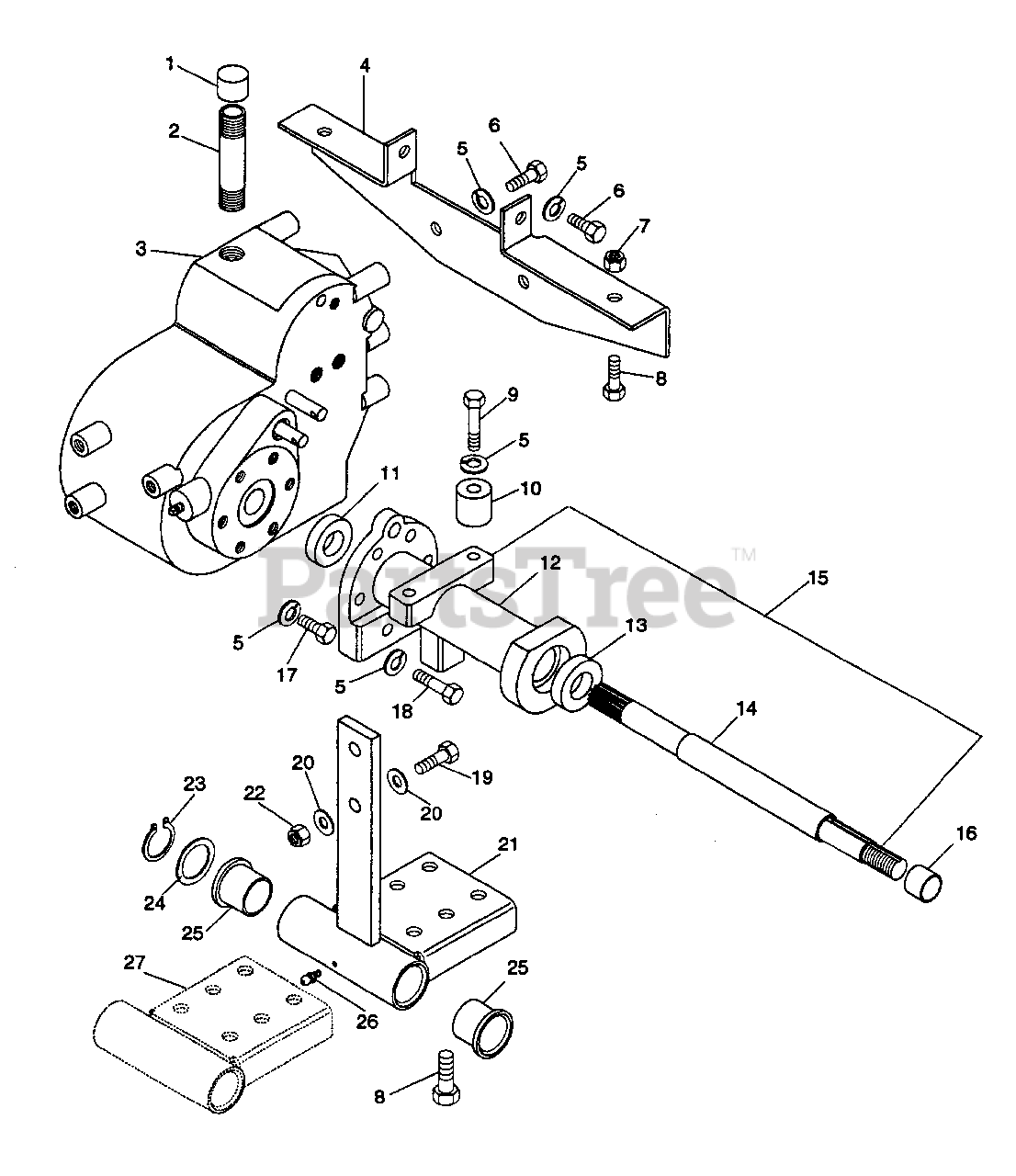

TRANSAXLE ASSEMBLY Parts Diagram

  • Title

1

Gravely 07024100

CAP, PIPE .75 UNFIN MAL LR

$

$

Not available

2

Gravely 07025100

NIPPLE, PIPE .75 X 5.0 UNFIN STL

$

$

Not available

3

Gravely 09028500

TRANSAXLE

Note: (989014)

$

$

Not available

3

Gravely 09026400

TRANSAXLE

Note: (989015, 049, 050)

$

$

Not available

4

Gravely 08959000

PLT, TRANSAXLE

$

$

Not available

5

Gravely 06305100

WSHR-LOCK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 16

0

6

Gravely 05914600

BLT-HEX .50-13 X 1.25 PL GR 5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

7

Gravely 06515800

NUT-LK-NYL .625-11 PL
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

8

Gravely 05939100

BLT-HEX .625-11 X 1.50
(Superseded to 05968700)

$3.99

$

In Stock, only 3 left!

0

9

Gravely 05921300

BLT-HEX .50-13 X 2.75 PL GR 5
(Superseded to 05965500)

$4.99

$

Usually ships in 4-12 days

0

10

Gravely 08951100

SPCR, FRAME

$

$

Not available

11

Gravely 09028700

RING, ALIGNMENT

$14.99

$

In Stock, only 2 left!

0

12

Gravely 20818200

HOUSING, AXLE

$

$

Not available

13

Gravely 20121400

BRG, BALL 1.18 X 2.440 X .629
(Superseded to 05421200)

$38.99

$

In Stock, only 1 left!

0

14

Gravely 20818300

AXLE
(Superseded to 21512900)

$

$

Not available

15

Gravely 09028800

ASM, AXLE HOUSING
(Superseded to 58902900)

$

$

Not available

16

Gravely 08936600

SPCR, AXLE 1.75 X .800 ST

$22.99

$

Usually ships in 4-12 days

0

17

Gravely 05920000

BLT-HEX .50-13 X 1.50 PL GR 5
(Superseded to 05962000)

$3.99

$

In Stock, only 1 left!

0

18

Gravely 05914300

BLT-HEX .50-13 X 2.25 PL GR 5
(Superseded to 05961000)

$3.49

$

In Stock, Qty 5

0

19

Gravely 05936000

BLT-HEX .50-13 X 1.75
(Superseded to 05901939)

Note: (989015, 050)

$3.99

$

In Stock, only 2 left!

0

20

Gravely 06429500

WSHR-FL-STL .531 X 1.062 X .095
(Superseded to 06441900)

Note: (989015, 050)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 08959200

WLDMT, PIVOT BRKT

Note: (989015, 050)

$

$

Not available

22

Gravely 06512900

NUT-LK-NYL .50-13 PL
(Superseded to 06540600)

Note: (989015, 050)

$2.49

$

In Stock, only 3 left!

0

23

Gravely 05715500

RING, RETAINING

$5.99

$

Usually ships in 4-12 days

0

24

Gravely 06432200

WSHR-THRST 1.50 X 2.18 X .063

$13.99

$

In Stock, only 1 left!

0

25

Gravely 05517600

BSHG-FLG 1.154 X 1.756 X 1.688 X 2.2

$9.49

$

In Stock, only 4 left!

0

26

Gravely 07012600

FTG., LUBE; .25-28 SELF-THREAD
(Superseded to 07001806)

$

$

Not available

27

Gravely 08992700

WLDMT, PIVOT BRACKET

Note: (989014, 049)

$

$

Not available
