989014 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) STEERING AXLE ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

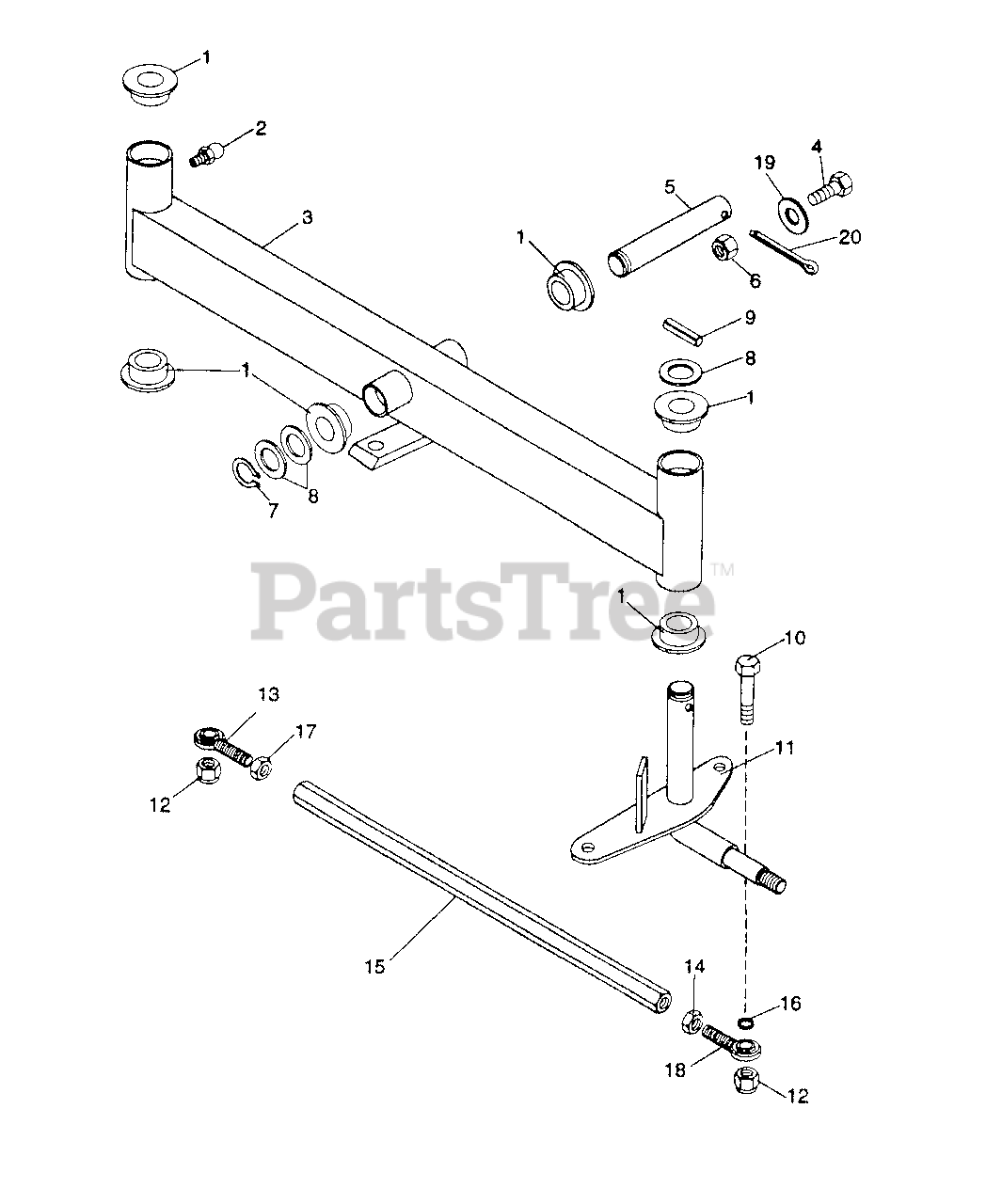

STEERING AXLE ASSEMBLY Parts Diagram

  • Title

1

Gravely 05520100

BSHG-FLG 1.020 X 1.385 X .75 X 1.75 NY

$11.99

$

In Stock, Qty 18

0

2

Gravely 07012600

FTG, LUBE; .25-28 SELF THREAD
(Superseded to 07001806)

$

$

Not available

3

Gravely 08995100

WLDMT, AXLE

$

$

Not available

4

Gravely 05934000

BLT-HEX .25-20 X .875

$1.99

$

Usually ships in 4-12 days

0

5

Gravely 09016500

SHAFT, PIVOT

$

$

Not available

6

Gravely 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

7

Gravely 05712300

RG-RTNG-EXT .906 X .078
(Superseded to 05707300)

$2.99

$

In Stock, Qty 9

0

8

Gravely 05421600

BRG-R-THRST 1.002 X 1.552 X .030
(Superseded to 06435300)

$4.99

$

In Stock, only 3 left!

0

9

Gravely 05800400

PIN-ROLL .250 X 1.50

$

$

Not available

10

Gravely 05923500

BLT-HEX .50-13 X 2.00 PL GR 5
(Superseded to 05901929)

$

$

Not available

11

Gravely 09006300

WLDMT, KINGPIN L.H.

$39.99

$

Usually ships in 4-12 days

0

11

Gravely 09006400

WLDMT, KINGPIN R.H.

$

$

Not available

12

Gravely 06512900

NUT-LK-NYL .50-13 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

13

Gravely 08959600

ASM, ROD ENDR.H.

$38.99

$

Usually ships in 4-12 days

0

14

Gravely 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

15

Gravely 09004500

ROD, TIE

$

$

Not available

16

Gravely 06429500

WSHR-FL-STL .531 X 1.062 X .095
(Superseded to 06441900)

$0.99

$

In Stock, Qty 20+

0

17

Gravely 06510500

NUT-JAM .50-20 LH THD PL
(Superseded to 06538300)

$

$

Not available

18

Gravely 09002500

ASM, ROD ENDL.H.

$

$

Not available
