989012 (PM 300) - Gravely Pro-Master Zero-Turn Mower, 20hp ONAN (SN: 000101 & Above) ELECTRICAL SYSTEM Parts Diagram

Pro-Master Zero-Turn Mower, 20hp ONAN

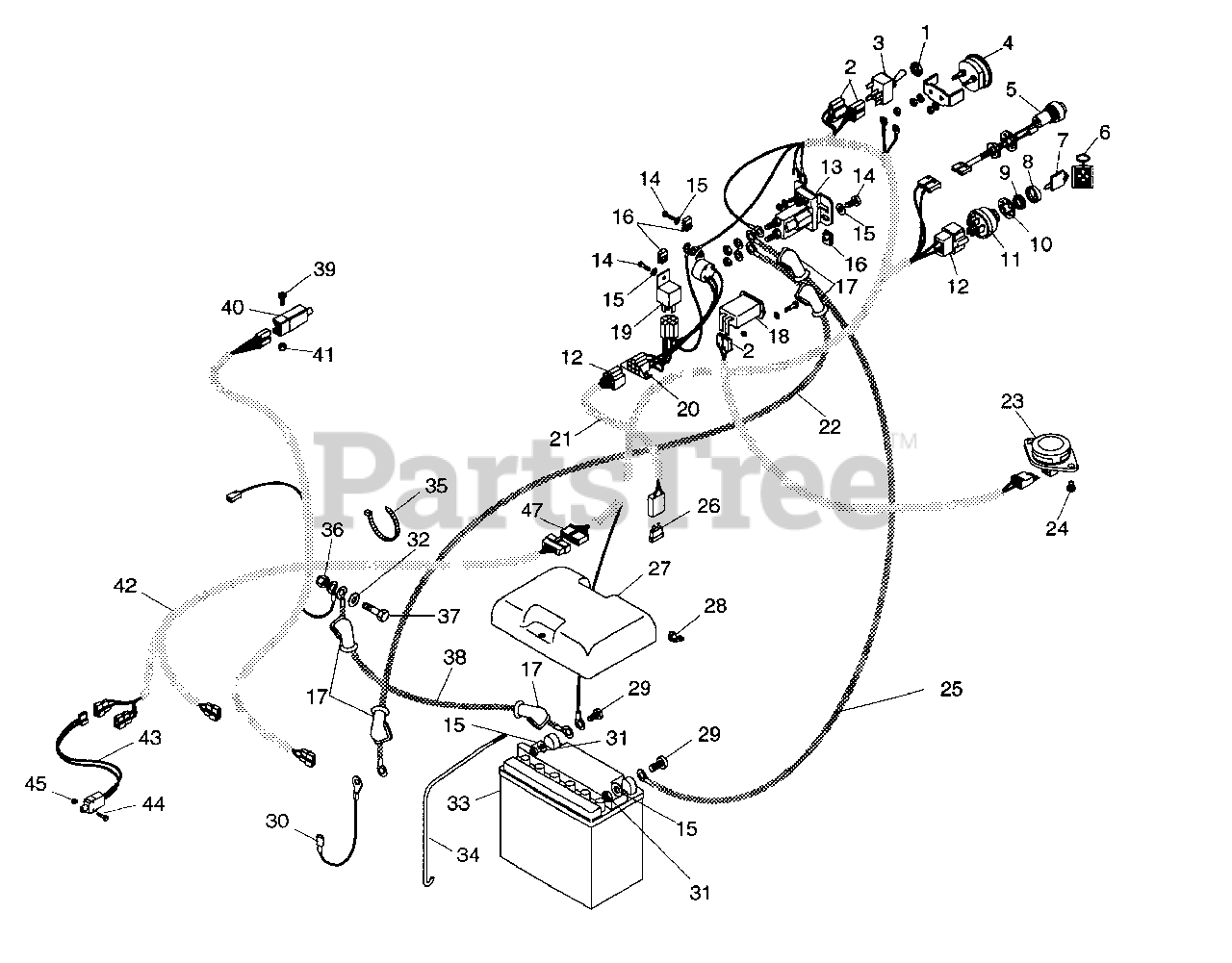

ELECTRICAL SYSTEM Parts Diagram

  • Title

1

Gravely 045987

Nut .50-27
(Superseded to 06520700)

$

$

Not available

2

Gravely 038059

Terminal
(Superseded to 08540001)

$3.99

$

In Stock, Qty 5

0

3

Gravely 045848

Switch Assembly
(Superseded to 03454900)

$56.99

$

In Stock, only 1 left!

0

4

Gravely 021848

Gauge - Ammeter
(Superseded to 03490800)

$

$

Not available

5

Gravely 048543

Light Indicator
(Superseded to 03490600)

$

$

Not available

6

Gravely 045842

Key Chain
(Superseded to 03490000)

$

$

Not available

7

Gravely 045488

Ignition Switch Key
(Superseded to 02460700)

$7.99

$

In Stock, Qty 20+

0

8

Gravely 045490

Cap-Ignition Switch
(Superseded to 07517700)

$3.99

$

In Stock, Qty 9

0

9

Gravely 045489

Nut-Panel .562-24 Greco
(Superseded to 06517400)

$20.99

$

In Stock, only 1 left!

0

10

Gravely 019667

Washer-Lock-Internal .563 x .040
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

11

Gravely 019223

Ignition Switch
(Superseded to 59211800)

$68.99

$

In Stock, Qty 13

0

12

Gravely 038058

Connector
(Superseded to 20645101)

$7.99

$

In Stock, Qty 7

0

13

Gravely 045071

Solenoid
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

14

Gravely 160541

Screw-Machine .25-20
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

15

Gravely 050365

Washer-Flat-Steel .281 x .620 x .065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 011676

Nut-Speed .25-20
(Superseded to 07016800)

$

$

Not available

17

Gravely 033847

Boot, Insulator
(Superseded to 03384700)

$

$

Not available

18

Gravely 038256

Hour Meter
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

19

Gravely 040216

Relay
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

20

Gravely 040215

Module, Time Delay
(Superseded to 59000400)

Note: (Onan Units)

$185.99

$

Usually ships in 4-12 days

0

20

Gravely 040313

Module, Time Delay
(Superseded to 59000300)

Note: (Kohler Units)

$137.99

$

Usually ships in 4-12 days

0

21

Gravely 050508

Harness, Wiring
(Superseded to 08996500)

$

$

Not available

22

Gravely 051992

Assembly, Cable Electrical
(Superseded to 09008800)

Note: (18 HP Units)

$19.99

$

Usually ships in 4-12 days

0

22

Gravely 049101

Cable, Battery to Solenoid
(Superseded to 08987000)

Note: (20 HP Units)

$51.99

$

In Stock, only 1 left!

0

23

Gravely 045036

Seat Switch
(Superseded to 03490500)

$15.99

$

In Stock, only 1 left!

0

24

Gravely 160515

Screw-Machine .25-20 x .50
(Superseded to 06110900)

$2.49

$

Usually ships in 4-12 days

0

25

Gravely 047649

Cable, Starter
(Superseded to 03492500)

$21.99

$

Usually ships in 4-12 days

0

26

Gravely 045037

Fuse, 25 Amp
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

27

Gravely 044348

Cover, Battery
(Superseded to 04912900)

$11.99

$

In Stock, only 2 left!

0

28

Gravely 010413

Nut-Wing .250-20
(Superseded to 06537500)

$4.99

$

In Stock, Qty 13

0

29

Gravely 180020

Bolt-Hex .25-20 x .75 Grade 5
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Gravely 047616

Assembly, Cable
(Superseded to 08983300)

Note: (Onan Units)

$

$

Not available

31

Gravely 120375

Nut-Hex .250-20
(Superseded to 06500916)

$0.99

$

In Stock, Qty 13

0

32

Gravely 064123

Washer-Flat-Steel .344 x .688 x .065
(Superseded to 06401017)

Note: (Onan Units)

$0.99

$

In Stock, Qty 20+

0

33

Gravely 051188

Battery
(Superseded to 09206000)

$

$

Not available

34

Gravely 051246

Rod, Battery
(Superseded to 09030400)

$

$

Not available

35

Gravely 041634

Tie, Wrap, Black
(Superseded to 07519900)

$3.49

$

Usually ships in 4-12 days

0

36

Gravely 419455

Nut-Locking-Nylon .312-18
(Superseded to 06500820)

Note: (Kohler Units)

$0.99

$

In Stock, Qty 20+

0

37

Gravely 180079

Bolt-Hex .31-18 x 1.00 Grade 5
(Superseded to 05901701)

Note: (Kohler Units)

$1.49

$

In Stock, Qty 20+

0

38

Gravely 042130

Cable, Negative Battery
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

39

Gravely 159929

Screw-Machine 10-24 x .625
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

40

Gravely 046219

Switch, Interlock
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

41

Gravely 190254

Nut-Locking 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

42

Gravely 050509

Harness, Wiring
(Superseded to 08996600)

Note: (Kohler Units)

$

$

Not available

42

Gravely 050510

Harness, Wiring
(Superseded to 08996700)

Note: (Onan Units)

$

$

Not available

43

Gravely 050480

Switch
(Superseded to 08996200)

$52.99

$

Usually ships in 4-12 days

0

44

Gravely 159353

Screw-Machine 6-32 x .875
(Superseded to 06112900)

$

$

Not available

45

Gravely 427254

Nut-Locking-Machine 6-32
(Superseded to 06538900)

$

$

Not available

46

Gravely 214736

Connector, Female

$

$

Not available

47

UNKNOWN

UNKNOWN

$

$

Not available
