989011 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) SEAT AND DECK ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

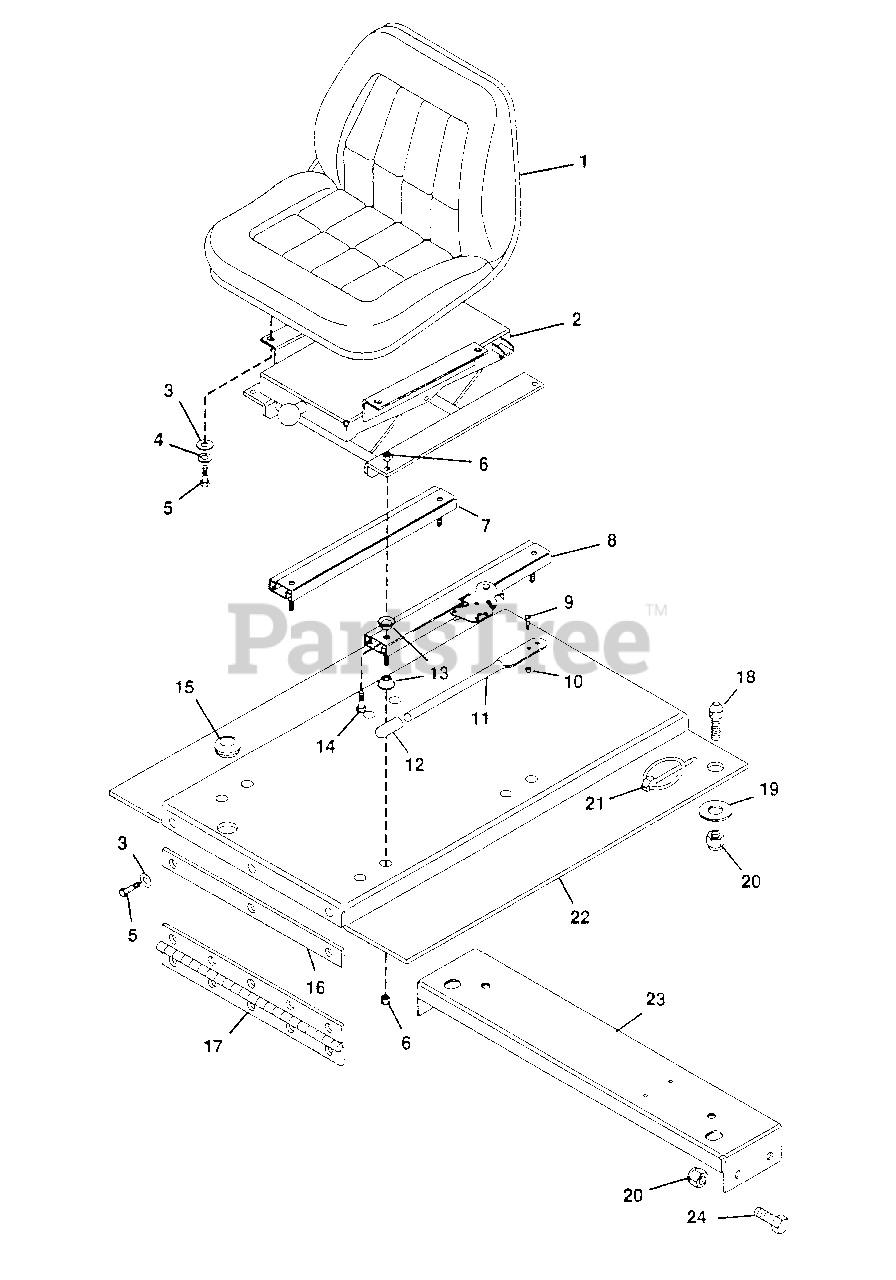

SEAT AND DECK ASSEMBLY Parts Diagram

  • Title
1

Gravely 046220

Seat, ProMaster
(Superseded to 08975800)

$283.99

$

Usually ships in 4-12 days

0

2

Gravely 045230

Seat, Suspension
(Superseded to 08967500)

$

$

Not available

3

Gravely 120393

Washer, Flat .344x.688x.065
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 120214

Washer, Lock 5/16 Reg.
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 180077

Bolt, Hex 5/16-18x.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 419455

Nut, Lock 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

7

Gravely 035642

Adjuster, Seat
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

8

Gravely 035641

Adjuster, Seat w/Latch
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

9

Gravely 159929

Screw, Machine 10-24x.625 PHD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

10

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 039063

Handle, Seat Slide
(Superseded to 03416500)

$

$

Not available

12

Gravely 043192

Tips, Brake Lock Lever
(Superseded to 07503800)

$1.49

$

In Stock, only 4 left!

0

13

Gravely 035670

Bush., Flg. .375x1.16x.320 Stl.
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

14

Gravely 180079

Bolt, Hex 5/16-18x1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 045290

Grommet, .75
(Superseded to 07530600)

$2.49

$

Usually ships in 4-12 days

0

16

Gravely 044570

Plate, Clamping
(Superseded to 01539100)

$

$

Not available

17

Gravely 039090

Hinge
(Superseded to 03102800)

$

$

Not available

18

Gravely 045148

Pin, Catch
(Superseded to 08964800)

$

$

Not available

19

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

20

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

21

Gravely 011902

Pin, Klik
(Superseded to 07015400)

$5.99

$

In Stock, only 1 left!

0

22

Gravely 045117

Plate, Deck
(Superseded to 08963900)

$

$

Not available

23

Gravely 045147

Bracket, Deck Plate
(Superseded to 08964700)

$

$

Not available

24

Gravely 180173

Bolt, Hex 1/2-13x1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

Gravely 044143

Kit, Pro Master Arm Rest
(Superseded to 78901400)

$

$

Not available

Gravely 049768

Decal, Start
(Superseded to 05215000)

$

$

Not available
