989007 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 35hp Yanmar (SN: 000101 & Above) HOOD ASSEMBLY Parts Diagram

Pro-Master Zero-Turn Mower, 35hp Yanmar

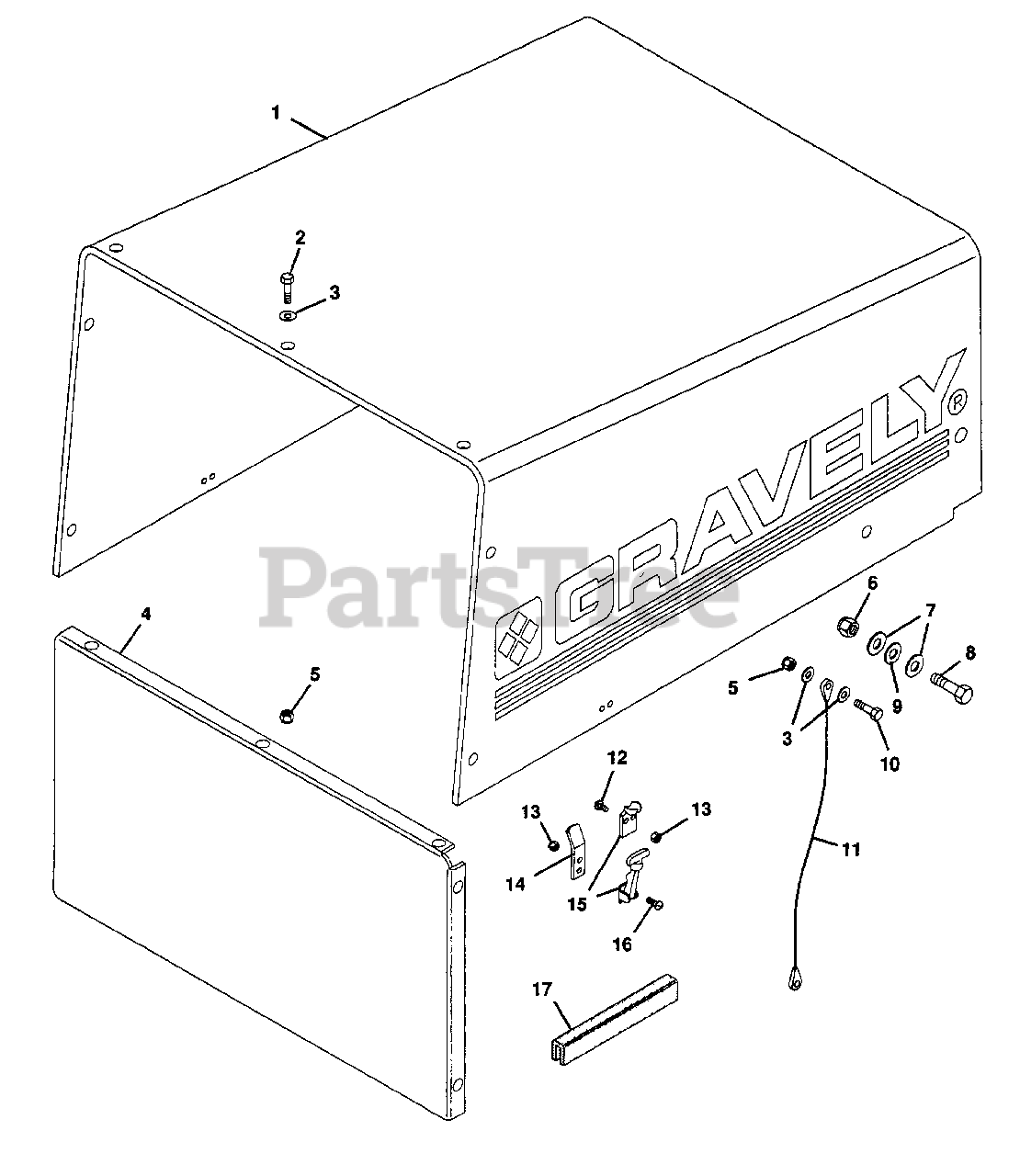

HOOD ASSEMBLY Parts Diagram

  • Title
1

Gravely 050599

Hood, Silk Screen
(Superseded to 09013500)

$

$

Not available

2

Gravely 180018

Bolt, Hex 1/4-20x.625
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

3

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

4

Gravely 050598

Baffle, Hood
(Superseded to 08998200)

$

$

Not available

5

Gravely 419454

Nut, Lock 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

7

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

8

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

9

Gravely 020775

Washer, Nylon .375x.75x.060
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

10

Gravely 180021

Bolt, Hex 1/4-20x.875
(Superseded to 05934000)

$1.99

$

Usually ships in 4-12 days

0

11

Gravely 044486

Cable, Hood
(Superseded to 06927100)

$14.99

$

In Stock, only 1 left!

0

12

Gravely 159920

Screw, Machine 10-24x.50 PHD
(Superseded to 06113000)

$1.99

$

In Stock, Qty 5

0

13

Gravely 190254

Nut, Lock 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

14

Gravely 046295

Plate, Guide
(Superseded to 08977300)

$

$

Not available

15

Gravely 045554

Latch
(Superseded to 08969700)

$

$

Not available

16

Gravely 159947

Screw, Machine 10-24x.75 PHD
(Superseded to 06111200)

$2.49

$

Usually ships in 4-12 days

0

17

Gravely 049767

Strip, Cowl
(Superseded to 00918200)

$5.99

$

Usually ships in 4-12 days

0

Gravely 011989

Decal, Electrical System Warning
(Superseded to 05216700)

$9.99

$

Usually ships in 4-12 days

0

Gravely 044074

Decal, Side Stripe LH & RH
(Superseded to 07703800)

$

$

Not available

Gravely 046447

Decal, Maintenance
(Superseded to 07716900)

$

$

Not available
