989005 (PM 50) - Gravely Pro-Master Zero-Turn Mower, 16hp Magnum (SN: 000101 & Above) MOWER DRIVE Parts Diagram

Pro-Master Zero-Turn Mower, 16hp Magnum

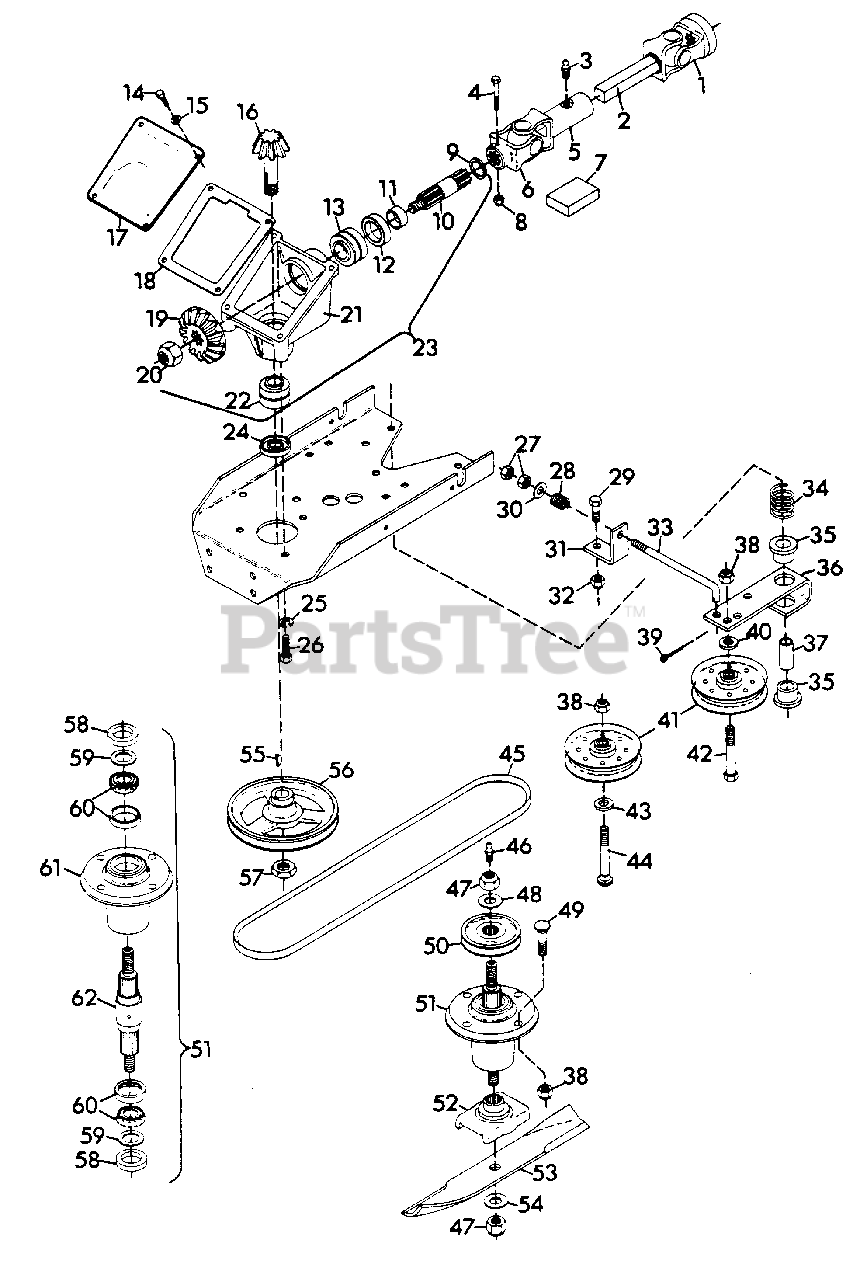

MOWER DRIVE Parts Diagram

  • Title

1

Gravely 045954

YOKE
(Superseded to 20823200)

$258.99

$

Usually ships in 4-12 days

0

2

Gravely 019074

SHAFT, PROP. SQ. BAR
(Superseded to 08713900)

$646.99

$

Usually ships in 4-12 days

0

3

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

4

Gravely 180044

BOLT, HEX 1/4-20X2
(Superseded to 05901740)

$2.49

$

Usually ships in 4-12 days

0

5

Gravely 013518

U-JOINT, FEMALE END
(Superseded to 08700200)

$

$

Not available

6

Gravely 046086

YOKE(NEAPCO)

Note: (NEAPCO)

$

$

Not available

6

Gravely 046087

YOKE(ROSCOMMON)

Note: (ROSCOMMON)

$

$

Not available

7

Gravely 012134

KIT, REPAIR U-JOINT(ROCK STD.)
(Superseded to 03155800)

Note: (ROCK STD.)

$

$

Not available

7

Gravely 024560

KIT, REPAIR U-JOINT(NEAPCO)
(Superseded to 03155800)

Note: (NEAPCO)

$

$

Not available

8

Gravely 419454

NUT, LOCK 1/4-20
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0

9

Gravely 014642

RING, RETAINING 1.000 SHAFT
(Superseded to 05711600)

$9.49

$

Usually ships in 4-12 days

0

10

Gravely 031412

SHAFT, DRIVE
(Superseded to 08729500)

$234.99

$

Usually ships in 4-12 days

0

11

Gravely 014641

SPACER
(Superseded to 08700500)

$23.99

$

Usually ships in 4-12 days

0

12

Gravely 014646

SEAL, OIL 1.25X1.987X.250
(Superseded to 05613700)

$14.99

$

In Stock, only 1 left!

0

13

Gravely 014640

ASSEMBLY, BEARING 1.000X1.980X1.243
(Superseded to 05419300)

$104.99

$

Usually ships in 4-12 days

0

14

Gravely 180016

BOLT, HEX 1/4-20X.50
(Superseded to 05901705)

$0.99

$

In Stock, Qty 20+

0

15

Gravely 120380

WASHER, LOCK 1/4
(Superseded to 06401009)

$0.99

$

In Stock, Qty 20+

0

16

Gravely 045588

SHAFT, GEAR PINION
(Superseded to 08790400)

$

$

Not available

17

Gravely 010982

COVER, GEAR HOUSING
(Superseded to 08860500)

$43.99

$

Usually ships in 4-12 days

0

18

Gravely 011231

GASKET, GEAR HOUSING
(Superseded to 08570100)

$5.99

$

In Stock, only 1 left!

0

19

Gravely 045587

GEAR, BEVEL
(Superseded to 08790300)

$240.99

$

Usually ships in 4-12 days

0

20

Gravely 456007

NUT, LOCK 3/4-10
(Superseded to 06540800)

$5.99

$

In Stock, Qty 6

0

21

Gravely 014636

CASTING, GEAR BOX
(Superseded to 08700400)

$298.99

$

Usually ships in 4-12 days

0

22

Gravely 014644

ASSEMBLY, BEARING .750X1.781X1.499
(Superseded to 05419400)

$105.99

$

Usually ships in 4-12 days

0

23

Gravely 031410

ASSEMBLY, DRIVE 50" MOWER
(Superseded to 08570300)

$1066.99

$

Usually ships in 4-12 days

0

24

Gravely 014645

SEAL, OIL 1.250X1.686X.313
(Superseded to 05613600)

$15.99

$

In Stock, only 4 left!

0

25

Gravely 120384

WASHER, LOCK 1/2
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

26

Gravely 180173

BOLT, HEX 1/2-13X1.00
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

27

Gravely 120369

NUT, HEX 3/8-24
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

28

Gravely 011779

SPRING, COMP. TYPE 1X.78X338 LB/IN
(Superseded to 08327000)

$15.99

$

In Stock, only 2 left!

0

29

Gravely 180176

BOLT, HEX 1/2-13X1.375
(Superseded to 05935800)

$

$

Not available

30

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

31

Gravely 034431

SUPPORT, SPRING
(Superseded to 08537000)

$22.99

$

Usually ships in 4-12 days

0

32

Gravely 435507

NUT, HEX 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

33

Gravely 021111

ROD, IDLER
(Superseded to 08598300)

$42.99

$

Usually ships in 4-12 days

0

34

Gravely 020444

SPRING, COMP.
(Superseded to 08329100)

$13.99

$

In Stock, only 1 left!

0

35

Gravely 010174

BUSHING, NYLON .760X1.00X.600
(Superseded to 05518400)

$4.99

$

In Stock, Qty 20+

0

36

Gravely 034120

ARM, IDLER PIVOT
(Superseded to 08905900)

$82.99

$

Usually ships in 4-12 days

0

37

Gravely 034119

SPACER
(Superseded to 08820500)

$17.99

$

In Stock, only 1 left!

0

38

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

39

Gravely 121224

PIN, COTTER 3/32X1.00

$0.99

$

Usually ships in 4-12 days

0

40

Gravely 014672

SPACER, IDLER .406X.750X.188
(Superseded to 03488200)

$5.99

$

In Stock, Qty 6

0

41

Gravely 021060

SHEAVE, IDLER
(Superseded to 07314800)

$39.99

$

In Stock, Qty 5

0

42

Gravely 180130

BOLT, HEX 3/8-16X2
(Superseded to 05901718)

$2.99

$

In Stock, only 1 left!

0

43

Gravely 120388

WASHER, FLAT .438X1.000X.083
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 126416

BOLT, 3/8-16X1.75 RD HD SQ NK
(Superseded to 06200417)

$3.99

$

In Stock, only 2 left!

0

45

Gravely 011216

BELT, V .500X.312X126.3
(Superseded to 07219600)

$80.99

$

In Stock, only 3 left!

0

46

Gravely 411010

FITTING, LUBE 1/8(LEFT AND RIGHT SPINDLE)
(Superseded to 07012500)

Note: (LEFT AND RIGHT SPINDLE)

$3.99

$

In Stock, only 1 left!

0

46

Gravely 021214

FITTING, LUBE .125 EXT.(CENTER SPINDLE)
(Superseded to 07012100)

Note: (CENTER SPINDLE)

$

$

Not available

47

Gravely 418692

NUT, LOCK 5/8-11
(Superseded to 06540700)

$3.99

$

In Stock, only 2 left!

0

48

Gravely 033845

WASHER, FLAT .687X1.312X.122/.146
(Superseded to 06427400)

$2.49

$

In Stock, only 2 left!

0

49

Gravely 126402

BOLT, 3/8-16X1.25 RD HD SQ NK
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

50

Gravely 043366

SHEAVE, SPINDLE
(Superseded to 08896000)

$

$

Not available

51

Gravely 021306

ASSEMBLY, SPINDLE
(Superseded to 58803600)

$262.99

$

In Stock, only 1 left!

0

52

Gravely 023026

WELDMENT, BLADE CRADLE
(Superseded to 08798300)

$155.99

$

Usually ships in 4-12 days

0

53

Gravely 011234

BLADE
(Superseded to 08861600)

$23.99

$

In Stock, Qty 20+

0

54

Gravely 131016

WASHER, FLAT .656X1.312X.095
(Superseded to 06401118)

$2.49

$

In Stock, only 3 left!

0

55

Gravely 431787

KEY, WOODRUFF .188X.625 HARD
(Superseded to 06609300)

$2.99

$

In Stock, Qty 11

0

56

Gravely 014660

SHEAVE, 1/2X6.50
(Superseded to 08770000)

$140.99

$

Usually ships in 4-12 days

0

57

Gravely 451539

NUT, JAM 3/4-10 HEX HEAVY
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

58

Gravely 021211

SEAL, STEEL
(Superseded to 08722600)

$15.99

$

In Stock, only 1 left!

0

59

Gravely 020743

WASHER, FLAT .975X1.970X.036
(Superseded to 06426900)

$5.99

$

In Stock, Qty 11

0

60

Gravely 038199

ASSEMBLY, BEARING
(Superseded to 21245800)

$25.99

$

In Stock, Qty 20+

0

61

Gravely 021215

HOUSING, BEARING
(Superseded to 08722700)

$134.99

$

Usually ships in 4-12 days

0

62

Gravely 021216

SHAFT, SPINDLE
(Superseded to 58802800)

$85.99

$

In Stock, only 1 left!

0

NS

Gravely 036799

SPRING
(Superseded to 08738900)

$9.49

$

In Stock, only 1 left!

0

NS

Gravely 036800

COLLAR, LOCKING
(Superseded to 08739000)

$25.99

$

Usually ships in 4-12 days

0

NS

Gravely 036801

RING, SNAP
(Superseded to 08739100)

$14.99

$

Usually ships in 4-12 days

0

NS

Gravely 145643

BALL, DETENT
(Superseded to 05429800)

$3.49

$

Usually ships in 4-12 days

0
