989003 (PM 400) - Gravely Pro-Master Zero-Turn Mower, 22hp Yanmar (SN: 000101 & Above) MAIN FRAME Parts Diagram

Pro-Master Zero-Turn Mower, 22hp Yanmar

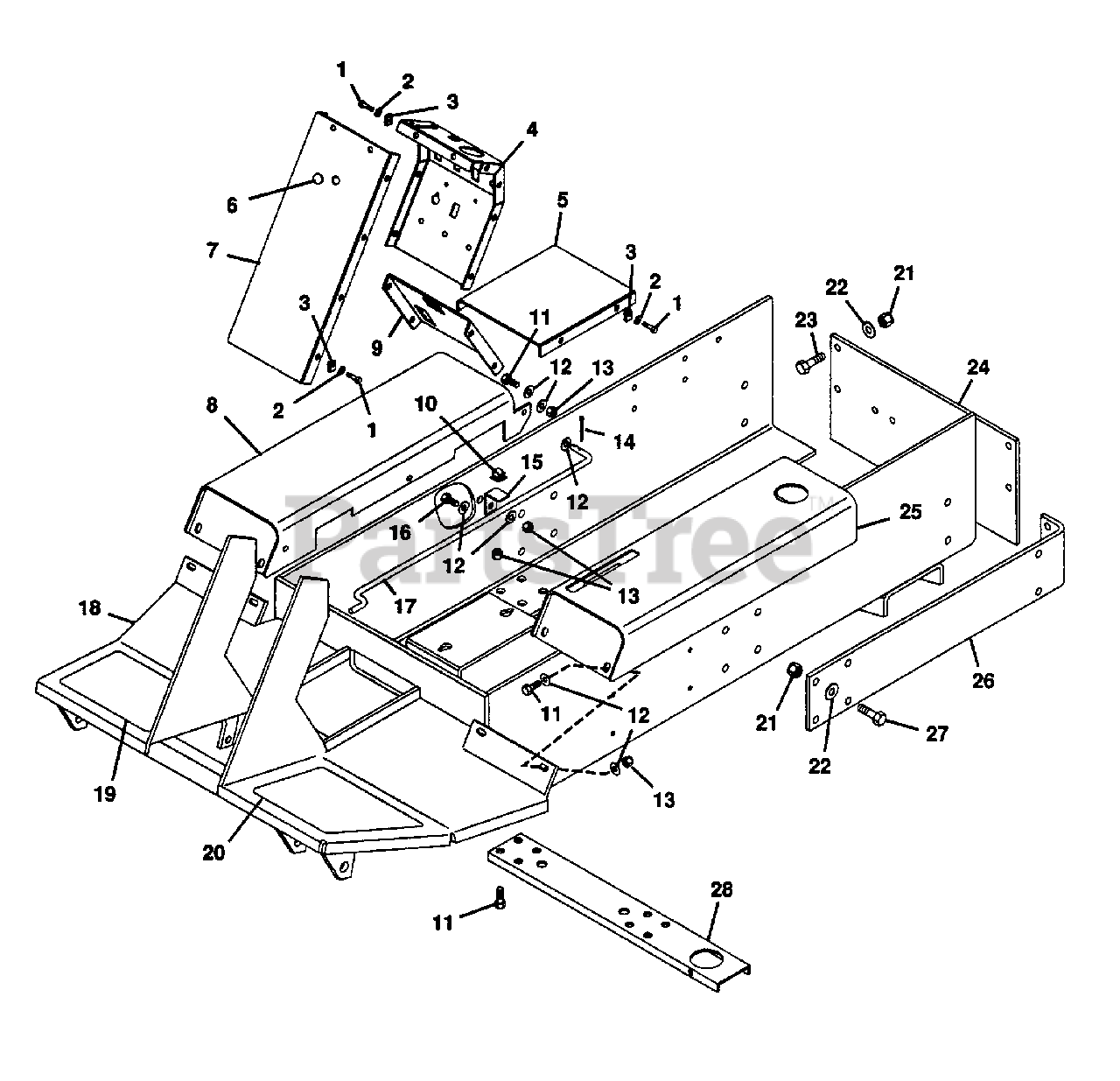

MAIN FRAME Parts Diagram

  • Title
1

Gravely 160541

Screw, Machine 1/4-20 PHD
(Superseded to 06113500)

$2.99

$

In Stock, only 3 left!

0

2

Gravely 120392

Washer, Flat .281x.625x.065
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

3

Gravely 032369

Nut, Retainer
(Superseded to 07009000)

$1.49

$

In Stock, Qty 20+

0

4

Gravely 052070

Panel, Instrument Silk Screen
(Superseded to 09009400)

$

$

Not available

5

Gravely 051951

Plate, Access Silk Screen
(Superseded to 09008700)

$

$

Not available

6

Gravely 051224

Plug, Hole
(Superseded to 07536300)

$

$

Not available

7

Gravely 050691

Panel, Front Silk Screen
(Superseded to 08999500)

$

$

Not available

8

Gravely 050918

Fender, Silk Screen R.H.
(Superseded to 09035800)

$56.99

$

In Stock, only 1 left!

0

9

Gravely 052085

Panel, Brake Lock Silk Screen
(Superseded to 59002300)

$

$

Not available

10

Gravely 051728

Clip, Wire
(Superseded to 06921600)

$

$

Not available

11

Gravely 180121

Bolt, Hex 3/8-16x.875
(Superseded to 05932600)

$2.49

$

In Stock, only 1 left!

0

12

Gravely 120394

Washer, Flat .406x.812x.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 456004

Nut, Lock 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 121222

Pin, Cotter .094x.75
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

15

Gravely 051727

Bracket, Stay Rod
(Superseded to 09007200)

$5.99

$

Usually ships in 4-12 days

0

16

Gravely 180122

Bolt, Hex 3/8-16x1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 045214

Rod, Stay
(Superseded to 09029500)

$

$

Not available

18

Gravely 050686

Weldment, Frame
(Superseded to 09031100)

$

$

Not available

19

Gravely 046369

Cover, R.H. Foot
(Superseded to 08964600)

$14.99

$

Usually ships in 4-12 days

0

20

Gravely 046368

Cover, L.H. Foot
(Superseded to 08964000)

$

$

Not available

21

Gravely 435507

Nut, Lock 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, Qty 5

0

22

Gravely 120396

Washer, Flat .531x1.062x.095
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

23

Gravely 180177

Bolt, Hex 1/2-13x1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

24

Gravely 051204

Plate, Bumper
(Superseded to 09003100)

$

$

Not available

25

Gravely 051384

Fender, Silk Screen L.H.
(Superseded to 09035800)

$56.99

$

In Stock, only 1 left!

0

26

Gravely 052962

Bumper
(Superseded to 09013300)

$

$

Not available

27

Gravely 180175

Bolt, Hex 1/2-13x1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

28

Gravely 050665

Brace, Frame
(Superseded to 08998600)

$

$

Not available

Gravely 033926

Decal, Danger Hand
(Superseded to 05350300)

$31.99

$

Usually ships in 4-12 days

0

Gravely 050923

Decal, Model 22-H
(Superseded to 05215500)

$

$

Not available

Gravely 046990

Decal, Pro Master
(Superseded to 09035800)

$56.99

$

In Stock, only 1 left!

0

Gravely 047322

Decal, Corner
(Superseded to 05214000)

$

$

Not available

Gravely 047478

Decal, Gravely Logo
(Superseded to 09035800)

$56.99

$

In Stock, only 1 left!

0
