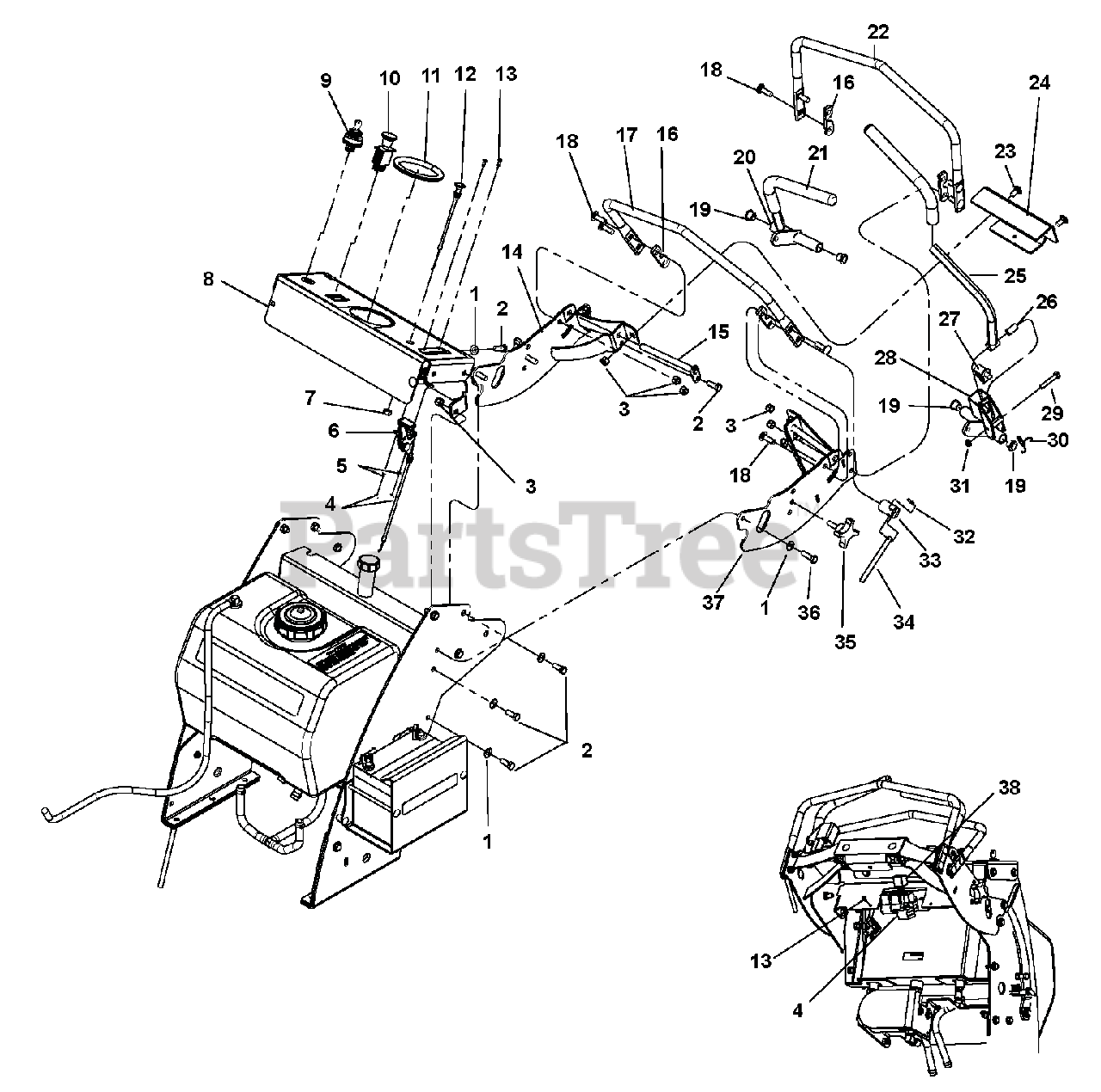

988641 (GHWKA1948S) - Great Dane Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro (SN: 000101 & Above) Handlebar/Console Assembly Parts Diagram

Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro

Handlebar/Console Assembly Parts Diagram

  • Title

1

Ariens 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

4

Ariens 06509100

NUT-KEPS 8-32

$

$

Not available

5

Ariens 00967038

WASHER, #8 MED SPRG LOCK Y
(Superseded to 06300112)

$

$

Not available

6

Ariens 00200413

CABLE, THROTLE 49.5"
(Superseded to 06900714)

$34.99

$

In Stock, only 1 left!

0

7

Ariens 00967054

NUT, 3/8-24 STD HEX Y
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

8

Ariens 50521005

ASSY, CONSOLE W/DECAL NG

$

$

Not available

9

Ariens 00180620

SWITCH, KEY - 3 POSITION

$35.99

$

Usually ships in 4-12 days

0

Ariens D18090

SWITCH, TWO POSITION KEY

$

$

Not available

10

Ariens 00136574

SWITCH, PTO ENGAGEMENT

$28.99

$

In Stock, only 1 left!

0

11

Ariens 00170900

TRIM, RUBBER EDGE 12"

$12.24

$

Usually ships in 4-12 days

0

12

Ariens 00180273

CABLE, CHOKE 48.0"

$52.99

$

In Stock, only 1 left!

0

13

Ariens D24020

SCREW,8-32X1/2

$

$

Not available

14

Ariens 03974451

WLDT, RH HANDLE MOUNT 5 DEG

$

$

Not available

15

Ariens 00203893

WLDT, PIN AND LOCK Y

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 03976751

SHIM, 5 DEG SPEED BAR

$

$

Not available

17

Ariens 03730751

SUPPORT, HANDLE PAINTED

$112.99

$

Usually ships in 4-12 days

0

18

Ariens 06224100

BLT-RDHDSQNK .38-16X1.25 G5YZ
(Superseded to 06200415)

$2.49

$

In Stock, only 4 left!

0

19

Ariens D18013

BRG, FLG .500X.625X.500 BRNZ

$

$

Not available

20

Ariens 03976551

WLDT, RH DRIVE LEVER 5 DEG

$67.99

$

Usually ships in 4-12 days

0

21

Ariens D18093

GRIP, CONTROL
(Superseded to 07500222)

$7.99

$

In Stock, only 1 left!

0

22

Ariens 03730751

SUPPORT, HANDLE PAINTED

$112.99

$

Usually ships in 4-12 days

0

23

Ariens 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

24

Ariens 03974651

PLATE, HANDLE MOUNT LINK

$

$

Not available

25

Ariens 03976651

WLDT, LH DRIVE LEVER 5 DEG

$

$

Not available

26

Ariens D33004

SPACER, .500 X .330 X .980

$

$

Not available

27

Ariens AM103119

SWITCH, SEAT OVERIDE (N.O.)
(Superseded to 02754100)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

28

Ariens 03974551

WLDT, LH HANDLE MOUNT 5 DEG

$

$

Not available

29

Ariens 05957400

BLT-HEX .31-18X1.75 GR5 YWZC
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

30

Ariens D38003

SPRING, TOR 1.00X.062 Y

$

$

Not available

31

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 34H60

PIN, SPRING

$

$

Not available

33

Ariens D13308

BASE, LOCK LEVER Y

$

$

Not available

34

Ariens D13309

LEVER, LOCK Y

$

$

Not available

35

Ariens 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

36

Ariens 05958000

BLT-HEX .38-16X1.25 GR5 YWZC
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 03974551

WLDT, LH HANDLE MOUNT 5 DEG

$

$

Not available

38

Ariens 00102770

RELAY, ISO MINI ELEC.

$21.99

$

Usually ships in 4-12 days

0

39

Ariens 04039200

HARNESS, WIRE NON ELEC PB WALK

Note: (NS)

$206.99

$

Usually ships in 4-12 days

0

40

Ariens 03983502

HARNESS, MY2011FSWLK ELE START

Note: (NS)

$

$

Not available
