988641 (GHWKA1948S) - Great Dane Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro (SN: 000101 & Above) Fuel Tank and Up Right Assembly Parts Diagram

Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro

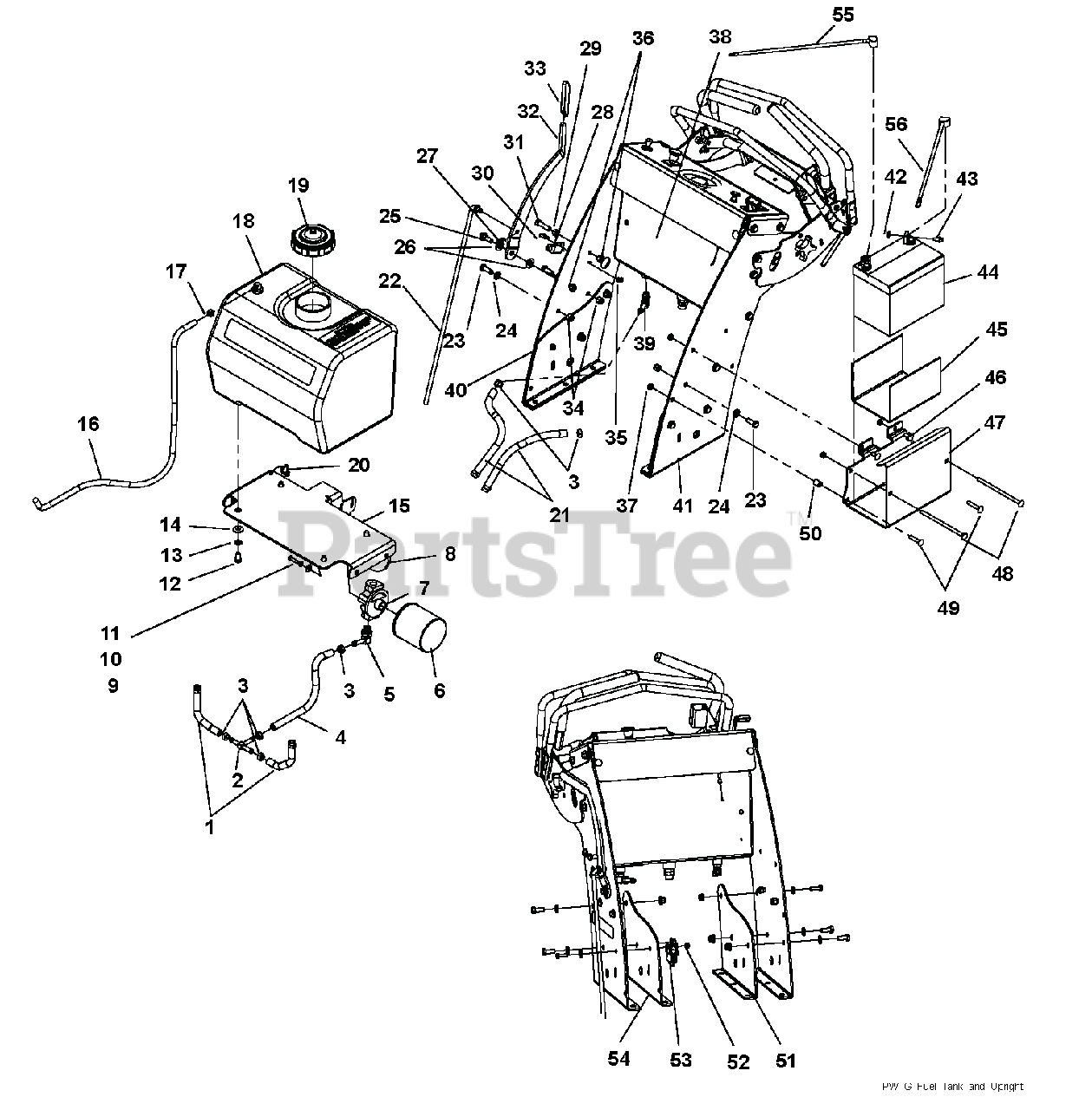

Fuel Tank and Up Right Assembly Parts Diagram

  • Title

1

Ariens 00200455

HOSE, HYD 3/8 X 6.00

$

$

Not available

2

Ariens M86863

FTG, TUN 3/8 HOSE

$

$

Not available

3

Ariens D18379

CLAMP, HOSE - 1/2" PINCH

$3.99

$

In Stock, only 2 left!

0

4

Ariens 03832605

HOSE, HYD .375X10.5

$14.99

$

Usually ships in 4-12 days

0

5

Ariens 00200464

FTG, 90 BRB-OR 4601-06-08

$17.99

$

Usually ships in 4-12 days

0

6

Ariens GDA10137

FILTER, OIL

$22.99

$

In Stock, only 3 left!

0

7

Ariens 00200463

HEAD, OIL FILTER

$34.99

$

Usually ships in 4-12 days

0

8

Ariens 03911551

GUARD, HYDRO FILTER FLWLK

$

$

Not available

9

Ariens 06400826

FLATWASHER 1/4 USS HRD YZ

$

$

Not available

10

Ariens 960600

Washer, .250 Medium Spring Lock

$

$

Not available

11

Ariens 05947700

BLT-HEX .25-20X1.00 GR5 YWZC
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

12

Ariens 05959400

BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

14

Ariens 00960702

WASHER, .375 REG FLAT Y
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 03853751

BRACKET, FUEL TANK RMHF

$

$

Not available

16

Ariens 00192126

HOSE, FUEL 1/4 X 30.00

$

$

Not available

17

Ariens 03278800

CLAMP, FUEL LINE

$1.49

$

In Stock, Qty 20+

0

18

Ariens 04943500

TANK - FUEL

$

$

Not available

19

Ariens 00181251

CAP, FUEL S/O

$23.99

$

In Stock, only 1 left!

0

20

Ariens 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

21

Ariens 03832604

HOSE, HYD .375X11.5

$

$

Not available

22

Ariens 03858911

ROD, DRIVE CONTROL FW

$54.99

$

Usually ships in 4-12 days

0

23

Ariens 05948700

BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 00135139

BOLT, 1/2X1.06X3/8-16 SLD 5 Y
(Superseded to 07070119)

$3.99

$

Usually ships in 4-12 days

0

26

Ariens 00967398

WASHER, .510X1.00X.068 NYLON

$

$

Not available

27

Ariens 00967353

RING, RUE .375 X .054 X 1.254

$2.49

$

Usually ships in 4-12 days

0

28

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

29

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 00967340

SCREW, 10-24X.625 PAN PHL MACY

$

$

Not available

31

Ariens 05957900

BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

32

Ariens 03886251

LEVER, HAND BRAKE FLOAT WALK

$50.99

$

Usually ships in 4-12 days

0

33

Ariens D18079

GRIP, PVC .250 X 1.00 X 3.63

$3.99

$

Usually ships in 4-12 days

0

34

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

35

Ariens 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

36

Ariens 00964062

LOCKNUT, 3/8-16 CENTER Y
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 00967115

LOCKNUT, 5/16-18 NYLOC Y
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

38

Ariens D35031

WLDT, TANK

$103.99

$

In Stock, only 1 left!

0

39

Ariens D24028

FTG, 90 9/16MOR X 3/8HOSE

$

$

Not available

40

Ariens 03982951

WLDT, RH UPRIGHT TOWER 36 G2

$105.99

$

Usually ships in 4-12 days

0

41

Ariens 03982851

WLDT, LH UPRIGHT TOWER 36 G2

$105.99

$

Usually ships in 4-12 days

0

42

Ariens 00964040

LOCKNUT, 1/4-20 WHIZ Y

$

$

Not available

43

Ariens AA963001

BOLT, 1/4-20X.625 WSH Y

$

$

Not available

44

Ariens 00191832

BATTERY, 12V-U1-CCA270MIN
(Superseded to 01554800)

$

$

Not available

45

Ariens D28159

STRIP, RUBBER

$15.99

$

Usually ships in 4-12 days

0

46

Ariens 06215700

BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

47

Ariens 00203873

TRAY, BATTERY ELEC HYDRO
(Superseded to 04450951)

$42.99

$

Usually ships in 4-12 days

0

48

Ariens 03H1832

BOLT, 5/16X6 LONG NK RD HD D-Z

$

$

Not available

49

Ariens 06220200

BLT-RDHDSQNK .31-18X1.75 G5YZ
(Superseded to 06200324)

$2.99

$

In Stock, Qty 6

0

50

Ariens 00203926

BUSHING, .364X.540X.700 Y

$

$

Not available

51

Ariens 04083351

PLATE, DOUBLE LH UPRIGHT BI

$

$

Not available

52

Ariens 986048

Locknut, .25-20 Nyloc

$

$

Not available

53

Ariens 00200410

MODULE, ELECTRONIC
(Superseded to 08885700)

$87.99

$

In Stock, Qty 6

0

54

Ariens 04083551

PLATE, DOUBLE RH UPRIGHT BI

$31.99

$

Usually ships in 4-12 days

0

55

Ariens 03387900

CABLE, BATTERY GROUND 25"

$35.99

$

Usually ships in 4-12 days

0

56

Ariens 03388500

CABLE, BATTERY POSITIVE 25"

$35.99

$

Usually ships in 4-12 days

0
