988641 (GHWKA1948S) - Great Dane Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro (SN: 000101 & Above) 48" Deck Assembly Parts Diagram

Scamper 48" Walk-Behind Mower, 19hp Kawasaki, Hydro

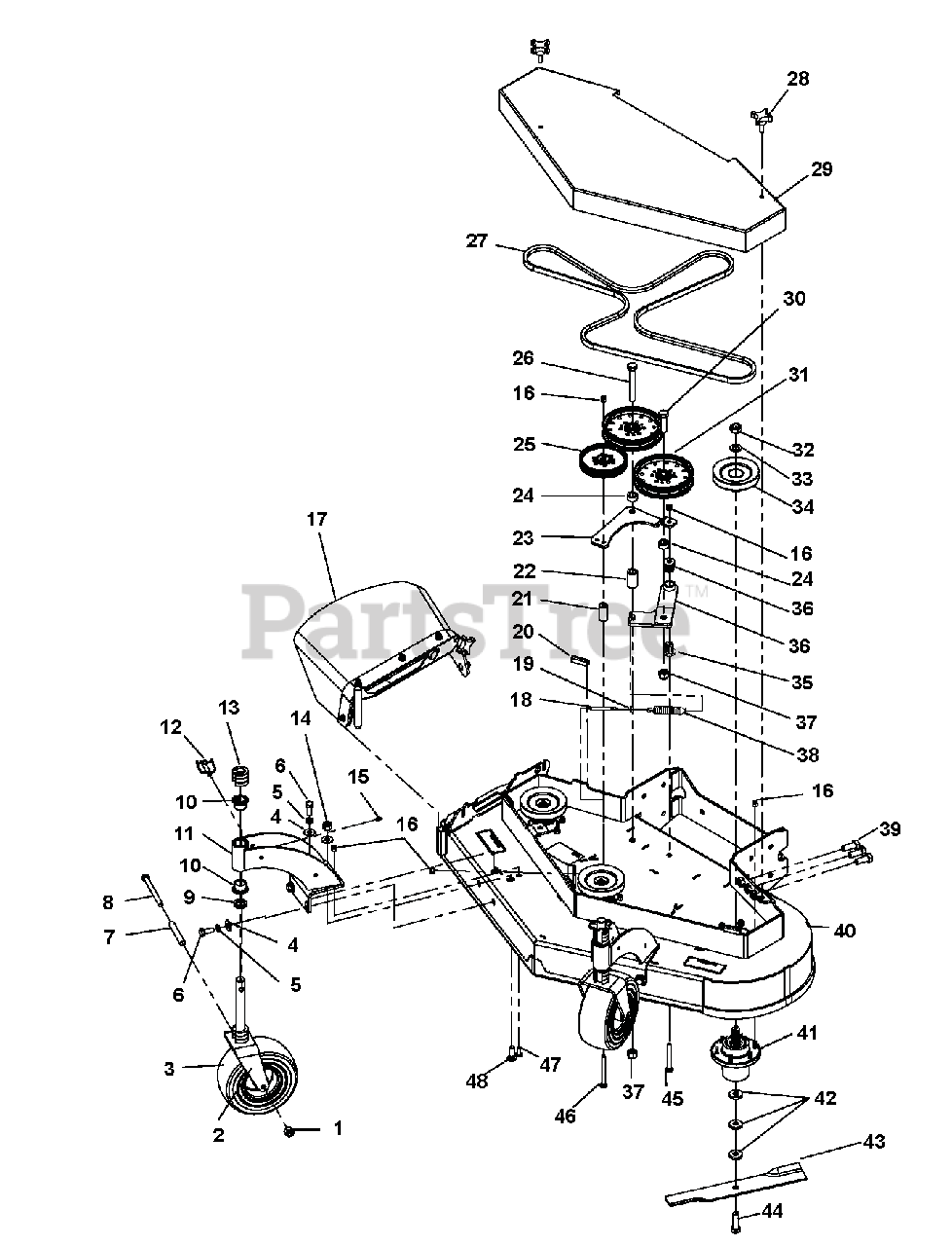

48" Deck Assembly Parts Diagram

  • Title
1

Ariens 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Ariens D15030

WLDT, CASTER YOKE GD BLACK

$136.99

$

In Stock, only 4 left!

0

3

Ariens 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 1 left!

0

4

Ariens 00960703

MANUAL, OWNERS RAPID XZ FRENCH

$

$

Not available

5

Ariens 00960604

WASHER, .500 MED SPRG LOCK Y

$

$

Not available

6

Ariens 05958900

BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

7

Ariens D13003

TUBE, CASTER AXLE

$20.99

$

Usually ships in 4-12 days

0

8

Ariens 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

9

Ariens D13008

BUSHING, 1.03 X 1.50 X .179 Y

$9.99

$

In Stock, only 2 left!

0

10

Ariens D18076

BRG, FLG 1.00X1.25X1.00

$6.99

$

In Stock, only 3 left!

0

11

Ariens 03987451

WLDT, STRUT FRONT FXWLK SCAMPR

$

$

Not available

12

Ariens 00161397

PIN, KLIK .438X2.00

$9.49

$

In Stock, only 2 left!

0

13

Ariens 00164145

C-SPACER, 1.00 X 1.77 X .500

$3.99

$

In Stock, Qty 6

0

14

Ariens 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

17

Ariens 56155063

ASSY, DISCHARGE SHIELD GD

$

$

Not available

18

Ariens 00104024

ROD, THREADED ADJUSTMENT

$24.99

$

Usually ships in 4-12 days

0

19

Ariens 00964016

LOCKNUT, 3/8-16 WHIZ Y
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 00999538

TRIM, LOCK 1/4" EDGE

$5.99

$

Usually ships in 4-12 days

0

21

$17.99

$

Usually ships in 4-12 days

0

22

Ariens 03984702

BUSHING, .688X1.13X1.89

$

$

Not available

23

Ariens 03985751

STRAP, IDLER 52 FXWLK G2

$

$

Not available

24

Ariens 03846235

BUSHING, .688 X 1.13 X .55

$

$

Not available

25

Ariens D28050

PULLEY, FLAT IDLER
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

26

Ariens 05983100

BLT-HEX .62-11X4.50 GR5 YWZC

$6.99

$

In Stock, only 4 left!

0

27

Ariens 00181715

BELT, HB 114.9 EL AMD

$80.99

$

Usually ships in 4-12 days

0

28

Ariens 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

29

Ariens 03994463

WLDT, BELT SHIELD 48 FXWLK GD

$

$

Not available

30

Ariens 05982600

BLT-HEX .62-11X2.25 GR5 YWZC

$

$

Not available

31

Ariens 00140280

PULLEY, FLAT 6.00X.635 W/BRG

$68.99

$

In Stock, only 4 left!

0

32

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$

$

Not available

34

Ariens 03828700

PULLEY, SPLINE SPINDLE LSE

$

$

Not available

35

Ariens TCU14540

BRG, FLG M10XM25XM27 FLUTED

$17.99

$

In Stock, only 2 left!

0

36

Ariens 03986951

WLDT, IDLER ARM 52 FXWLK G2

$

$

Not available

37

Ariens 06540700

NUT-LK-NYL .625-11 YWZC

$3.99

$

In Stock, only 2 left!

0

38

Ariens 00110580

SPRG, EXTENSION

$17.99

$

In Stock, only 1 left!

0

39

Ariens 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 50521008

ASSY, DECK 48" SCAMPER W/DECAL

$

$

Not available

41

Ariens 00200262

ASSY, SPINDLE S/O

$262.99

$

In Stock, only 2 left!

0

42

Ariens D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

43

Ariens GDU10230

BLADE, 16.500 X .80 LIFT

$28.99

$

In Stock, Qty 17

0

44

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

45

Ariens 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

46

Ariens 03H1809

BOLT, 3/8X4 SHTNK RDHD BOLT A1

$

$

Not available

47

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

48

Ariens 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0
