988640 (GHWKA1536S) - Great Dane Scamper 36" Walk-Behind Mower, 15hp Kawasaki, Hydro (SN: 000101 & Above) 36" Deck Assembly Parts Diagram

Scamper 36" Walk-Behind Mower, 15hp Kawasaki, Hydro

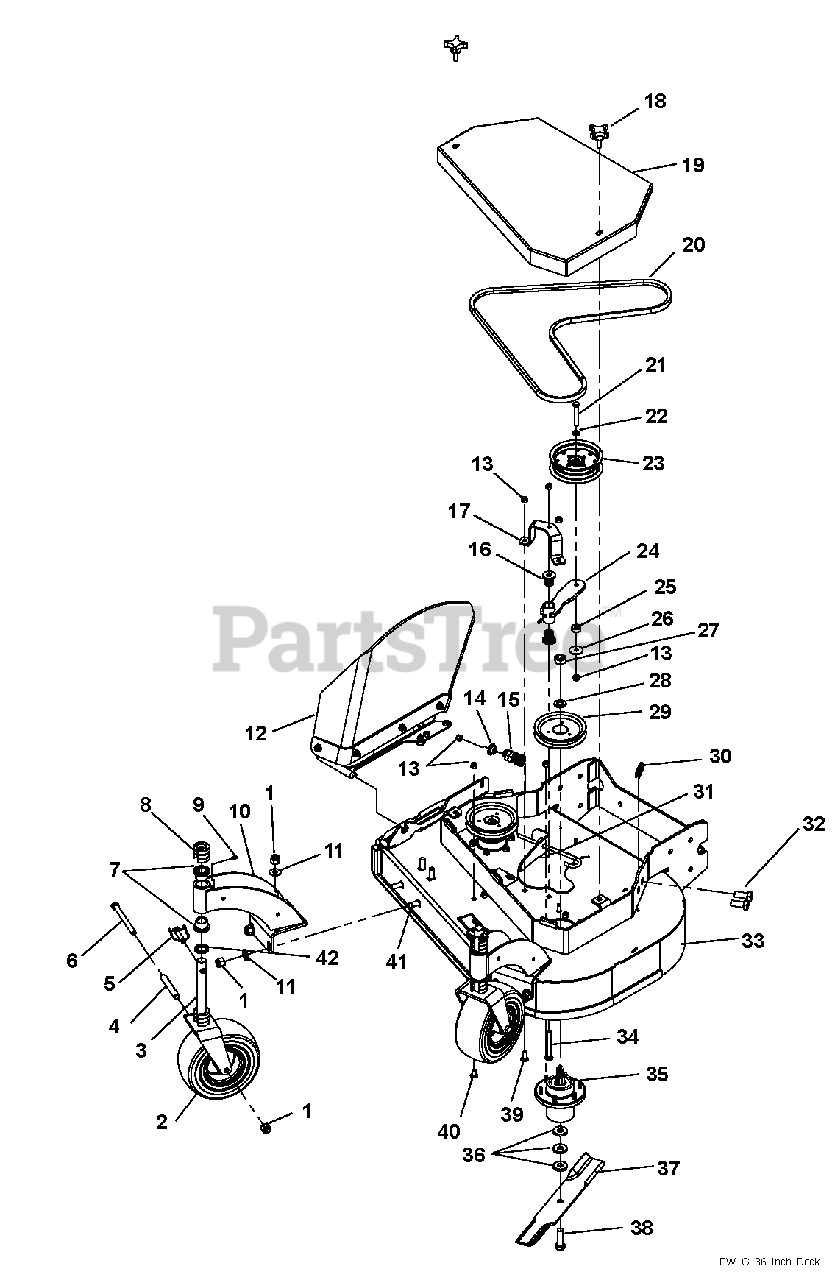

36" Deck Assembly Parts Diagram

  • Title

1

Ariens 00964015

LOCKNUT, 1/2-13 NYLOC Y
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Ariens 07100302

ASSY, WHEEL AND TIRE 9X3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 1 left!

0

3

Ariens D15030

WLDT, CASTER YOKE GD BLACK

$136.99

$

In Stock, only 4 left!

0

4

Ariens D13003

TUBE, CASTER AXLE

$20.99

$

Usually ships in 4-12 days

0

5

Ariens 00161397

PIN, KLIK .438X2.00

$9.49

$

In Stock, only 2 left!

0

6

Ariens 05964100

BLT-HEX .50-13X5.50 GR5YWZC
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

7

Ariens D18076

BRG, FLG 1.00X1.25X1.00

$6.99

$

In Stock, only 3 left!

0

8

Ariens 00164145

C-SPACER, 1.00 X 1.77 X .500

$3.99

$

In Stock, Qty 6

0

9

Ariens 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

10

Ariens 03987451

WLDT, STRUT FRONT FXWLK SCAMPR

$

$

Not available

11

Ariens 00960703

MANUAL, OWNERS RAPID XZ FRENCH

$

$

Not available

12

Ariens 56155063

ASSY, DISCHARGE SHIELD GD

$

$

Not available

13

Ariens 00968087

LOCKNUT, 3/8-16 NYLOC Y

$

$

Not available

14

Ariens D33062

KEEPER, SPRING

$38.99

$

Usually ships in 4-12 days

0

15

Ariens D38128

SPRING, COM 1.22X.162X2.50 Y

$

$

Not available

16

Ariens TCU14540

BRG, FLG M10XM25XM27 FLUTED

$17.99

$

In Stock, only 2 left!

0

17

Ariens 00165662

BRACE, TENSIONER ARM

$

$

Not available

18

Ariens 03820400

KNOB, 3/8 X 1.25 - 4 PRONG

$10.99

$

Usually ships in 4-12 days

0

19

Ariens 03997363

WLDT, BELT SHIELD 36 FXWLK GD

$

$

Not available

20

Ariens D18087

BELT, HB 77.5 EL AMD OHR

$76.99

$

Usually ships in 4-12 days

0

21

Ariens 05961400

BLT-HEX .38-16X2.75 GR5 YWZC
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

22

Ariens 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

23

Ariens D18032

PULLEY, FLAT 5.00X.375 W/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 1 left!

0

24

Ariens 03996351

WLDT, IDLER 36 FXWLK G2

$

$

Not available

25

Ariens D13023

BUSHING, .380 X 1.00 X .410 Y

$19.99

$

Usually ships in 4-12 days

0

26

Ariens 00964502

WASHER, .375X1.50X.063 FLAT Y
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

27

Ariens 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

28

Ariens 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$

$

Not available

29

Ariens 03399702

PULLEY, SPLINE SPINDLE LSE

$75.99

$

In Stock, only 1 left!

0

30

Ariens 00999538

TRIM, LOCK 1/4" EDGE

$5.99

$

Usually ships in 4-12 days

0

31

Ariens D23040

J-BOLT, 3/8-16 X 7.88 Y

$11.99

$

Usually ships in 4-12 days

0

32

Ariens 05901321

BOLT, HEX 5/8-11 1.5" GR8 YWZC
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

33

Ariens 50521007

ASSY, DECK 36" SCAMPER W/DECAL

$

$

Not available

34

Ariens 03H1836

BOLT, 3/8-16X3.50 CRG 5 Y

$

$

Not available

35

Ariens 00200262

ASSY, SPINDLE S/O

$262.99

$

In Stock, only 2 left!

0

36

Ariens D18055

WASHER, .630X1.50X.250 FLAT Y
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

37

Ariens GDU10231

BLADE, 18.000 X .80 LIFT

$30.99

$

In Stock, Qty 20+

0

38

Ariens 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

39

Ariens 00963019

BOLT, 3/8-16X1.00 CRG 5 SN Y

$

$

Not available

40

Ariens 06223900

BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

41

Ariens 06223100

BLT-RDHDSQNK .50-13X1.50 G5YZ
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

42

Ariens D13008

BUSHING, 1.03 X 1.50 X .179 Y

$9.99

$

In Stock, only 2 left!

0
