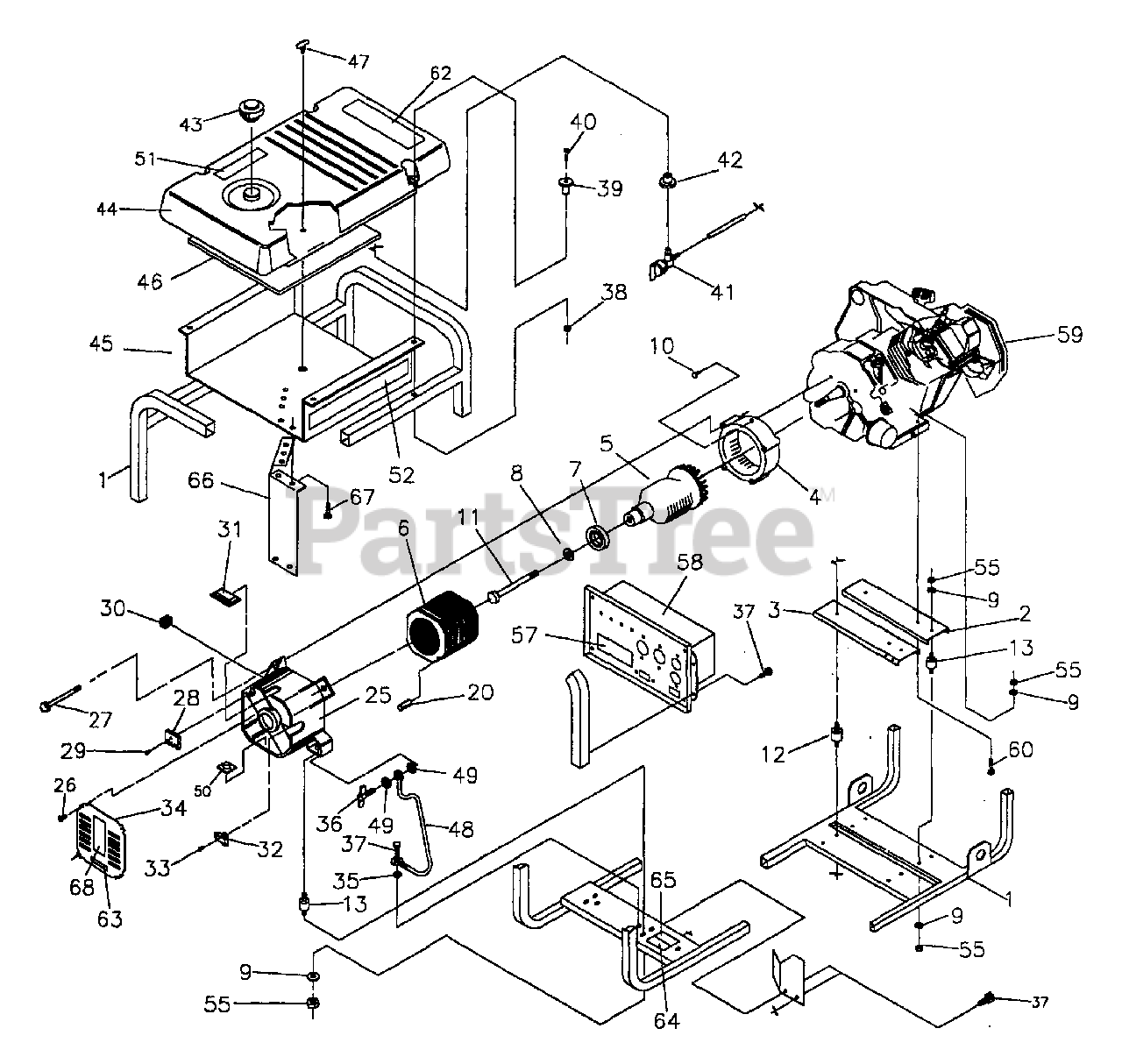

9885-1 - Generac XL 5,500 Watt Portable Generator Generator Parts Diagram

XL 5,500 Watt Portable Generator

Generator Parts Diagram

  • Title

1

Briggs & Stratton 92432

CRADLE

$

$

Currently unavailable

2

Briggs & Stratton 92531

ENGINE SUPPORT

$

$

Currently unavailable

3

Briggs & Stratton 92731

ENGINE & MUFFLER SUPPORT
(Superseded to N92731GS)

$24.99

$

Usually ships in 2-12 days

0

4

Briggs & Stratton 92247

HOUSING, ENGINE ADAPTOR
(Superseded to 92247GS)

$122.99

$

Usually ships in 2-12 days

0

5

Briggs & Stratton 92678G

ROTOR ASSEMBLY
(Superseded to 92678GGS)

$

$

Not available

6

Briggs & Stratton 92680G

STATOR ASSEMBLY
(Superseded to 92680GGS)

$

$

Not available

7

Briggs & Stratton 65791

BEARING
(Superseded to 65791GS)

$34.99

$

Usually ships in 2-12 days

0

8

Briggs & Stratton 67451

FLAT WASHER-M8

$

$

Currently unavailable

9

Briggs & Stratton 22129

LOCK WASHER-M8
(Superseded to 22129GS)

$2.99

$

In Stock, only 2 left!

0

10

Briggs & Stratton 86307

HHMS-5/16-24 x 3/4 LG. SEMS
(Superseded to 86307GS)

$2.99

$

In Stock, only 3 left!

0

11

Briggs & Stratton 28092

HHCS-5/16-24 x 9-1/4" LG.
(Superseded to 28092GS)

$15.99

$

Usually ships in 2-12 days

0

12

Briggs & Stratton 92609

VIBRATION MOUNT
(Superseded to 92609GS)

$38.99

$

Usually ships in 2-12 days

0

13

Briggs & Stratton 82857

VIBRATION MOUNT
(Superseded to 82857GS)

$12.99

$

Usually ships in 2-12 days

0

20

Briggs & Stratton 81917

ROLL PIN, 4MM x 10
(Superseded to 81917GS)

$3.49

$

Usually ships in 2-12 days

0

25

Briggs & Stratton 66825C

REAR BEARING CARRIER
(Superseded to SRV66825DGS)

$137.99

$

Usually ships in 2-12 days

0

26

Briggs & Stratton 74908

TAPTITE M5-0.8 x 10 LG.
(Superseded to 74908GS)

$2.99

$

Usually ships in 2-12 days

0

27

Briggs & Stratton 86308A

STATOR BOLT M6-1 x 165MM
(Superseded to 86308AGS)

$4.49

$

Usually ships in 2-12 days

0

28

Briggs & Stratton 65795

BATTERY CHARGE RECTIFIER
(Superseded to 65795GS)

$

$

Not available

29

Briggs & Stratton 66849A

TAPTITE M5-0.8 x 20 LG.
(Superseded to 66849AGS)

$4.49

$

Usually ships in 2-12 days

0

30

Briggs & Stratton 67022

RUBBER GROMMET
(Superseded to 67022GS)

$3.49

$

Usually ships in 2-12 days

0

31

Briggs & Stratton 84132

DRIVE MODULE, ASSY. POWER REGULATOR
(Superseded to 84132GS)

$126.99

$

Usually ships in 2-12 days

0

32

Briggs & Stratton 66386

BRUSH HOLDER ASSEMBLY
(Superseded to 66386GS)

$23.99

$

In Stock, Qty 20+

0

33

Briggs & Stratton 66849

TAPTITE M5-0.8 x 16 LG.
(Superseded to 66849GS)

$4.99

$

Usually ships in 2-12 days

0

34

Briggs & Stratton 67025

COVER, BEARING CARRIER

$

$

Currently unavailable

35

Briggs & Stratton 22769

SHAKEPROOF INT. #10
(Superseded to 22769GS)

$3.49

$

Usually ships in 2-12 days

0

36

Briggs & Stratton 86494

WING SCREW, M6-1.0 x 16 LG.
(Superseded to 86494GS)

$2.99

$

Usually ships in 2-12 days

0

37

Briggs & Stratton 86292

HHCS #10 SELF DRILLER
(Superseded to 313085GS)

$4.99

$

In Stock, only 1 left!

0

38

Briggs & Stratton 77395

FLANGE LOCK NUT-M6
(Superseded to 77395GS)

$3.99

$

Usually ships in 2-12 days

0

39

Briggs & Stratton 83465

GROMMET-TANK
(Superseded to 83465GS)

$3.99

$

In Stock, Qty 8

0

40

Briggs & Stratton 78831B

HHMS-M6-1.0 x 60 (BLACK)
(Superseded to 78831BGS)

$

$

Not available

41

Briggs & Stratton 80270

VALVE, TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

42

Briggs & Stratton 78299

BUSHING-PLASTIC TANK
(Superseded to 192980GS)

$17.99

$

In Stock, Qty 20+

0

43

Briggs & Stratton 90878

FUEL CAP
(Superseded to 846987)

$21.99

$

In Stock, only 4 left!

0

44

Briggs & Stratton 93595

FUEL TANK
(Superseded to 193500GS)

$

$

Not available

45

Briggs & Stratton 92039

HEAT SHIELD

$

$

Currently unavailable

46

Briggs & Stratton 92665

INSULATION #2-1/4" THICK
(Superseded to 92665GS)

$16.99

$

Usually ships in 2-12 days

0

47

Briggs & Stratton 85000

CLIP INSULATION
(Superseded to 85000GS)

$2.99

$

Usually ships in 2-12 days

0

48

14353621

GROUND WIRE

$

$

Not available

49

Briggs & Stratton 26850

SHAKEPROOF M6

$

$

Not available

50

Briggs & Stratton 57593

CABLE TIE MOUNT
(Superseded to 57593GS)

$5.49

$

Usually ships in 2-12 days

0

51

Briggs & Stratton 94479

DECAL, DANGER (FRENCH & ENGLISH)
(Superseded to 194984GS)

$17.99

$

Usually ships in 2-12 days

0

52

Briggs & Stratton 92611

DECAL, HEAT SHIELD

$

$

Not available

55

Briggs & Stratton 25244

HEX NUT, 5/16-18
(Superseded to 25244GS)

$3.49

$

Usually ships in 2-12 days

0

57

Briggs & Stratton 92639

DECAL, CONTROL PANEL
(Superseded to 92639GS)

$5.99

$

Usually ships in 2-12 days

0

58

Briggs & Stratton 96198

CONTROL BOX ASSEMBLY
(Superseded to 96198GS)

$1101.99

$

Usually ships in 2-12 days

0

59

Briggs & Stratton ENGA1453

ENGINE 13 HP.

$

$

Currently unavailable

60

Briggs & Stratton 22531

HHCS-5/16-18 x 1-3/4" LG.
(Superseded to 5022531)

$19.99

$

Usually ships in 2-12 days

0

62

Briggs & Stratton 94480

DECAL, START INSTRUCTIONS (FRENCH & ENGLISH)
(Superseded to 690341)

$5.99

$

In Stock, only 3 left!

0

63

Briggs & Stratton 25717

CSA DECAL

$

$

Currently unavailable

64

Briggs & Stratton 74728

DECAL, GROUNDED NEUTRAL
(Superseded to 74728GS)

$5.49

$

Usually ships in 2-12 days

0

65

Briggs & Stratton 76247

DECAL, GROUNDED NEUTRAL (FRENCH & ENGLISH)
(Superseded to 76247GS)

$9.99

$

Usually ships in 2-12 days

0

66

Briggs & Stratton 96068

HEAT SHIELD, MUFFLER

$

$

Currently unavailable

67

Briggs & Stratton 56893

CRIMPTITE 10-24 x 1/2"
(Superseded to 56893GS)

$3.49

$

In Stock, only 1 left!

0

68

Briggs & Stratton 78817

DECAL, DATA SHEET
(Superseded to 78817GS)

$3.49

$

Usually ships in 2-12 days

0
