988411 (EGWKA1336S) - EverRide Pro Walk-Behind Mower (SN: 000401 & Above) Handlebar and Frame Assembly Parts Diagram

Pro Walk-Behind Mower

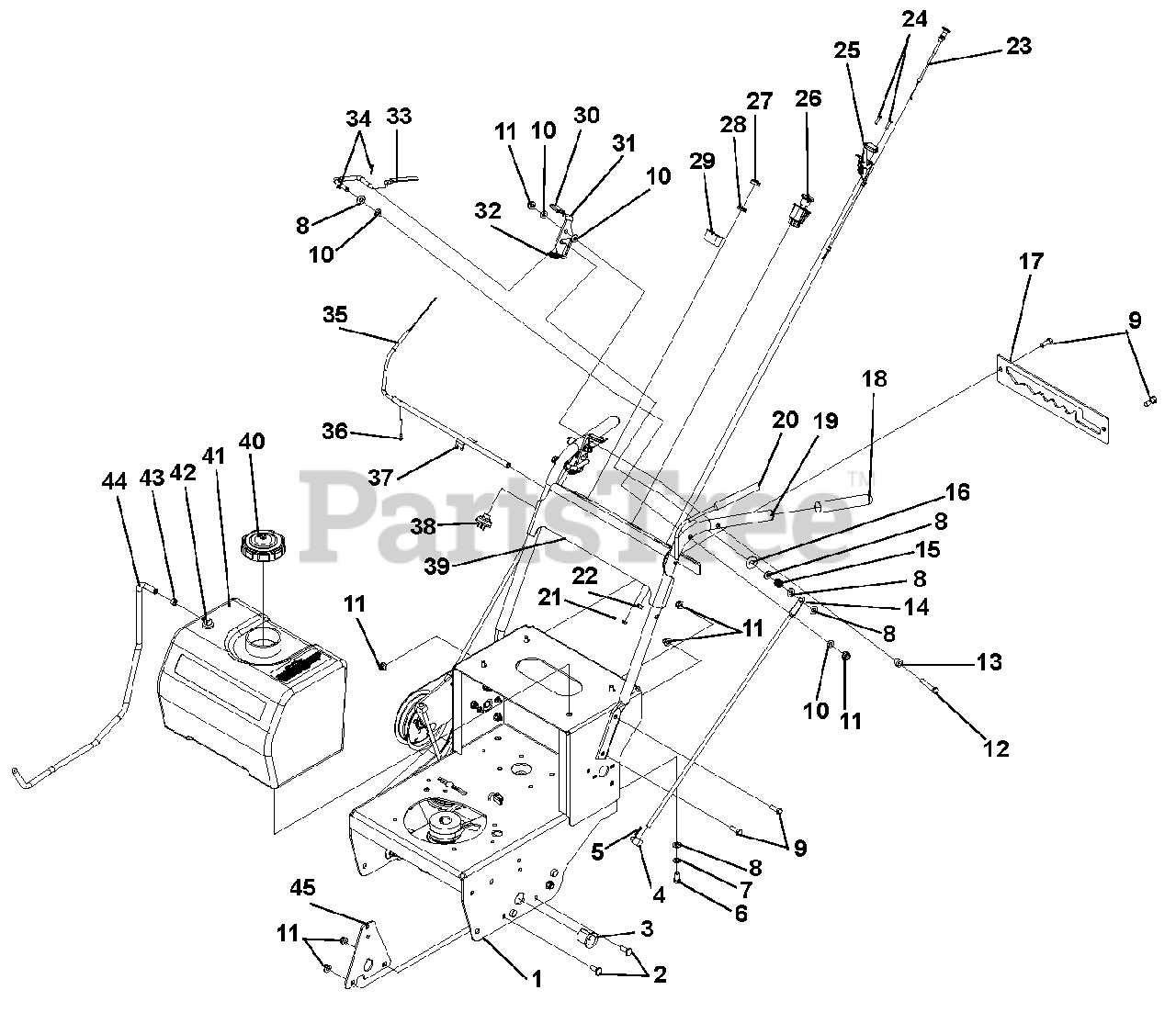

Handlebar and Frame Assembly Parts Diagram

  • Title
1

Gravely 50522006

Wasp GearWalk Frame with Decal

$

$

Not available

2

Gravely 00963020

Bolt, .375-16 x1.00 Round Head Square Neck 5
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

3

Gravely 05517900

Bushing, Flange 1.010 x 1.38 x 1.4 x 1.65

$5.99

$

In Stock, only 2 left!

0

4

Gravely D33002

Swivel, .375-24

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 06714800

Pin, Hair
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00960045

Bolt, .375-16 x .750 Hex
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00960602

Washer, .375 Medium Spring Lock

$

$

Not available

8

Gravely 00964501

Washer, Flat .406 x .813 x .065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 00960046

Bolt, .375-16 x 1.00 Hex
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06433600

Washer, Flat Nylon .375 x .75 x .060

$0.99

$

In Stock, Qty 11

0

11

Gravely 06545500

Nut, Nyloc Flange, .38-16
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00960052

Bolt, .375-16 x 2.50 Hex

$

$

Not available

13

Gravely 08553700

Bushing, Sleeve .391 x .688 x .52 Promaster

$5.99

$

In Stock, only 1 left!

0

14

Gravely 03371700

Rod, Steering Pro Walk

$

$

Not available

15

Gravely 08338800

Spring, Compression .045 x .600 x .750 WLD7.5

$6.99

$

In Stock, only 2 left!

0

16

Gravely 06441000

Washer, Flat-Steel, .50 x 1.25 x .083
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

17

Gravely 04950461

Plate, Shift Lever Detent

$

$

Not available

18

Gravely 04928800

Grip, Handlebar

$9.99

$

In Stock, only 2 left!

0

19

Gravely 07533300

Caplug, Handlebar

$2.49

$

In Stock, only 3 left!

0

20

Gravely 04924200

Lever, Left Hand-Operator Presence
(Superseded to 78806400)

$219.99

$

In Stock, only 1 left!

0

21

Gravely 00964013

Locknut, 10-24 Nyloc

$

$

Not available

22

Gravely 00967054

Nut, .38-24 Standard Hex
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 06944700

Cable, Choke

$59.99

$

Usually ships in 4-12 days

0

24

Gravely 06116900

Screw, Machine 10-24 x .75 Hex Washer Head
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Gravely 06949100

Cable, Throttle with Liner

$70.99

$

In Stock, only 4 left!

0

26

Gravely 04940800

Switch, PTO

$

$

Not available

27

Gravely 07517700

Cap, Ignition Switch

$3.99

$

In Stock, Qty 9

0

28

Gravely 06517400

Nut, Panel .562-24

$20.99

$

In Stock, only 1 left!

0

29

Gravely 00539300

Plug, Hour Meter

$9.99

$

Usually ships in 4-12 days

0

30

Gravely 04928700

Grip, Thumb Latch

$

$

Not available

31

Gravely 04922600

Latch, Left Hand Thumb

$16.99

$

Usually ships in 4-12 days

0

32

Gravely 08339300

Spring, Tension .041 x .500 x 1.750

$5.99

$

In Stock, only 1 left!

0

33

Gravely 04905200

Lever, Hand Control Left Hand

$79.99

$

In Stock, only 1 left!

0

34

Gravely 00962008

Pin, Cotter .094 x .750 EXTP
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

35

Gravely 04924100

Lever, Right Hand-Operator Presence
(Superseded to 78806400)

$219.99

$

In Stock, only 1 left!

0

36

Gravely 07415600

Screw,Tapping 8-32 x .50 Hex Washer Head Thread Rolling

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 04924000

Weldament, Pivot Tube
(Superseded to 78806400)

$219.99

$

In Stock, only 1 left!

0

38

Gravely 03602300

Key, Switch

$26.99

$

In Stock, only 1 left!

0

39

Gravely 50522007

Wasp Gear Walk Handlebar w/Decals

$

$

Not available

40

Gravely 00181251

Cap, Fuel

$23.99

$

In Stock, only 1 left!

0

41

Gravely 04943561

Tank, Fuel EverRide Walk

$

$

Not available

42

Gravely 09112300

Fitting, Tank
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

43

Gravely 00130924

Clamp, Hose- .50 Spring
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 00192126

Hose, Fuel .25 x 30.00

$

$

Not available

45

Gravely 03384151

Plate, Axle/Bearing Mounting

$14.99

$

Usually ships in 4-12 days

0
