988411 (EGWKA1336S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000400) Spindle Assembly Parts Diagram

Pro Walk-Behind Mower

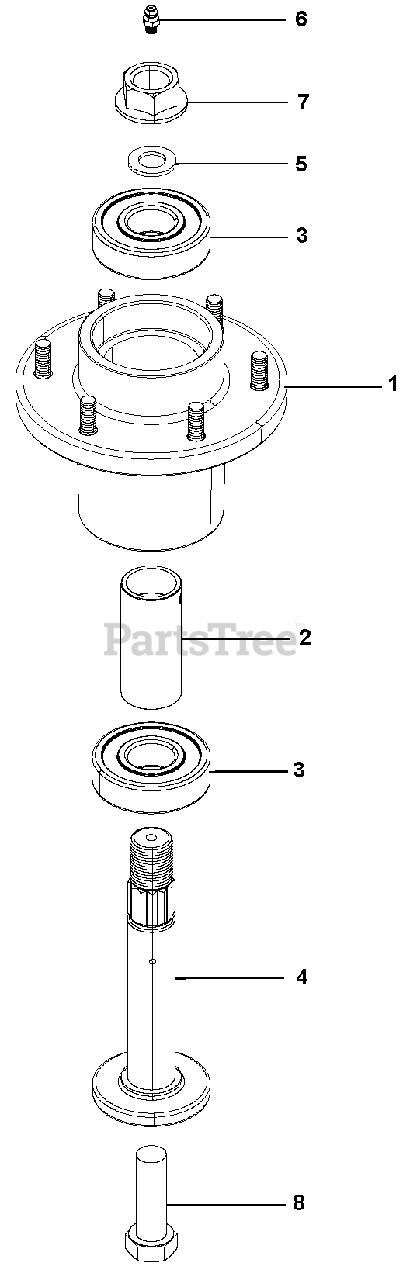

Spindle Assembly Parts Diagram

  • Title
1

Gravely 00200042

HOUSING, SPINDLE W/STUDS

$87.99

$

Usually ships in 4-12 days

0

2

Gravely 00200044

SPACER, 1.250X1.000X2.780

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 00200046

BEARING, 6305LLC

$

$

Not available

4

Gravely 00200196

SHAFT, SPINDLE 3/4-16

$

$

Not available

5

Gravely 03399703

WASHER, .75X1.3125X.120
(Superseded to 06401037)

$

$

Not available

6

Gravely 00959995

FTG, 1/4-28 STRGT GREASE ZERK

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 00964024

LOCKNUT, 3/4-16 CROWN PL
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 00967348

BOLT, 5/8-11 X 2.00 HEX 8 Y
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0
