988411 (EGWKA1336S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000400) Oil Drain and Deck Connection Parts Diagram

Pro Walk-Behind Mower

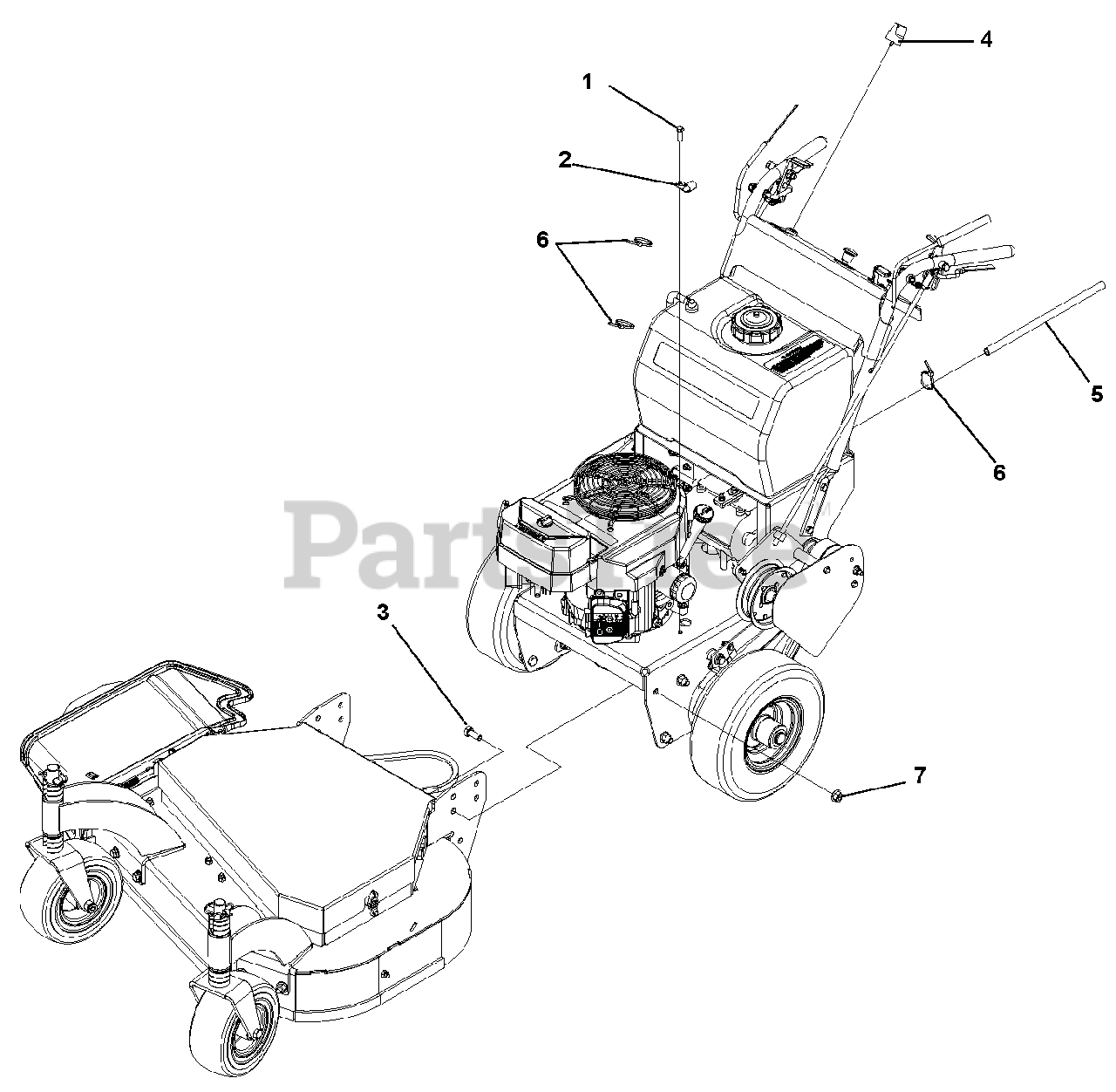

Oil Drain and Deck Connection Parts Diagram

  • Title
1

Gravely 07412900

@SCR-TAP .38-16X.50 HWH TR YWZ
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

2

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 00960113

BOLT, 1/2-13X1.25 HEX 5 Y
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

4

Gravely 09284600

KEY W/ SHIELD

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 07539400

TUBE,OIL DRAIN 14" CLEAR VINYL

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 00111910

CABLE TIE, .15 X 8.50

$

$

Not available

7

Gravely 06500010

@NUT-LK-NYL-FLG .50-13 YWZC
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
