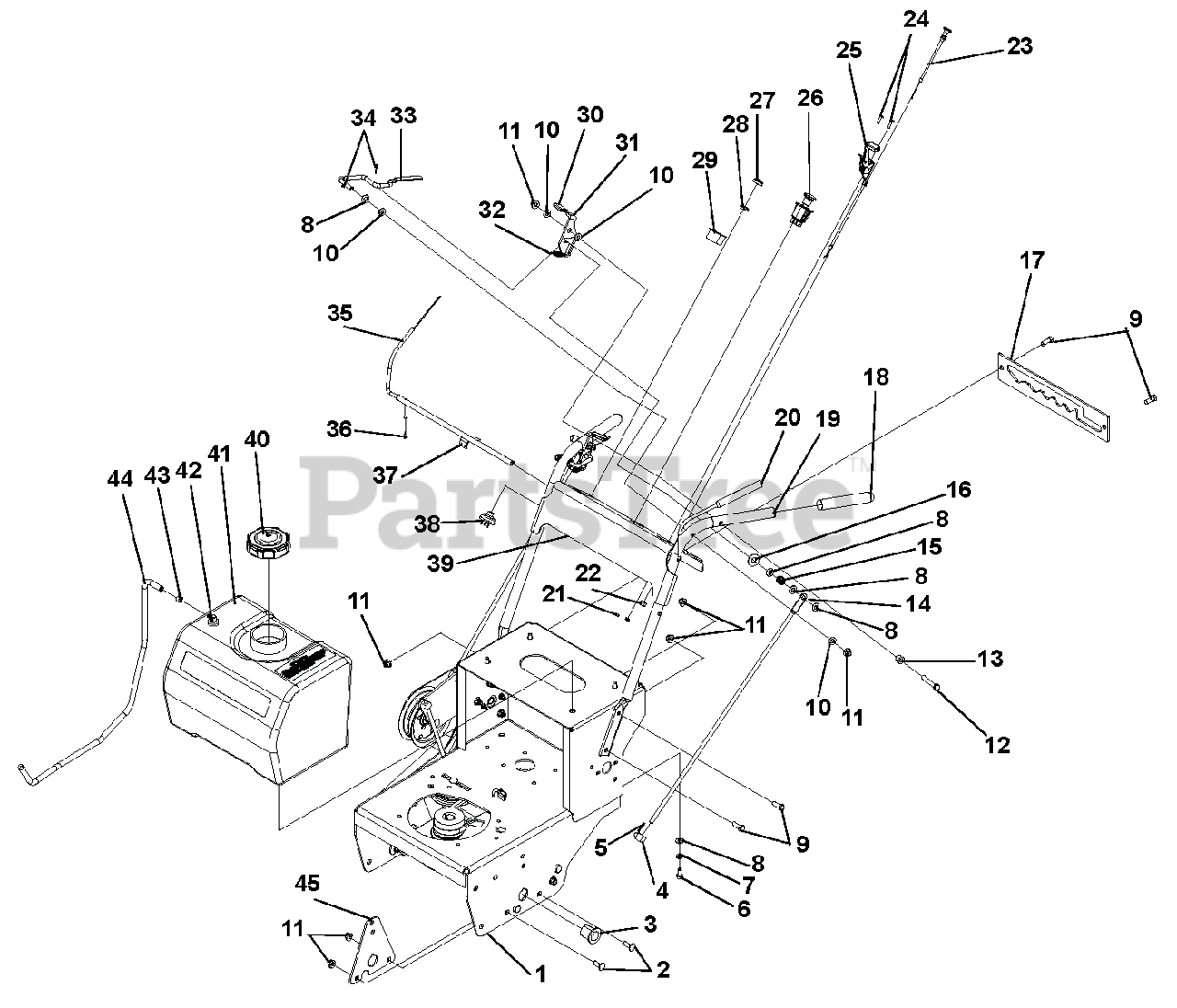

988411 (EGWKA1336S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000400) Handlebar/Frame Assembly Parts Diagram

Pro Walk-Behind Mower

Handlebar/Frame Assembly Parts Diagram

  • Title

1

Gravely 68821102

WASP GEAR FRAME W/ DECAL

$

$

Not available

2

Gravely 00963020

BOLT, 3/8-16X1.00 CRG 5 Y
(Superseded to 06223600)

$2.49

$

In Stock, Qty 10

0

3

Gravely 05517900

BSHG-FLG 1.010X1.38X1.4X1.65

$5.99

$

In Stock, only 2 left!

0

4

Gravely D33002

SWIVEL, 3/8-24

$10.99

$

Usually ships in 4-12 days

0

5

Gravely 06714800

PIN-HAIR, ENDRIES #25 YWZC
(Superseded to 06700223)

$0.99

$

In Stock, Qty 20+

0

6

Gravely 00960045

BOLT, 3/8-16X.750 HEX 5 Y
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 00960602

WASHER, .375 MED SPRG LOCK Y

$

$

Not available

8

Gravely 00964501

WASHER, .406X.813X.065 FLAT Y
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 00960046

BOLT, 3/8-16X1.00 HEX 5 Y
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

10

Gravely 06433600

WSHR-FL-NY .375X.75X.060

$0.99

$

In Stock, Qty 11

0

11

Gravely 06545500

@NUT-LK-NYL-FLG .38-16 YWZC
(Superseded to 06500726)

$1.49

$

In Stock, Qty 20+

0

12

Gravely 00960052

BOLT, 3/8-16X2.50 HEX 5 Y

$

$

Not available

13

Gravely 08553700

BSHG-SLV .391X.688X.52 PM

$5.99

$

In Stock, only 1 left!

0

14

Gravely 03371700

ROD, STEERING

$

$

Not available

15

Gravely 08338800

SG-COMP .045X.600X.750 WLD7.5

$6.99

$

In Stock, only 2 left!

0

16

Gravely 06441000

@WSHR-FL-STL.50X1.25X.083 YWZC
(Superseded to 06401202)

$2.99

$

In Stock, Qty 6

0

17

Gravely 04950461

WASP SHIFT LEVER DETENT

$

$

Not available

18

Gravely 04928800

GRIP, HANDLEBAR

$9.99

$

In Stock, only 2 left!

0

19

Gravely 07533300

CAPLUG, HANDLEBAR

$2.49

$

In Stock, only 3 left!

0

20

Gravely 04924200

LEVER, LH-OP
(Superseded to 78806400)

$219.99

$

In Stock, only 1 left!

0

21

Gravely 00964013

LOCKNUT, 10-24 NYLOC Y

$

$

Not available

22

Gravely 00967054

NUT, 3/8-24 STD HEX Y
(Superseded to 06522900)

$2.49

$

In Stock, only 2 left!

0

23

Gravely 06944700

CABLE, CHOKE

$59.99

$

Usually ships in 4-12 days

0

24

Gravely 06116900

@SCR-MCH 10-24X.75 HWH YWZC
(Superseded to 05901837)

$2.49

$

In Stock, Qty 15

0

25

Gravely 06949100

CABLE - THROTTLE W/LINER

$70.99

$

In Stock, only 4 left!

0

26

Gravely 04940800

SWITCH - PTO - NMIR

$

$

Not available

27

Gravely 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

28

Gravely 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

29

Gravely 00539300

PLUG, HOUR METER

$9.99

$

Usually ships in 4-12 days

0

30

Gravely 04928700

GRIP, THUMB LATCH

$

$

Not available

31

Gravely 04922600

LATCH, LH THUMB

$16.99

$

Usually ships in 4-12 days

0

32

Gravely 08339300

SG-TENS .041X.500X1.750

$5.99

$

In Stock, only 1 left!

0

33

Gravely 04905200

LEVER, HAND CONTROL LH

$79.99

$

In Stock, only 1 left!

0

34

Gravely 00962008

PIN, COT .094X.750 EXTP Y
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

35

Gravely 04924100

LEVER, RH-OP
(Superseded to 78806400)

$219.99

$

In Stock, only 1 left!

0

36

Gravely 07415600

@SCR-TAP 8-32X.50 HWH TR YWZC

$2.49

$

Usually ships in 4-12 days

0

37

Gravely 04924000

WELDMENT, PIVOT TUBE
(Superseded to 78806400)

$219.99

$

In Stock, only 1 left!

0

38

Gravely 03602300

KEY SWITCH

$26.99

$

Usually ships in 4-12 days

0

39

Gravely 68821101

WASP HANDLEBAR W/ DECALS

$

$

Not available

40

Gravely 00181251

CAP, FUEL S/O

$23.99

$

In Stock, only 1 left!

0

41

Gravely 04943561

TANK, FUEL W/MOLDED EVR DECAL

$

$

Not available

42

Gravely 09112300

FITTING, TANK
(Superseded to 03875300)

$14.99

$

In Stock, only 4 left!

0

43

Gravely 00130924

CLAMP, HOSE - 1/2" SPRING
(Superseded to 03278800)

$1.49

$

In Stock, Qty 20+

0

44

Gravely 00192126

HOSE, FUEL 1/4 X 30.00

$

$

Not available

45

Gravely 03384151

PLATE, AXLE/BEARING MOUNTING

$14.99

$

Usually ships in 4-12 days

0
