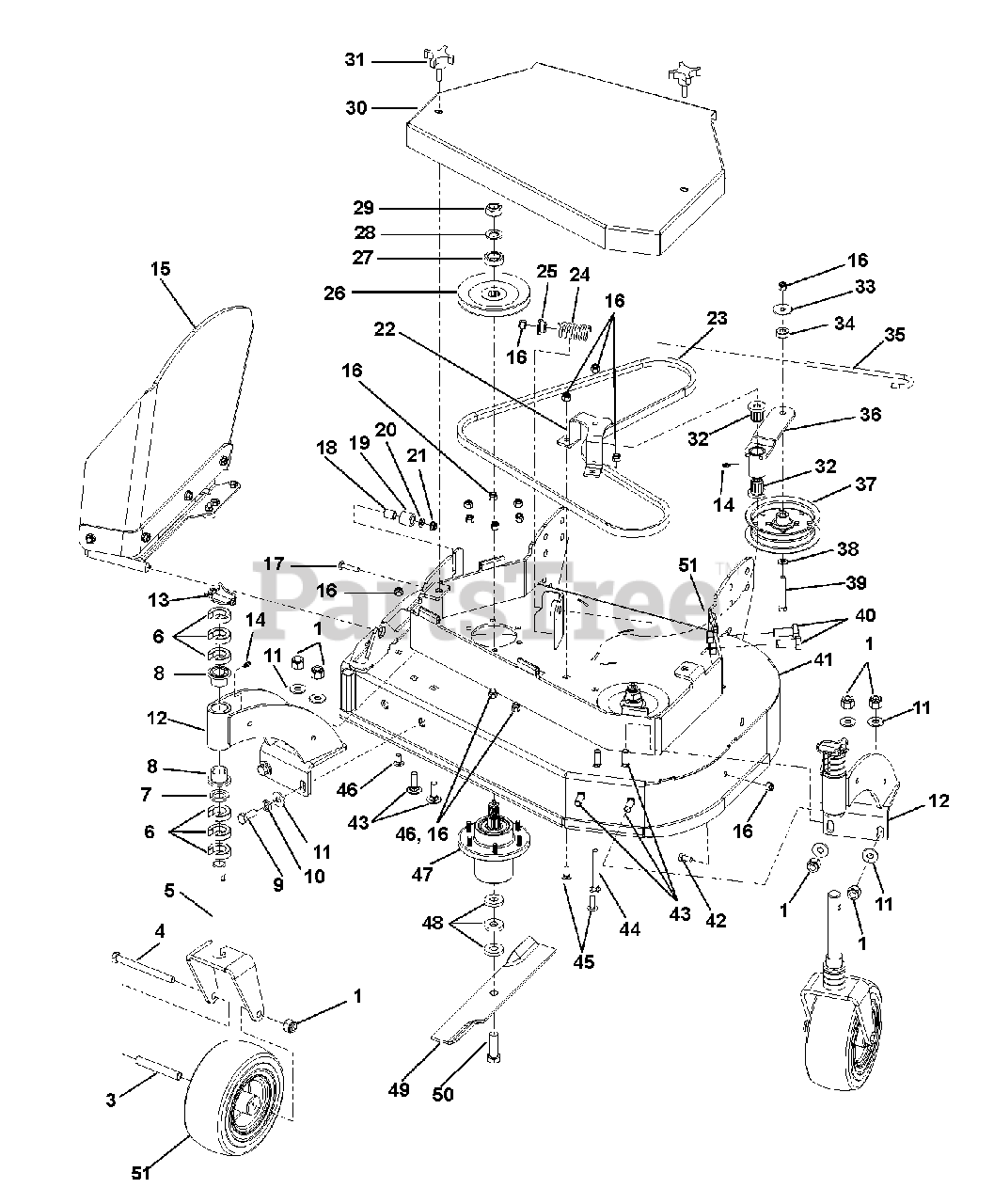

988410 (EGWKA1332S) - EverRide Pro Walk-Behind Mower (SN: 000401 & Above) Deck Assembly 32" Parts Diagram

Pro Walk-Behind Mower

Deck Assembly 32" Parts Diagram

  • Title

1

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 07100302

Assembly, Wheel and Tire 9 x 3.5
(Superseded to 07100931)

$136.99

$

In Stock, only 1 left!

0

3

Gravely D13003

Tube, Caster Axle

$20.99

$

Usually ships in 4-12 days

0

4

Gravely 05964100

Bolt, .50-13 x 5.50 Hex Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

5

Gravely 00200534

Weldment, Caster Yoke w/ EverRide Paint

$

$

Not available

6

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$3.99

$

In Stock, Qty 6

0

7

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0

8

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$6.99

$

In Stock, only 3 left!

0

9

Gravely 00960080

Bolt, .50-13 x 1.25 Hex Grade 5
(Superseded to 05963800)

$2.99

$

Usually ships in 4-12 days

0

10

Gravely 00960604

Washer, .500 Medium Spring Lock

$

$

Not available

11

Gravely 00960703

Washer, .438 Regular Flat

$

$

Not available

12

Gravely 03987461

Weldment, Strut Front FXWLK w/ EverRide Paint

$

$

Not available

13

Gravely 00161397

Pin, LNC .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

14

Gravely 00959995

Fitting, .25-28 Straight Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

15

Gravely 56155061

Discharge Shield Assembly

$

$

Not available

16

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

17

Gravely 00963075

Bolt, .3125-18 x 1.50 Round Head Square Neck Grade 2
(Superseded to 06200144)

$

$

Not available

18

Gravely A8905500

Bushing, Straight .407 x .625 x .813

$

$

Not available

19

Gravely 07500007

Bumper, Rubber .62 x 1.0 x .88 LG

$5.99

$

In Stock, only 2 left!

0

20

Gravely 06435800

Washer, .531 x 1.062 x .095 Flat
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

21

Gravely 06545400

Nut, .31-18 Nyloc Flange
(Superseded to 06500809)

$1.49

$

In Stock, Qty 20+

0

22

Gravely 04054951

Bracket, Idler

$

$

Not available

23

Gravely 07200502

Belt, 5L 76.15 Banded

$67.99

$

Usually ships in 4-12 days

0

24

Gravely D38128

Spring, COM 1.22 x .162 x 2.50

$

$

Not available

25

Gravely D33062

Keeper, Spring

$38.99

$

Usually ships in 4-12 days

0

26

Gravely D18083

Pulley, V-Belt 5.75 Drive Points
(Superseded to 07329567)

$91.99

$

In Stock, only 2 left!

0

27

Gravely D13024

Spacer, 1.500 x 1.000 x .510

$12.99

$

In Stock, only 2 left!

0

28

Gravely 03399703

Washer, .75 x 1.313 x .113
(Superseded to 06401037)

$

$

Not available

29

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

30

Gravely 04054861

Weldment, Shield 32"

$

$

Not available

31

Gravely 03820400

Knob, .375 x 1.25-4 Prong

$10.99

$

Usually ships in 4-12 days

0

32

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$17.99

$

In Stock, only 2 left!

0

33

Gravely 00964502

Washer, Flat .375 x 1.50 x .063
(Superseded to 06439300)

$3.49

$

In Stock, Qty 20+

0

34

Gravely D13023

Bushing, .380 x 1.00 x .410

$19.99

$

Usually ships in 4-12 days

0

35

Gravely D23040

J-Bolt, .375-16 x 7.88

$11.99

$

Usually ships in 4-12 days

0

36

Gravely 04056251

Weldment, Idler Arm w/Offset

$68.99

$

Usually ships in 4-12 days

0

37

Gravely D18032

Pulley, Flat 5.0 x .38 w/BRG
(Superseded to 07346700)

$79.99

$

In Stock, only 1 left!

0

38

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

39

Gravely 05961400

Bolt, .38-16 x 2.75 Hex Grade 5
(Superseded to 05901611)

$3.99

$

In Stock, only 4 left!

0

40

Gravely 05901321

Bolt, Hex .625-11 1.50 Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 50522005

Assembly, Deck EverRide 32" with Decals

$

$

Not available

42

Gravely 05959400

Bolt, .38-16 x .750 Hex Grade 5
(Superseded to 05901702)

$1.49

$

In Stock, Qty 17

0

43

Gravely 06223100

Bolt, Round Head Square Neck .50-13 x 1.50 Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0

44

Gravely 03H1836

Bolt, .375-16 x 3.50 Round Head Square Neck Grade 5

$

$

Not available

45

Gravely 00963019

Bolt, .375-16 x 1.00 Round Head Square Neck Grade 2

$

$

Not available

46

Gravely 06200004

Bolt, Round Head Square Neck .38-16 x .75
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

47

Gravely 00200262

Assembly, Spindle Housing

$262.99

$

In Stock, only 2 left!

0

48

Gravely D18055

Washer Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

49

Gravely GDU10230

Blade, 16.502 Lo-Lift

$28.99

$

In Stock, Qty 17

0

50

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

51

Gravely 00999538

Trim, 1/4" Trim-LOK Edge

$5.99

$

Usually ships in 4-12 days
