988410 (EGWKA1332S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000400) Spindle Assembly Parts Diagram

Pro Walk-Behind Mower

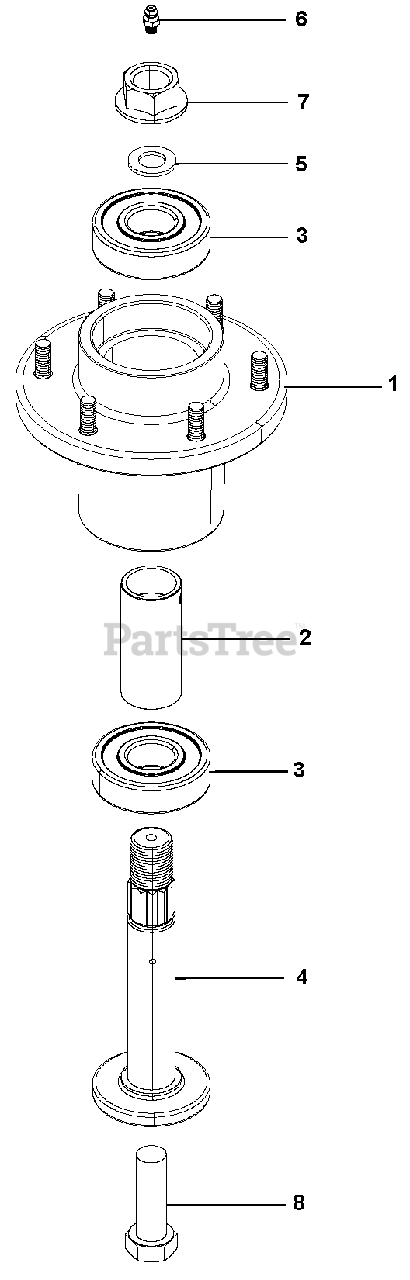

Spindle Assembly Parts Diagram

  • Title

1

Gravely 00200042

Casting, Spindle w/Studs

$87.99

$

Usually ships in 4-12 days

0

2

Gravely 00200044

Spacer, 1.250 x 1.000 x 2.780

$29.99

$

Usually ships in 4-12 days

0

3

Gravely 00200046

Bearing, 6305LLC

$

$

Not available

4

Gravely 00200196

Shaft, Spindle .75-16

$

$

Not available

5

Gravely 03399703

Washer, .75 x 1.3125 x .120
(Superseded to 06401037)

$

$

Not available

6

Gravely 00959995

Fitting, .25-28 STRGT Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

7

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

8

Gravely 00967348

Bolt, .625-11 x 2.00 Hex 8
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0
