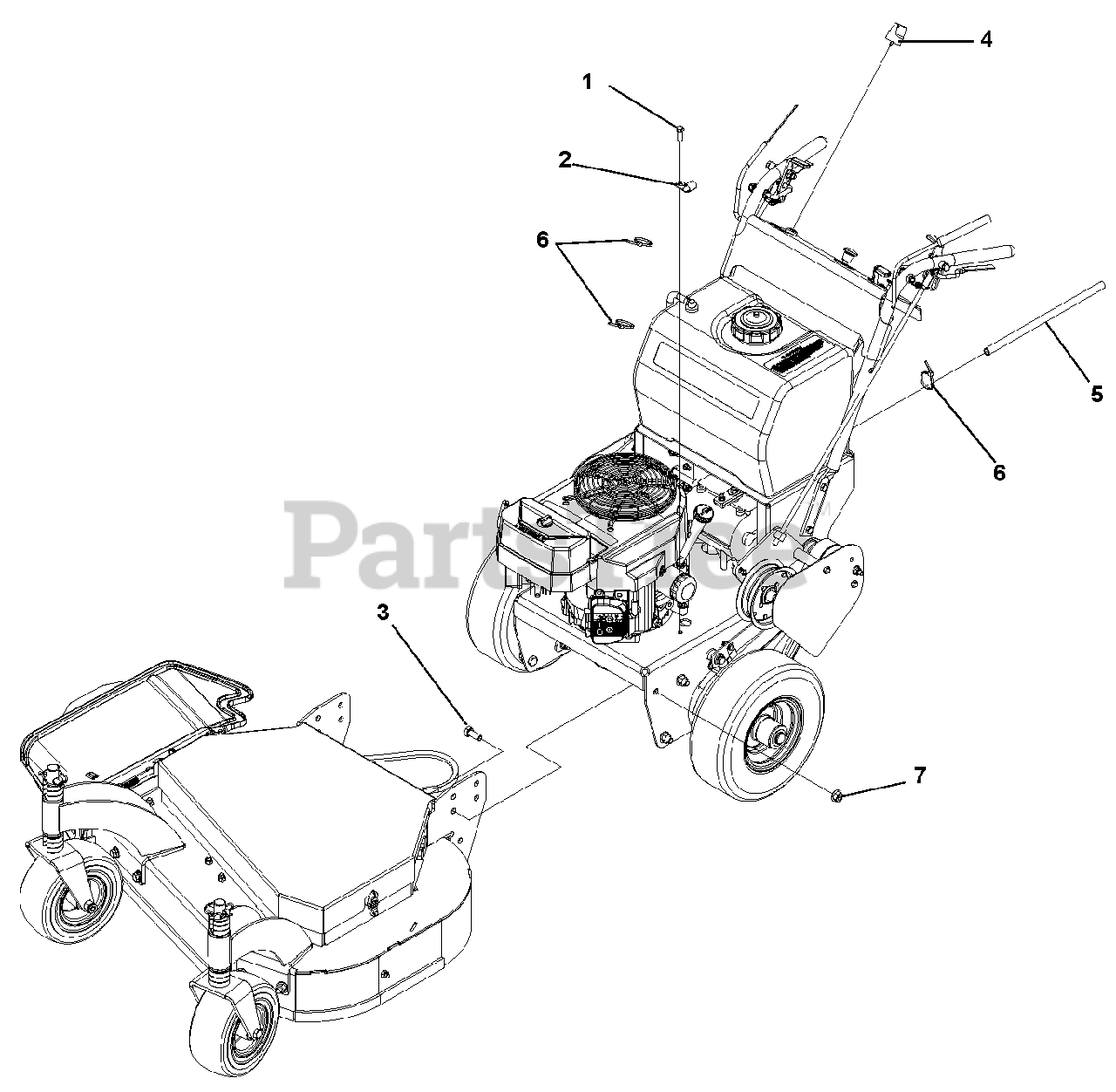

988410 (EGWKA1332S) - EverRide Pro Walk-Behind Mower (SN: 000101 - 000400) Oil Drain and Deck Connection Parts Diagram

Pro Walk-Behind Mower

Oil Drain and Deck Connection Parts Diagram

  • Title
1

Gravely 07412900

Screw,Tapping .38-16 x .50 Hex Washer Head Thread Rolling
(Superseded to 07400126)

$1.49

$

In Stock, Qty 20+

0

2

$2.49

$

Usually ships in 4-12 days

0

3

Gravely 00960113

Bolt, .50-13 x 1.25 Hex 5
(Superseded to 05958900)

$3.49

$

In Stock, only 1 left!

0

4

Gravely 09284600

Key with Shield

$18.99

$

Usually ships in 4-12 days

0

5

Gravely 07539400

Tube, Oil Drain 14" Clear Vinyl

$4.99

$

Usually ships in 4-12 days

0

6

Gravely 00111910

Cable Tie, .15 x 8.50

$

$

Not available

7

Gravely 06500010

Nut, .50-13 Nyloc Flange
(Superseded to 06500810)

$1.49

$

In Stock, Qty 20+

0
