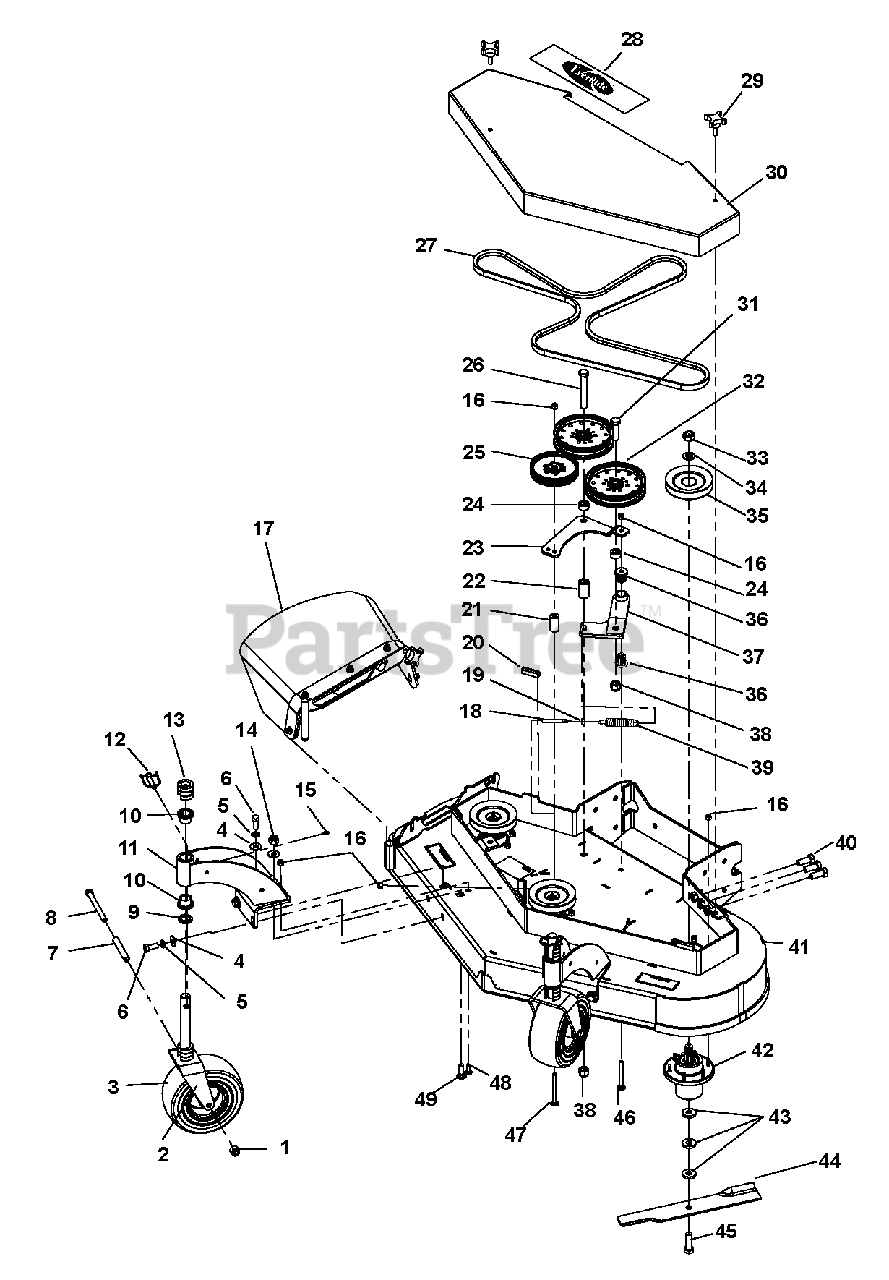

988403 (EHWKA1948S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) 48" Deck Assembly Parts Diagram

Pro Walk-Behind Mower

48" Deck Assembly Parts Diagram

  • Title

1

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

2

Gravely 00200534

Weldment, Caster Yoke

$

$

Not available

3

Gravely 07100302

Assembly, Wheel & Tire - 9 x 3.5-4
(Superseded to 07100931)

$136.99

$

In Stock, only 2 left!

0

4

Gravely 00960703

Washer, .438 Regular Flat

$

$

Not available

5

Gravely 00960604

Washer, .500 Medium Spring Lock

$

$

Not available

6

Gravely 05958900

Bolt, .50-13 x 1.25 Hex Grade 5
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

7

Gravely D13003

Tube, Caster Axle

$20.99

$

Usually ships in 4-12 days

0

8

Gravely 05964100

Bolt, .50-13 x 5.50 Grade 5
(Superseded to 05901632)

$6.99

$

Usually ships in 4-12 days

0

9

Gravely D13008

Bushing, 1.03 x 1.50 x .179

$9.99

$

In Stock, only 2 left!

0

10

Gravely D18076

Bearing, Flange 1.00 x 1.25 x 1.00

$6.99

$

In Stock, only 3 left!

0

11

Gravely 03987461

Weldment, Strut Front Wasp

$

$

Not available

12

Gravely 00161397

Pin, LNC .438 x 2.00

$9.49

$

In Stock, only 2 left!

0

13

Gravely 00164145

C-Spacer, 1.00 x 1.77 x .500

$3.99

$

In Stock, Qty 6

0

14

Gravely 00964015

Locknut, .50-13 Nyloc
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

15

Gravely 00959995

Fitting, .25-28 Straight Grease Zerk

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 00968087

Locknut, .375-16 Nyloc

$

$

Not available

17

Gravely 56155061

Assembly, Discharge Shield

$

$

Not available

18

Gravely 00104024

Rod, Threaded Adjustment

$24.99

$

Usually ships in 4-12 days

0

19

Gravely 00964016

Locknut, .375-16
(Superseded to 06534900)

$1.49

$

In Stock, Qty 20+

0

20

Gravely 00999538

Trim, 2" Trim-Lok Edge

$5.99

$

Usually ships in 4-12 days

0

21

Gravely TCU18742

Spacer

$17.99

$

Usually ships in 4-12 days

0

22

Gravely 03984702

Bushing, .688 x 1.13 x 1.89

$

$

Not available

23

Gravely 03985751

Strap, Idler 52 FXWLK

$

$

Not available

24

Gravely 03846235

Bushing, .688 x 1.13 x .55

$

$

Not available

25

Gravely D28050

Pulley, Flat 5.00 x .375 w/Bearing
(Superseded to 07352400)

$39.99

$

In Stock, Qty 20+

0

26

Gravely 05983100

Bolt, .62-11 x 4.50 Hex Grade 5

$6.99

$

In Stock, only 4 left!

0

27

Gravely 00181715

Belt, HB 114.9 Elbow AMD

$80.99

$

Usually ships in 4-12 days

0

28

Gravely 00180954

Decal, 9" EverRidge Logo Small

$

$

Not available

29

Gravely 03820400

Knob, .375 x 1.25 - 4 Prong

$10.99

$

Usually ships in 4-12 days

0

30

Gravely 03994461

Weldment, Belt Shield 48 FXWLK

$

$

Not available

31

Gravely 05982600

Bolt, .62-11 x 2.25 Hex Grade 5

$

$

Not available

32

Gravely 00140280

Pulley, Flat 6.00 x .635 w/Bearing

$68.99

$

In Stock, only 4 left!

0

33

Gravely 00964024

Locknut, .75-16 Crown
(Superseded to 06500031)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 03399703

Washer, .75 x 1.3125 x .113
(Superseded to 06401037)

$

$

Not available

35

Gravely 03828700

Pulley, Spline Spindle Offset

$

$

Not available

36

Gravely TCU14540

Bearing, Flange M10 x M25 x M27 Fluted

$17.99

$

In Stock, only 2 left!

0

37

Gravely 03986951

Weldment, Idler Arm FXWLK

$

$

Not available

38

Gravely 06540700

Nut, Lock, Nylon .625-11

$3.99

$

In Stock, only 2 left!

0

39

Gravely 00110580

Spring, Ext .875 x .125 x 4.25

$17.99

$

In Stock, only 1 left!

0

40

Gravely 05901321

Bolt, .625-11 x 1.50 Hex Grade 8
(Superseded to 05901723)

$3.99

$

Usually ships in 4-12 days

0

41

Gravely 50521001

Assembly, Deck 48 Wasp w/Decals

$

$

Not available

42

Gravely 00200262

Assy, Spindle Housing

$262.99

$

In Stock, only 2 left!

0

43

Gravely D18055

Washer, Blade
(Superseded to 06401033)

$6.99

$

In Stock, only 1 left!

0

44

Gravely GDU10230

Blade, 16.50 Lo-Lift

$28.99

$

In Stock, Qty 17

0

45

Gravely 00967348

Bolt, .625-11 x 2.00 Hex Grade 8
(Superseded to 05901725)

$5.99

$

In Stock, only 4 left!

0

46

Gravely 03H1836

Bolt, .375-16 x 3.50 Grade 5

$

$

Not available

47

Gravely 03H1809

Bolt, 3/8 x 4 SHT NK RD HD

$

$

Not available

48

Gravely 00963019

Bolt, .375-16 x 1.00 Grade 5

$

$

Not available

49

Gravely 06223100

Bolt, .50-13 x 1.50 Round Head Square Neck Grade 5
(Superseded to 06200421)

$4.49

$

Usually ships in 4-12 days

0
