988402 (EHWKA1952S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) LH Pump Assembly Parts Diagram

Pro Walk-Behind Mower

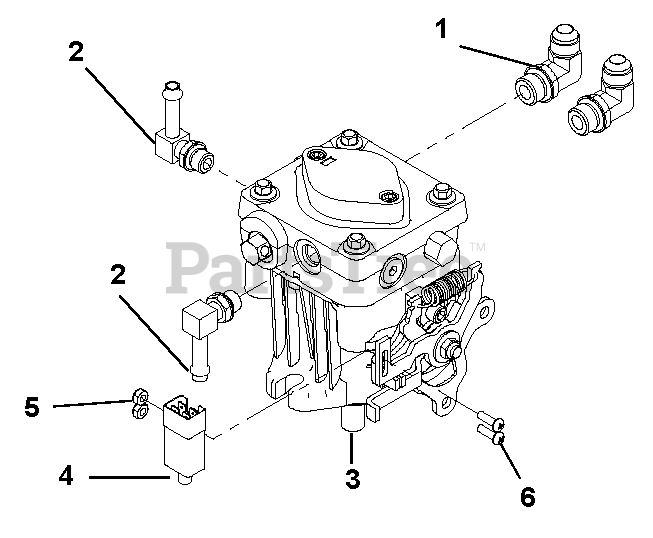

LH Pump Assembly Parts Diagram

  • Title

1

Gravely D14196

Fitting

$5.99

$

Usually ships in 4-12 days

0

2

Gravely D24028

Fitting, 90 .5625 MOR x .38 Hose

$

$

Not available

3

Gravely TCA14965

Pump, Hydraulic

$841.99

$

Usually ships in 4-12 days

0

4

Gravely 00191256

Switch, Plunger Diametral Pitch
(Superseded to 08828100)

$20.99

$

In Stock, only 1 left!

0

5

Gravely 00964013

Locknut, 10-24 Nyloc

$

$

Not available

6

Gravely 00967340

Screw, 10-24 x .625 Pan PHL MACY

$

$

Not available
