988402 (EHWKA1952S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) Handlebar/Console Assembly Parts Diagram

Pro Walk-Behind Mower

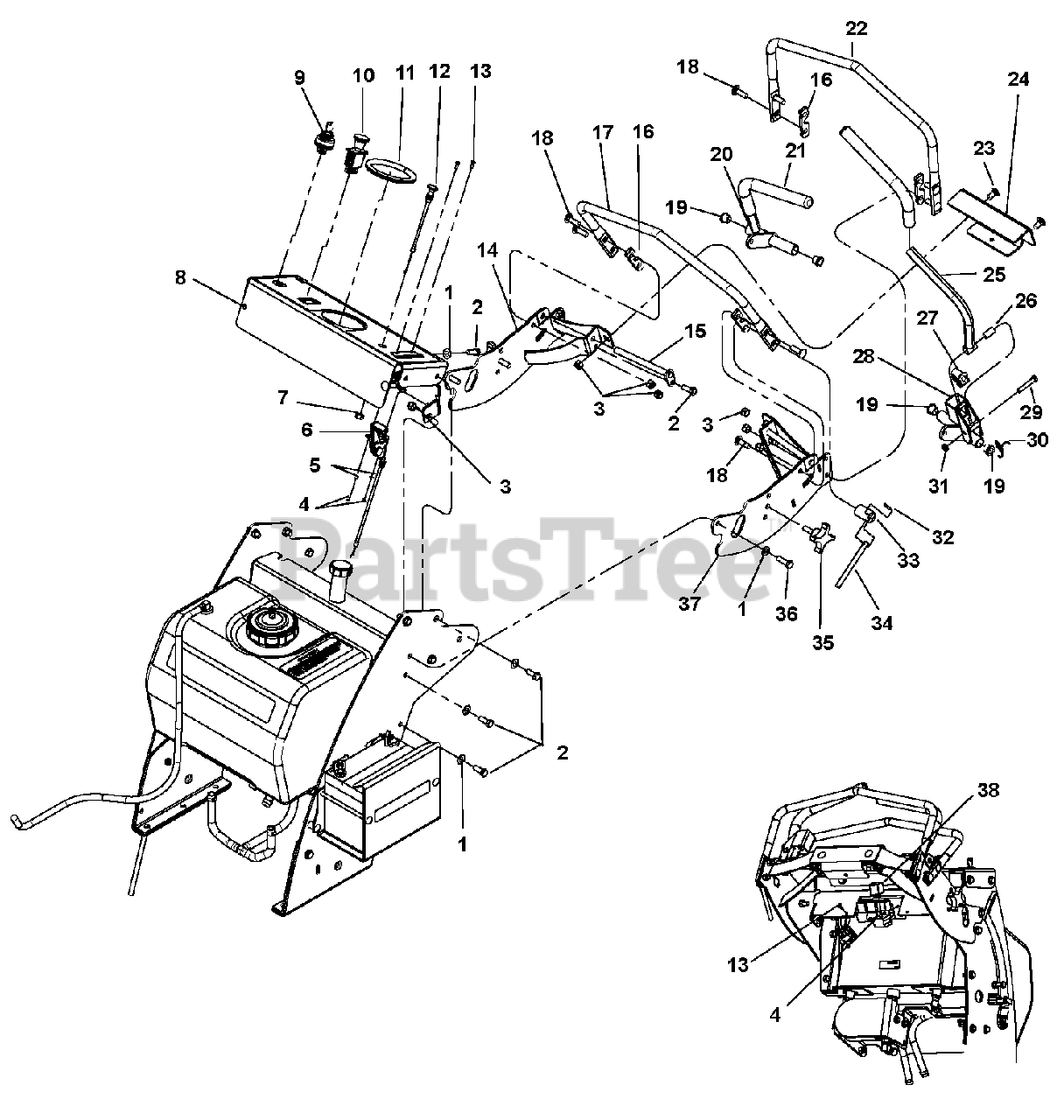

Handlebar/Console Assembly Parts Diagram

  • Title

1

Gravely 00964501

Washer, .406 x .813 x .065 Flat
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 05948700

Bolt, .38-16 x 1.00 Hex Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

3

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

4

Gravely 06509100

Nut, 8-32 Standard Hex

$

$

Not available

5

Gravely 00967038

Washer, #8 Medium Spring Lock
(Superseded to 06300112)

$

$

Not available

6

Gravely 00200413

Cable, Throttle - 49.5"
(Superseded to 06900714)

$34.99

$

In Stock, only 1 left!

0

7

Gravely 00967054

Nut, .38-24 Standard Hex (988402, 403)
(Superseded to 06522900)

Note: (988402, 403)

$2.49

$

In Stock, only 2 left!

0

8

Gravely 50521005

Console Assembly w/ Decal

$

$

Not available

9

Gravely 00180620

Switch, Key - 3 Postion (988402, 403)

Note: (988402, 403)

$35.99

$

Usually ships in 4-12 days

0

Gravely D18090

Switch, Key - 2 Position (988400)

Note: (988400)

$

$

Not available

10

Gravely 00136574

Switch, PTO Engagement

$28.99

$

In Stock, only 1 left!

0

11

Gravely 00170900

Trim, Rubber Edge 12"

$12.24

$

Usually ships in 4-12 days

0

12

Gravely 00180273

Cable, Choke 48"

$52.99

$

In Stock, only 1 left!

0

13

Gravely D24020

Screw, 8-32 x .50 Panhead Phillips

$

$

Not available

14

Gravely 03974451

Weldment, RH Handle Mount 5 Deg.

$

$

Not available

15

Gravely 00203893

Weldment, Pin and Lock

$34.99

$

Usually ships in 4-12 days

0

16

Gravely 03976751

Shim, 5 Deg. Speed Bar

$

$

Not available

17

Gravely 03730751

Handle, Support

$112.99

$

Usually ships in 4-12 days

0

18

Gravely 06224100

Bolt, .38-16 x 1.25 G5 Round Head Square Neck
(Superseded to 06200415)

$2.49

$

In Stock, only 3 left!

0

19

Gravely D18013

Bearing, Flange .500 x .625 x .500

$

$

Not available

20

Gravely 03976551

Weldment, RH Drive Lever 5 Deg

$67.99

$

Usually ships in 4-12 days

0

21

Gravely D18093

Grip, Control
(Superseded to 07500222)

$7.99

$

In Stock, only 1 left!

0

22

Gravely 03730751

Handle, Support

$112.99

$

Usually ships in 4-12 days

0

23

Gravely 06223900

Bolt-Round Head Square Neck .38-16 x .75 Grade 5
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

24

Gravely 03974651

Plate, Handle Mount Link

$

$

Not available

25

Gravely 03976651

Weldment, LH Drive Lever 5 Deg

$

$

Not available

26

Gravely D33004

Spacer, .330 x .500 x .980

$

$

Not available

27

Gravely AM103119

Switch, Seat Over Ride (N.O.)
(Superseded to 02754100)

Note: (N.O.)

$9.49

$

In Stock, Qty 20+

0

28

Gravely 03974551

Weldment, LH Handle Mount

$

$

Not available

29

Gravely 05957400

Bolt, .31-18 x 1.75 Hex Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

30

Gravely D38003

Spring, Torque 1.00 x .062

$

$

Not available

31

Gravely 00967115

Locknut, .3125-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

32

Gravely 34H60

Pin, Spring

$

$

Not available

33

Gravely D13308

Base, Lock Lever

$

$

Not available

34

Gravely D13309

Lever, Lock

$

$

Not available

35

Gravely 03820400

Knob, .38 x 1.25 - 4 Prong

$10.99

$

Usually ships in 4-12 days

0

36

Gravely 05958000

Bolt, .38-16 x 1.25 Hex Grade 5
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

37

Gravely 03974551

Weldment, LH Handle Mount 5 Deg

$

$

Not available

38

Gravely 00102770

Relay, ISO Mini Electric (988402, 403)

Note: (988402, 403)

$21.99

$

Usually ships in 4-12 days

0

39

Gravely 04039200

Harness, Wire Non Electric (988400) (NS)

Note: (988400) (NS)

$206.99

$

Usually ships in 4-12 days

0

40

Gravely 03983502

Harness, Wire, Electric (988402, 403) (NS)

Note: (988402, 403) (NS)

$

$

Not available
