988400 (EHWKA1536S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) Hydraulic Oil Tank Assembly Parts Diagram

Pro Walk-Behind Mower

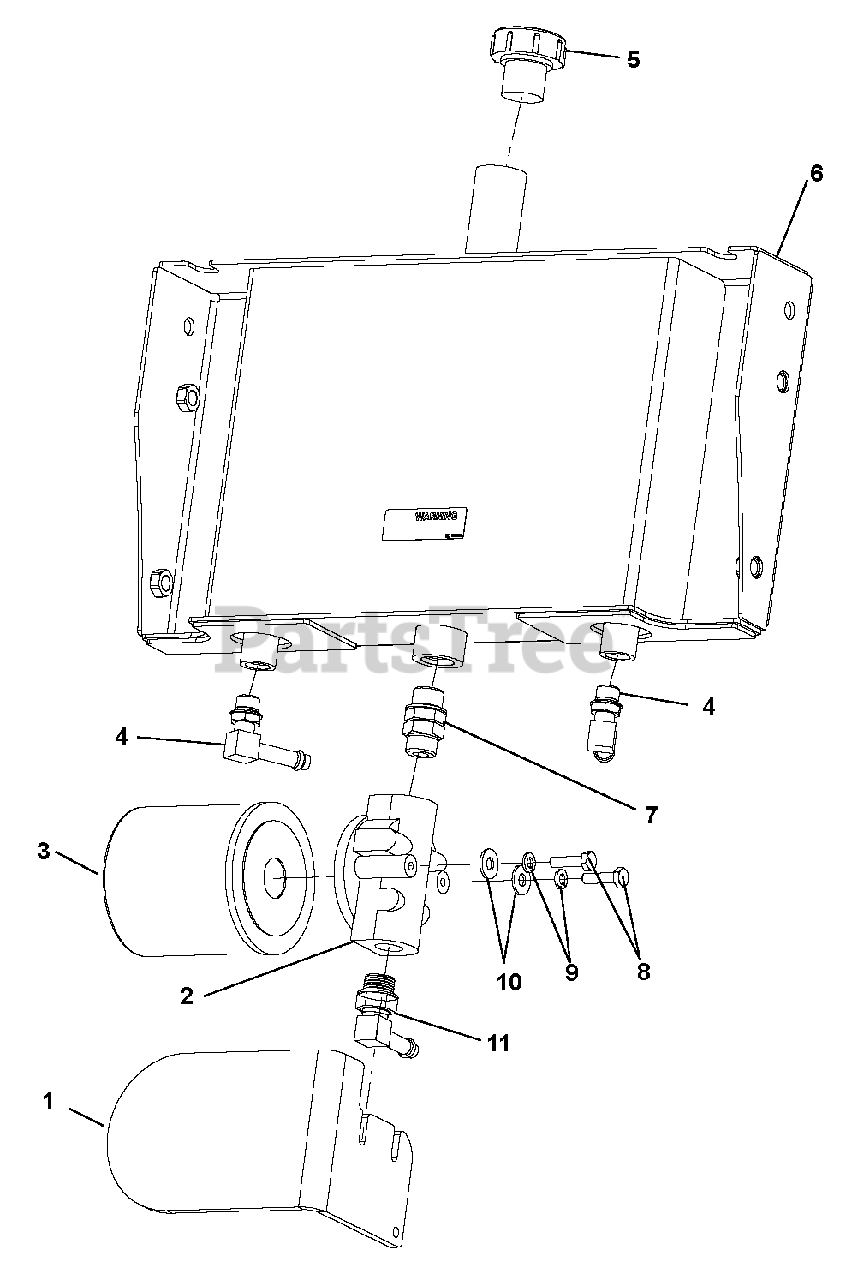

Hydraulic Oil Tank Assembly Parts Diagram

  • Title

1

Gravely 03911551

Guard, Hydraulic Filter

$

$

Not available

2

Gravely 00200463

Head, Oil Filter

$34.99

$

Usually ships in 4-12 days

0

3

Gravely GDA10137

Filter, Oil

$22.99

$

In Stock, only 3 left!

0

4

Gravely D24028

Fitting, Hose 90 Deg. .5625 MOR x .375

$

$

Not available

5

Gravely D18333

Cap, Oil Fill Breather

$24.99

$

Usually ships in 4-12 days

0

6

Gravely D35031

Weldment, Tank

$103.99

$

In Stock, only 1 left!

0

7

Gravely 07001606

Straight Union SAE 8

$14.99

$

Usually ships in 4-12 days

0

8

Gravely 05947700

Bolt .25-20 x 1.00 Hex Grade 5
(Superseded to 05901639)

$1.49

$

In Stock, Qty 9

0

9

Gravely 960600

Washer, .250 Medium Spring Lock

$

$

Not available

10

Gravely 06435800

Washer, .250 Regular Flat
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

11

Gravely 00200464

Fitting, 90 BRB-OR

$17.99

$

Usually ships in 4-12 days

0
