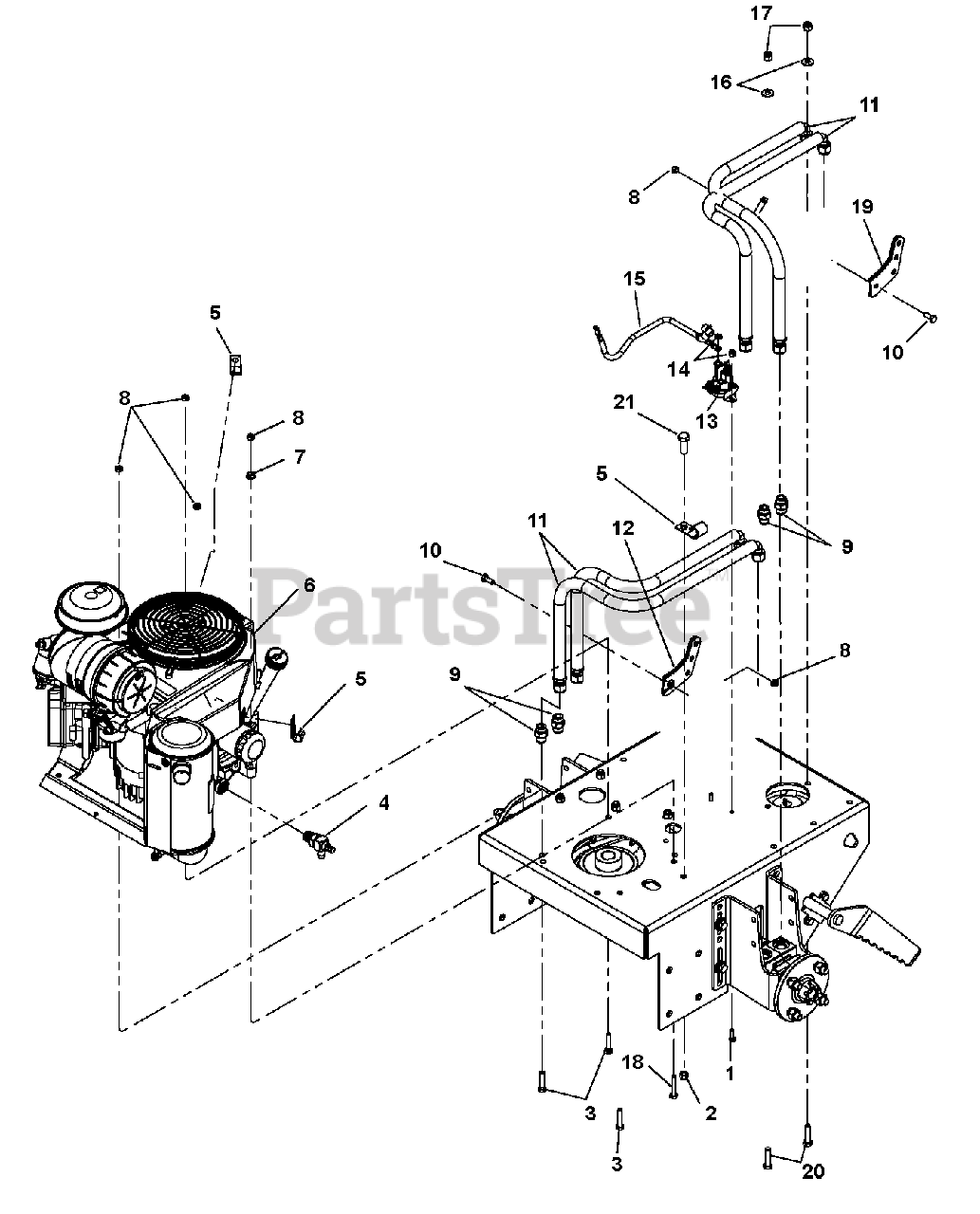

988400 (EHWKA1536S) - EverRide Pro Walk-Behind Mower (SN: 000201 & Above) Frame And Engine Assembly Parts Diagram

Pro Walk-Behind Mower

Frame And Engine Assembly Parts Diagram

  • Title

1

Gravely 05946800

Bolt, Hex .25-20 x .75 Grade 5 (988402, 403)
(Superseded to 05901716)

Note: (988402, 403)

$0.99

$

In Stock, Qty 20+

0

2

Gravely 00968087

Locknut, .38-16 Nyloc (988400)

Note: (988400)

$

$

Not available

3

Gravely 05952400

Bolt, .31-18 x 1.50 Hex Grade 5
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

4

Gravely TCA16240

Fitting, Oil Drain

$

$

Not available

5

Gravely AH89557

Pillow-Clip, .500 Insulated

$5.49

$

In Stock, only 1 left!

0

6

Gravely 00200675

Engine, Kawasaki 19HP FH580V (988402, 403)

Note: (988402, 403)

$

$

Not available

Gravely 00200342

Engine, Kawasaki 15HP Vertical (988400)

Note: (988400)

$

$

Not available

7

Gravely 00964019

Locknut, 5/16-18 WHIZ
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

8

Gravely 00967115

Locknut, 5/16-18 Nyloc
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

9

Gravely D14197

Fitting, Straight

$

$

Not available

10

Gravely 05947000

Bolt, 5/16-18 x .750 Hex Grade 5
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

11

Gravely 00201091

Hose, Hydraulic .50 x 26.50 EZFLEx

$75.99

$

Usually ships in 4-12 days

0

12

Gravely 03732751

Weldment, CSWS Hydro Pump Arm

$

$

Not available

13

Gravely 03551000

Solenoid, 12V Starter (988402, 403)

Note: (988402, 403)

$34.99

$

In Stock, Qty 15

0

14

Gravely 00964048

Locknut, .25-20 Nyloc (988402, 403)

Note: (988402, 403)

$

$

Not available

15

Gravely 00180842

Cable, 12" Starter (988402, 403)

Note: (988402, 403)

$15.99

$

In Stock, only 1 left!

0

16

Gravely 00960701

Washer, .313 Regular Flat
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

17

Gravely 00968087

Locknut, .38-16 Nyloc

$

$

Not available

18

Gravely 05957400

Bolt, .31-18 x 1.75 Hex Grade 5
(Superseded to 05901804)

$2.99

$

In Stock, Qty 8

0

19

Gravely 03754851

Weldment, CSWS Left Hand Hydro Pump Arm

$

$

Not available

20

Gravely 05957900

Bolt, .38-16 x 1.50 Hex Grade 5
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

21

Gravely 05948700

Bolt, .38-16 x 1.00 Hex Grade 5
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0
