988325 (52 HE) - Gravely Pro-Hydro 52" Walk-Behind Mower, Pistol Grip, Electric (SN: 000101 & Above) 52" Belt Covers Parts Diagram

Pro-Hydro 52" Walk-Behind Mower, Pistol Grip, Electric

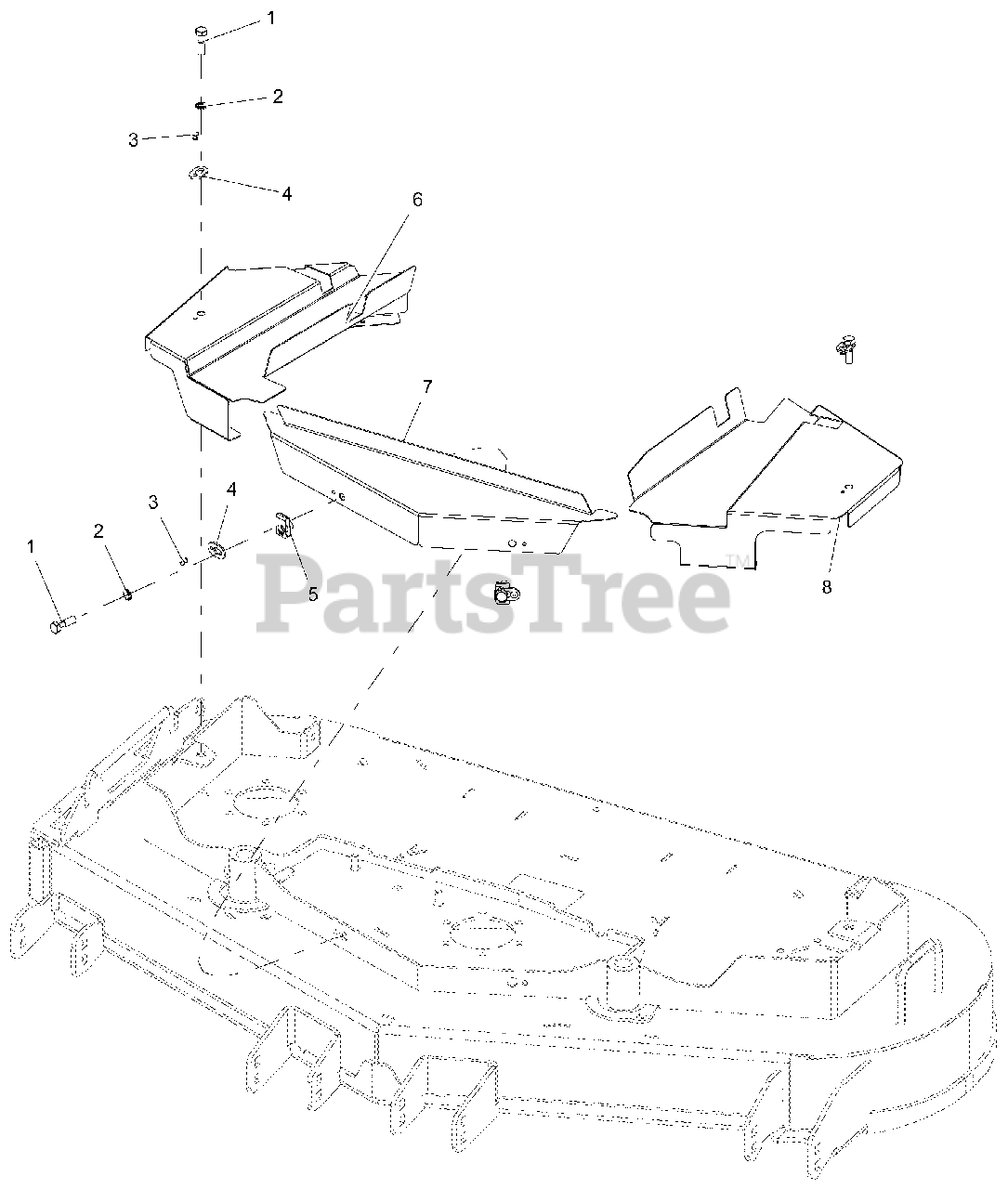

52" Belt Covers Parts Diagram

  • Title
1

Gravely 07001625

BLT, HEX 0.38-16 X 1.25 GR5 CAPTIVE

$14.99

$

Usually ships in 4-12 days

0

2

Gravely 06308700

LOCK, WSHR-EXT 0.391 X 0.628 X 0.036 YWZC

$1.99

$

Usually ships in 4-12 days

0

3

Gravely 06800028

RVT-POP .187x.250 (#64) YWZC
(Superseded to 06800140)

Note: (#64) YWZC

$0.99

$

In Stock, Qty 14

0

4

Gravely 04183000

KEEPER, BOLT

$6.49

$

Usually ships in 4-12 days

0

5

Gravely 07053300

NUT, RTNR .375-16X.37

$3.99

$

In Stock, only 4 left!

0

6

Gravely 04353053

GUARD, BELT 52" RH (CE)-RED

Note: (CE)-RED

$

$

Not available

7

Gravely 04338353

GUARD, BELT 52" FRONT (CE)-RED

Note: (CE)-RED

$

$

Not available

8

Gravely 04338553

GUARD, BELT 52" LH (CE)-RED

Note: (CE)-RED

$

$

Not available
