988321 (HR 19 P) - Ariens Walk-Behind Mower, 19hp Kawasaki, Hydro (SN: 000101 & Above) Electrical System - Hydros - Electric Start Parts Diagram

Walk-Behind Mower, 19hp Kawasaki, Hydro

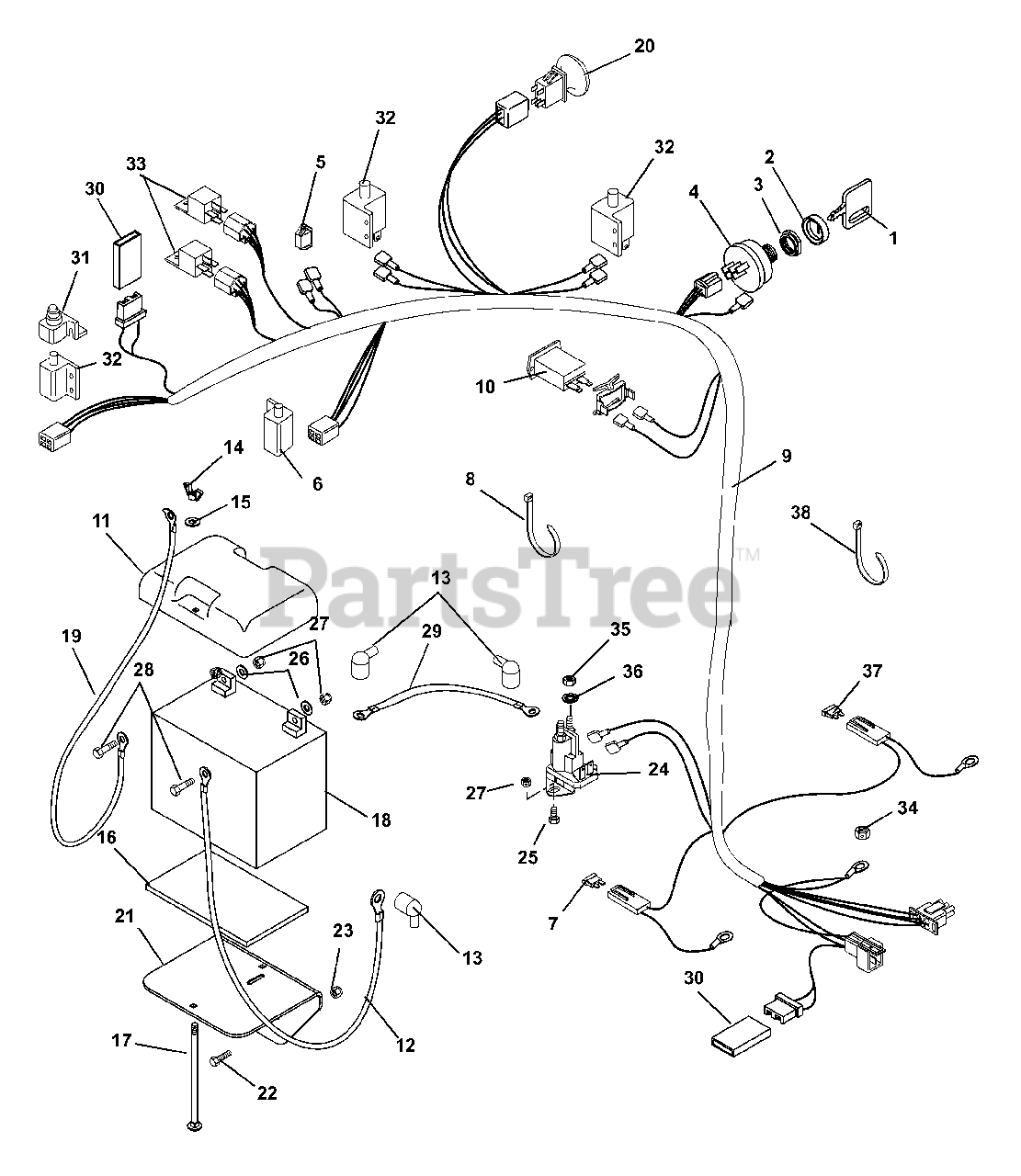

Electrical System - Hydros - Electric Start Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

Note: (045490 - Gravely Part Number)

$3.99

$

In Stock, Qty 9

0

3

Ariens 06517400

NUT- PANEL .562-24 GRECO

Note: (045489 - Gravely Part Number)

$20.99

$

In Stock, only 1 left!

0

4

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, only 1 left!

0

5

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

Note: (050673 - Gravely Part Number)

$6.99

$

In Stock, only 1 left!

0

6

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

7

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

8

Ariens 07517300

CABLE TIE LG 5-1/2

Note: (036313 - Gravely Part Number)

$

$

Not available

9

Ariens 03287700

HARNESS - WIRE HYDRO ELEC-ERGO

$

$

Not available

10

Ariens 00456600

HOUR METER - DIGITAL
(Superseded to 09497400)

$23.99

$

In Stock, only 2 left!

0

11

Ariens 04912900

COVER, BATTERY

$11.99

$

In Stock, only 2 left!

0

12

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 1 left!

0

13

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 2 left!

0

14

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 13

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 08803400

PAD,BATTERY

Note: (050417 - Gravely Part Number)

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 06226400

BLT-RDHDSQNK .25-20X7.50 GR2YZ
(Superseded to 06200424)

$4.99

$

In Stock, Qty 20+

0

18

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

19

Ariens 03288100

CABLE-NEGATIVE BATTERY 24.00"

$17.99

$

In Stock, only 2 left!

0

20

Ariens 01545600

SWITCH, CLUTCH

$25.99

$

In Stock, Qty 20+

0

21

Ariens 04924451

WELDMENT, BATTERY TRAY

$90.99

$

Usually ships in 4-12 days

0

22

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

24

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

25

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

29

Ariens 00145900

STARTER CABLE 6.75"

Note: (042696 - Gravely Part Number)

$13.99

$

In Stock, only 1 left!

0

30

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 2 left!

0

31

Ariens 07534400

BOOT, RUBBER

$

$

Not available

32

Ariens 08828100

SWITCH,INTERLOCK

Note: (046219 - Gravely Part Number)

$20.99

$

In Stock, only 1 left!

0

33

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

34

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

36

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

37

Ariens 00580600

FUSE 20AMP

$5.99

$

In Stock, Qty 12

0

38

Ariens 04003800

TIE WRAP

$

$

Not available
