988320 (HE1748FLPCE) - Ariens 48" Walk-Behind Mower, 17hp Kawasaki, Hydro (SN: 000101 & Above) Electrical System - Electric Start Parts Diagram

48" Walk-Behind Mower, 17hp Kawasaki, Hydro

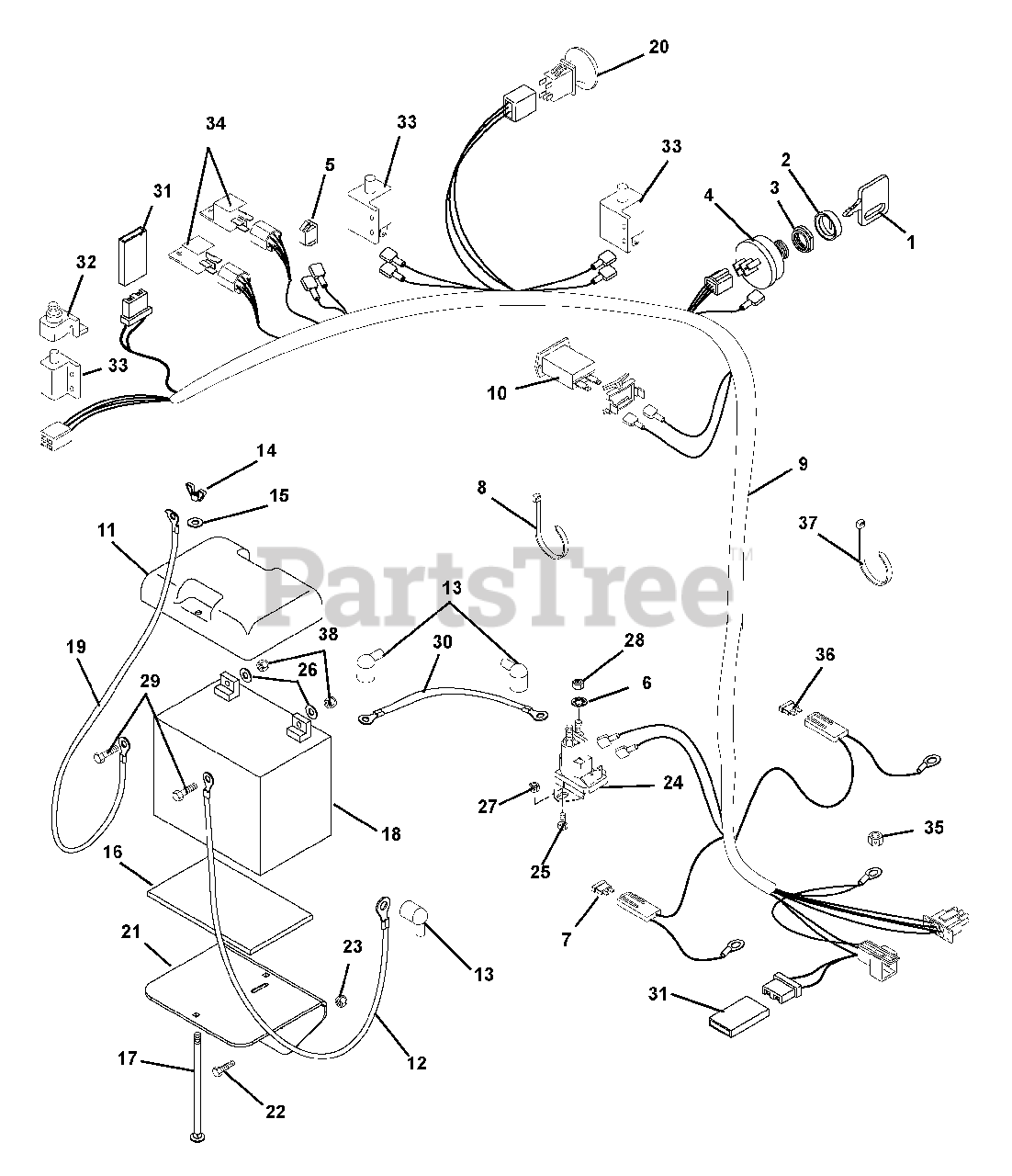

Electrical System - Electric Start Parts Diagram

  • Title

1

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

2

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

4

Ariens 03602300

KEY SWITCH

$26.99

$

Usually ships in 4-12 days

0

5

Ariens 08841200

LIGHT,INDICATOR
(Superseded to 05128700)

$6.99

$

In Stock, only 1 left!

0

6

Ariens 06310500

WSHR-LOCK INT .31 YWZC

$0.99

$

In Stock, only 3 left!

0

7

Ariens 09351100

FUSE-25 AMP ATC TYPE
(Superseded to 08961800)

$3.99

$

In Stock, only 4 left!

0

8

Ariens 07517300

CABLE TIE LG 5-1/2

$

$

Not available

9

Ariens 04937600

WIRE HARNESS-ERGO HYDRO ELEC.
(Superseded to 03287700)

$

$

Not available

10

Ariens 04935700

HOURMETER-QUARTZ 80VDCMAX
(Superseded to 59208200)

$59.99

$

In Stock, only 1 left!

0

11

Ariens 04912900

COVER, BATTERY

$11.99

$

Usually ships in 4-12 days

0

12

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

13

Ariens 07533200

BOOT, EYELET TERMINAL

$3.49

$

In Stock, only 3 left!

0

14

Ariens 06537500

NUT-LK WING .250-20 YWZC
(Superseded to 06500805)

$4.99

$

In Stock, Qty 19

0

15

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 08803400

PAD,BATTERY

$6.99

$

Usually ships in 4-12 days

0

17

Ariens 06220400

@BLT-RDHDSQNK .25-20X7.00 G2YZ
(Superseded to 06200229)

$4.49

$

In Stock, only 2 left!

0

18

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

19

Ariens 08940600

CABLE, NEGATIVE BATTERY 24.00
(Superseded to 03288100)

$17.99

$

In Stock, only 2 left!

0

20

Ariens 04940800

SWITCH - PTO - NMIR

$

$

Not available

21

Ariens 04924451

WELDMENT, BATTERY TRAY

$90.99

$

Usually ships in 4-12 days

0

22

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 06535800

@NUT-LK-NYL .38-16 YWZC
(Superseded to 06500831)

$2.49

$

In Stock, only 2 left!

0

24

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

25

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

29

Ariens 05946800

@BLT-HEX .25-20X.75 GR5 YWZC
(Superseded to 05901716)

$0.99

$

In Stock, Qty 20+

0

30

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 1 left!

0

31

Ariens 09293500

DIODE, CONNECTOR SHELL
(Superseded to 09293501)

$11.99

$

In Stock, only 3 left!

0

32

Ariens 07534400

BOOT, RUBBER

$

$

Not available

33

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

34

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

35

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 00580600

FUSE 20AMP

$5.99

$

In Stock, Qty 12

0

37

Ariens 04003800

TIE WRAP

$

$

Not available

38

Ariens 06531000

@NUT-LK-NYL .250-20 YWZC
(Superseded to 06500832)

$4.99

$

Usually ships in 4-12 days

0
