988320 (HE1748FLPCE) - Ariens 48" Walk-Behind Mower, 17hp Kawasaki, Hydro (SN: 000101 & Above) Discharge Chute And Baffles - 48" Parts Diagram

48" Walk-Behind Mower, 17hp Kawasaki, Hydro

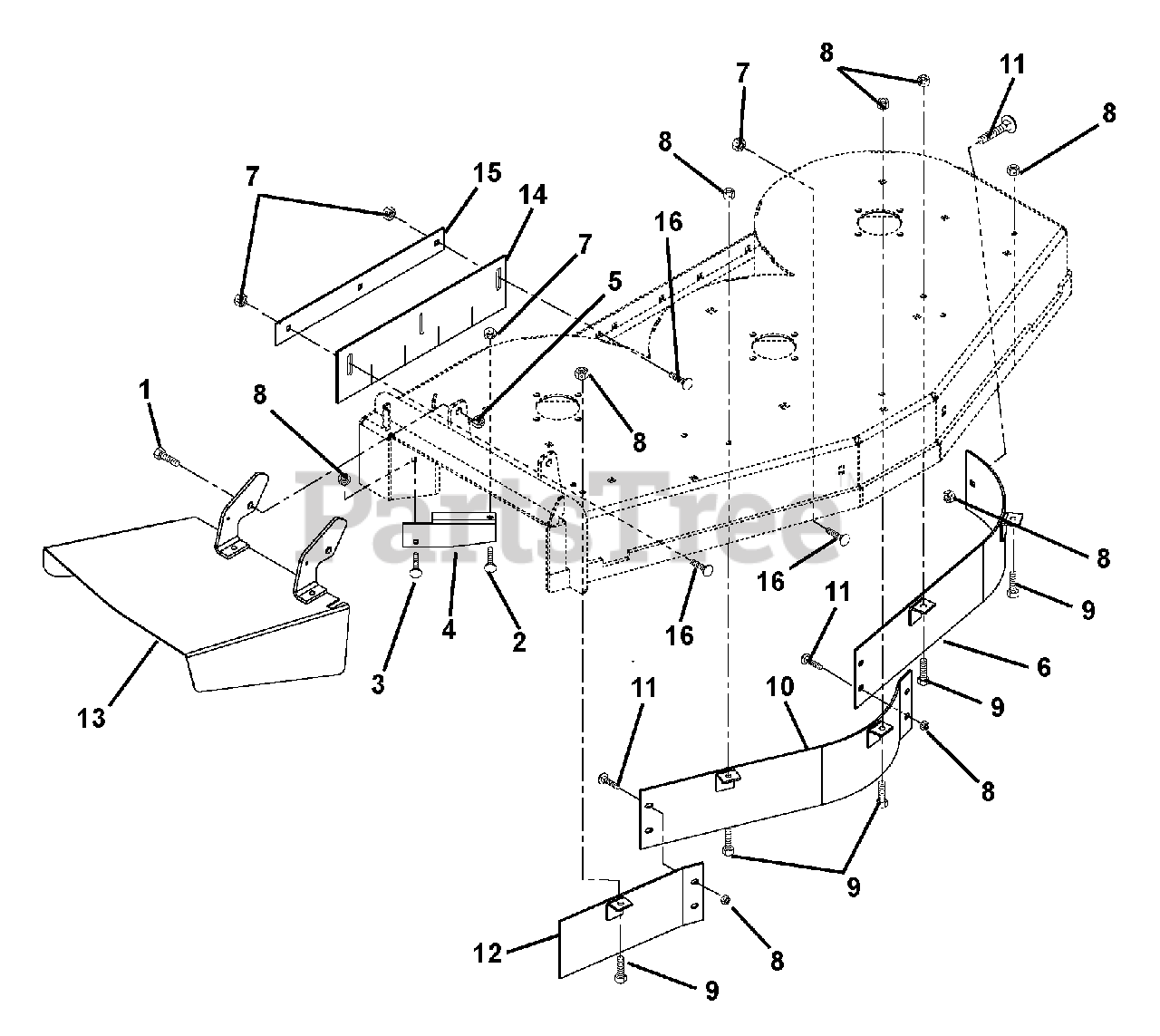

Discharge Chute And Baffles - 48" Parts Diagram

  • Title

1

Ariens 05958900

@BLT-HEX .50-13X1.25 GR5 YWZC
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

2

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

3

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

4

Ariens 04939851

DEFLECTOR - 44"/48"
(Superseded to 04939853)

$58.99

$

Usually ships in 4-12 days

0

5

Ariens 06540600

@NUT-LK-NYL .50-13 YWZC
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 04918951

BAFFLE - LEFT FRONT - 48"
(Superseded to 04918953)

$75.99

$

Usually ships in 4-12 days

0

7

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 04919051

BAFFLE - CENTER FRONT - 48"
(Superseded to 04919053)

$60.99

$

Usually ships in 4-12 days

0

11

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 04919651

BAFFLE - RIGHT FRONT - 48"
(Superseded to 04919653)

$34.99

$

Usually ships in 4-12 days

0

13

Ariens 04917853

WMT - DISCHARGE CHUTE - PRO

$187.99

$

Usually ships in 4-12 days

0

14

Ariens 04919300

SKIRT- RUBBER

$39.99

$

Usually ships in 4-12 days

0

15

Ariens 04919251

STRIP - STRIPER MOUNT

$

$

Not available

16

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0
