988320 (HE1748FLPCE) - Ariens 48" Walk-Behind Mower, 17hp Kawasaki, Hydro (SN: 000101 & Above) Deck Rollers - 48" Parts Diagram

48" Walk-Behind Mower, 17hp Kawasaki, Hydro

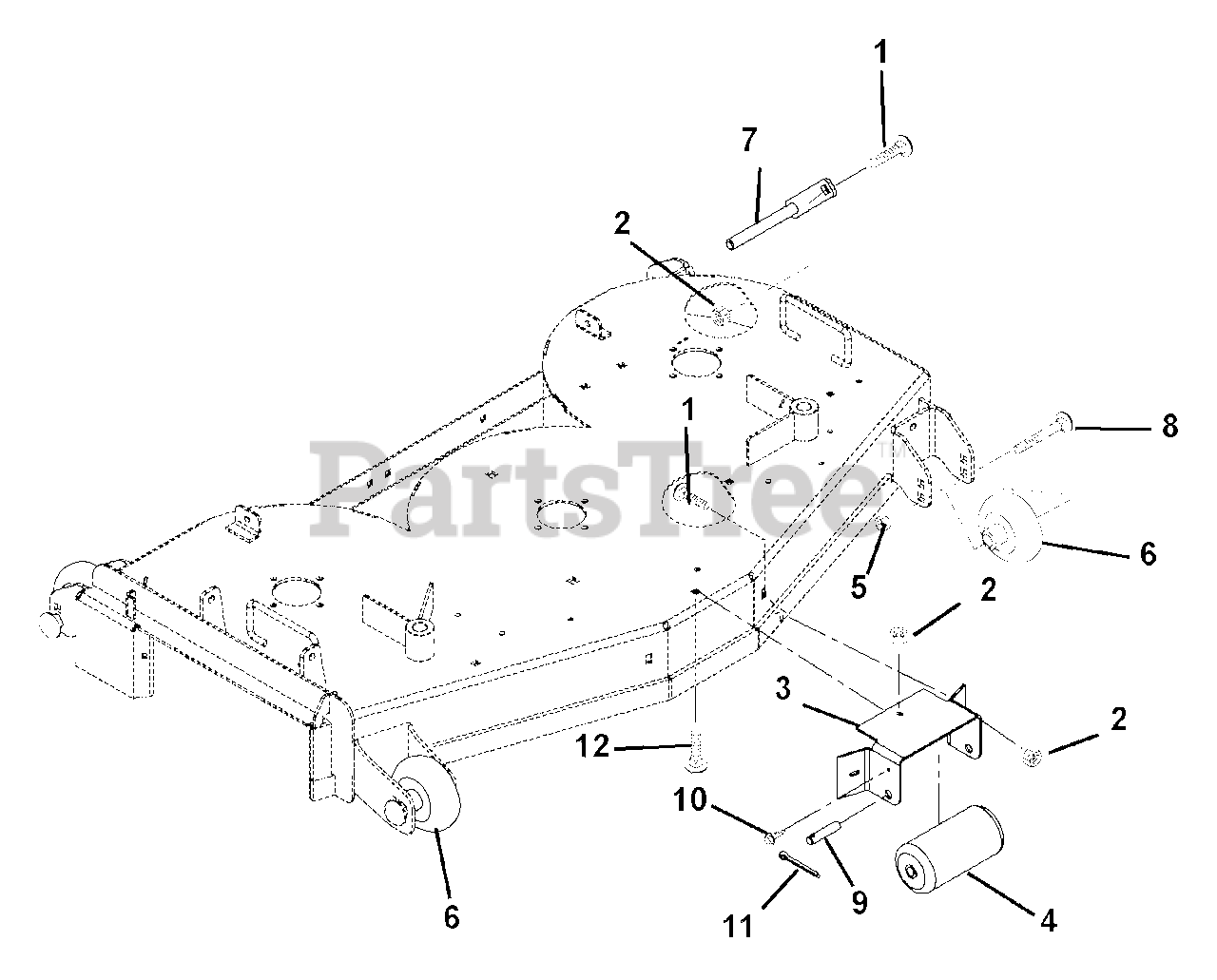

Deck Rollers - 48" Parts Diagram

  • Title
1

Ariens 06223600

@BLT-RDHDSQNK .38-16X1.00 G5YZ
(Superseded to 06200313)

$2.49

$

In Stock, Qty 10

0

2

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 04920853

BRACKET - ANTI-SCALP ROLLER

$125.99

$

Usually ships in 4-12 days

0

4

$47.99

$

In Stock, only 1 left!

0

5

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 09253700

WHEEL, 3X5

$14.99

$

In Stock, Qty 6

0

7

Ariens 04921400

WMT- WHEEL RETAINER

$

$

Not available

8

Ariens 06226500

BLT-RDHDSQNK .50-13X4.50 G2 YZ

$3.99

$

Usually ships in 4-12 days

0

$38.99

$

In Stock, only 1 left!

0

10

Ariens 07412000

@SCR-TAP .25-20X.50 HWH TR YWZ
(Superseded to 07400122)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06713100

@PIN-CTR .25X2.00 YWZC
(Superseded to 06700213)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06223900

@BLT-RDHDSQNK .38-16X.75 G5YZ
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0
